• Model NO.：HX3012
• Type：CNC
• Power Supply：USA Hyperrtherrm ,China Huayuan
• Control System：Startfire,Flmc-F2300b
• Nesting Software：Fastcam
• Design Software：Auto CAD,Caxa
• File Transfer Mode：USB Interface
• Input Voltage：3phase, 380V
• Automatic Torch Height Controller：China F1621
• Transport Package：Plywood Case After Packed by Wrapping Film
• Specification：3000*12000mm
• Trademark：HuaXia
• Origin：China
• HS Code：8456401000
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HX3012 Type CNC Power Supply USA Hyperrtherrm /China Huayuan Control System Startfire/Flmc-F2300b Nesting Software Fastcam Design Software Auto CAD/Caxa File Transfer Mode USB Interface Input Voltage 3phase, 380V Automatic Torch Height Controller China F1621 Transport Package Plywood Case After Packed by Wrapping Film Specification 3000*12000mm Trademark HuaXia Origin China HS Code 8456401000 Production Capacity 150 Sets/Month

Product Description

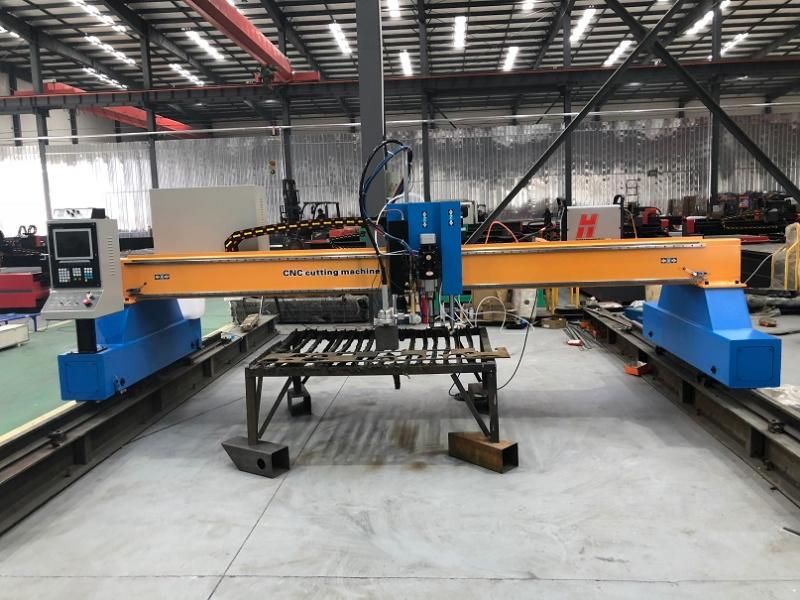

gantry type plasma cutting machine flame cutting


Working process:
1. Design drawings you want to cut by AutoCAD,CAXA etc. software , output DXF/DWG format files
2.Input DXF/DWG files to FASTCAM Nesting software(we supply)
3.After nesting , output TXT/NC/G.Code files to U Disk
4.Plug U Disk to Machine Controller , and copy TXT/NC/G.Code files to controller
5. Adjust simple paratems like cutting speed , ARC,then Start cutting

Main Parameter:
working area :3*12m
Rail length:14m
Controller:STARFIRE/FLMC-F2300B
Automatic torch height controller:F1621
Nesting software:Australia FASTCAM

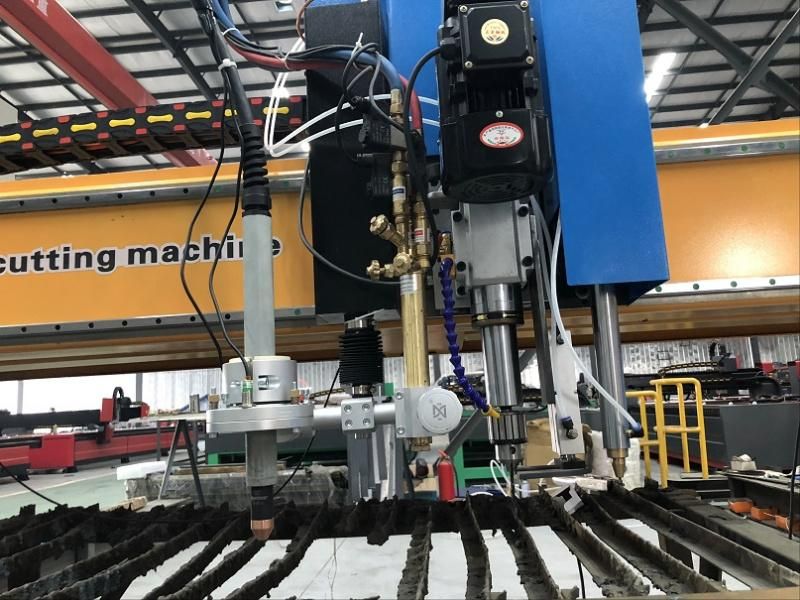

Plasma cutting and Flame cutting together
Electrical parts :Schneider
Design Software:Auto Cad,CAXA
Input voltage:3 phase 380V for power source,single phase,220V for machine
Output current  :China LGK or USA Hypertherm
Gross Power:50KW
Transmission model:    X,Y reducer,z ball screw
Driving system:Dual step motor , Japan servo motor for choose
Positioning speed   :37m/min
Cutting thickness:Plasma cutting :35mm
Gas cutting Max:300mm
Repeat positioning accuracy    ±0.02mm
Process precision    ±0.3mm
Main Parts:


Gantry type plasma cutting machine most for thick and large size cutting sheet.
If your cutting sheet more than 25mm, size more than 2*6m, recommend Gantry type .
Plasma and flame cutting together is the best choose . flame cutting max can be 300mm.

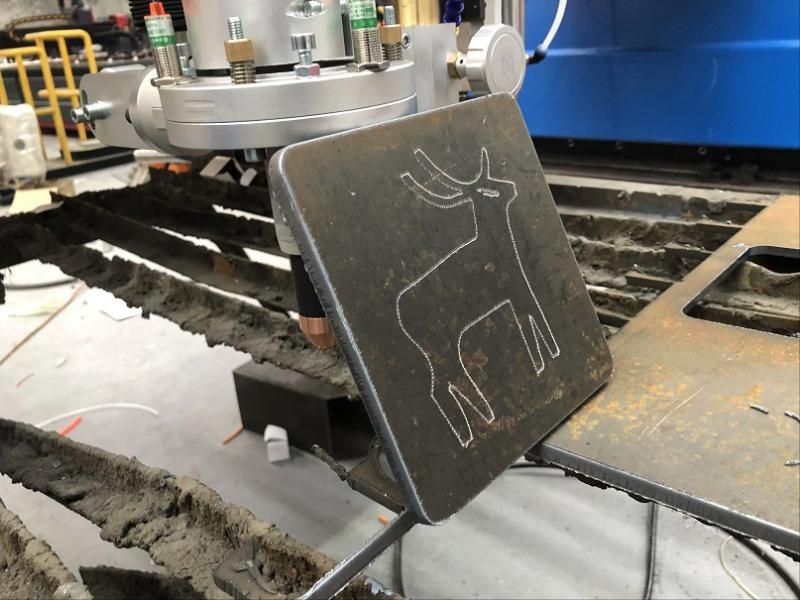

Except plasma & flae cutting , also can add drilling , marking , pipe cutting  etc.







FAQ:

1.how i can choose a suitable machine?
Tell us the max working area,the material and its thickness you want to cut,we can help choose the best suitable machine

2.Are you the manufacture?

yes, we are manufacturer, so you can get the factory price directly.don't need pay some extra agent price .


3.Can we visit your factory?
yes, of course , welcome you visit our factory and check our machine qualtiy on spot. after you confirm the coming time , tell me in advance , then we will go to air port or train station to pick you up on time.
And one professional engineer will together with you in the factory , any question will be solved on spot at first time.
4.Payment terms?
T/T,L/C,Western Union,Paypal, ect.


5.What's the delivery cost & time?

20 working days after receive the prepayment.Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.

Service :

Pre-sale:
(1)regarding your demands , the best suitable machine will be recommend you . the customized machine also support
(2)regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A,FORM-B,FORM-F,original certificate signed by Embassy.etc.
(3)all the machine will be tested before delivery, and we will take the video and pictures to you.when you receive it , it can work directly.

After-sales
(1)we will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2)All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can't solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.

Guarantee:
One year for whole machine , any parts except consumables broken regarding machine quality within one year,We will send you the parts for free.
All the service is for machine whole life.
