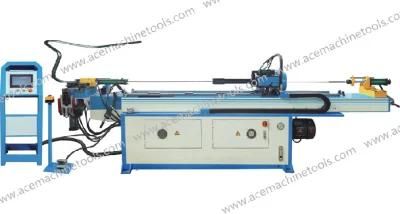

Auto Single-Head Bending Machine (GM-SB 18/28/38/42/50/63/76/89...)
ACE Machine Tools Co., Ltd.- Automation：Automatic
- Type for Cutting Machine：Hydraulic Cutting Machine
- Application：Machinery & Hardware
- Transport Package：Sea Worthy Packing
- Origin：China
Base Info
- Model NO.：GM-SB 18,28,38,42,50,63,76,89...
Description
| Main Technical Parameter | Unit | 18NCBA | 28NCBA | 38NCBA | 42NCBA | 50NCBA | 63NCBA | 76NCBA | 89NCBA |
| Max. Bending Capacity | mm | 18×2 | 28×2 | 38×2 | 42×2.5 | 50×2 | 63×4 | 76×4 | 89×8 |
| Bending Radius Region | mm | 20-150 | 20-180 | 20-200 | 20-250 | 20-250 | 25-350 | 30-350 | 40-400 |
| Bending Angle Region | Degree | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 |
| Effective Length Over Mandrel | mm | 2000 | 2000 | 2400 | 2400 | 2400 | 2600 | 2600 | 3000 |
| Oil Pressure System Motor | kw | 2.2 | 2.2 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 |
| Max. Pressure | kg/cm | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
| Machine Dimension | mm | 3500×550×1300 | 3800×650×1300 | 4000×700×1300 | 4000×700×1300 | 4000×800×1300 | 5000×1200×1350 | 5000×1200×1350 | 5500×1350×1200 |
| Machine Weight | kg | 1300 | 1500 | 2000 | 2200 | 2200 | 3000 | 3500 | 4800 |
