• Model NO.：YGW Series
• Transport Package：Iron Shelf and Plywood
• Specification：size is different for different model
• Trademark：Hengyisheng
• Origin：Henan, China
• Production Capacity：5000pieces,Year

Basic Info.

Model NO. YGW Series Transport Package Iron Shelf and Plywood Specification size is different for different model Trademark Hengyisheng Origin Henan, China Production Capacity 5000pieces/Year

Product Description

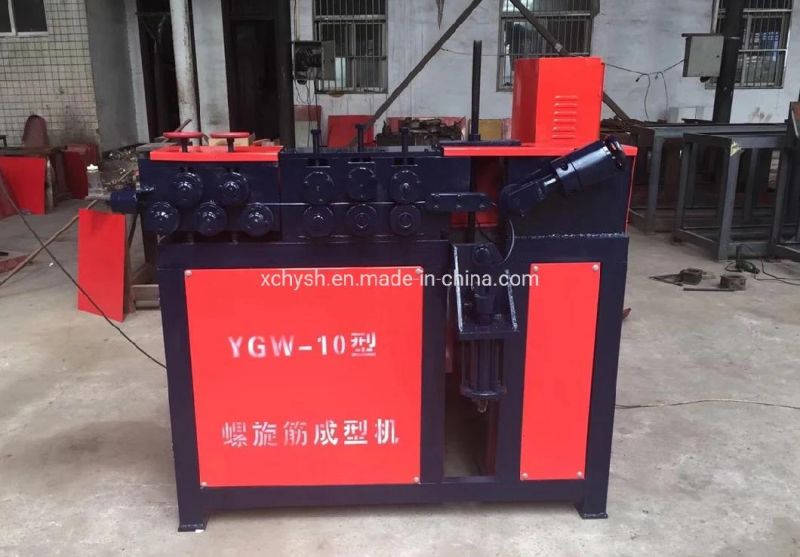

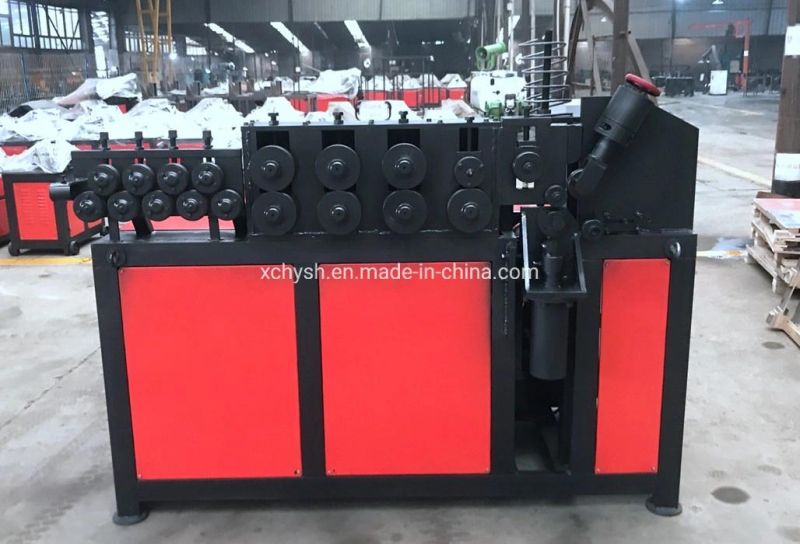

                 CNC Spiral Rebar Forming Machine, Spring Rebar Making Machine For Rebar

Brief Introduction:
YGW-10/12/16/22 hydraulic and CNC rebar spiral forming machine, special for making steel bar spirals, can be used for bending plain round bar and deformed bar from dia.4mm to dia.22mm,Hydraulic system with CNC operation, good performance and reliable quality.

Model	YGW-10	YGW-12	YGW-16	YGW-22
Bending Diameter	6-10mm	8-12mm	10-16mm	16-22mm
Spiral ring diameter	100mm-300mm	120mm-350mm	150mm-500mm	200mm-500mm
Error Range	±0.50mm	±0.50mm	±0.50mm	±0.50mm
Bending speed(m/min)	20m/min	15m/min	12m/min	10m/min
Motor Power	5.5KW	7.5KW	11KW	15KW
Machine Size(mm)	1500*1000*1300	1700*1100*1300	2000*1100*1400	2400*1500*1600
Machine weight	850kg	980kg	1200kg	1800kg

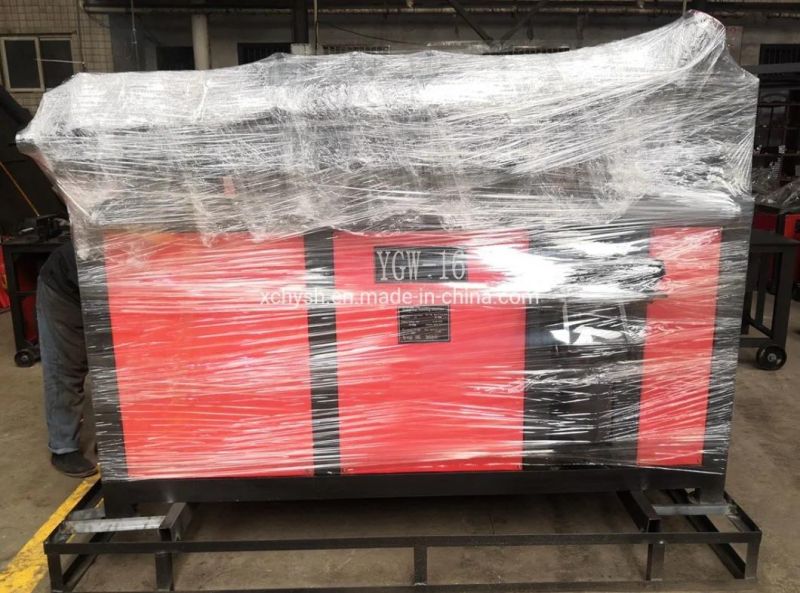

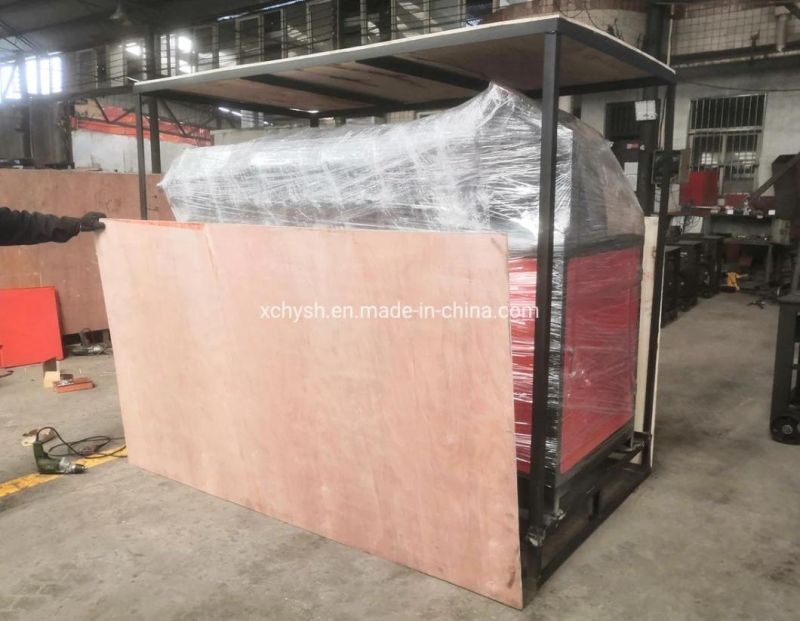

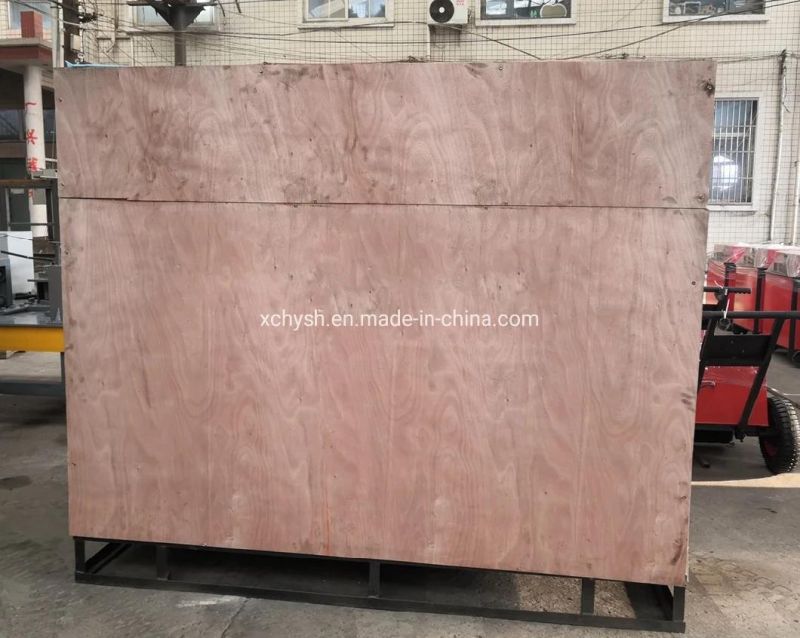

Packing & Delivery

Machine Features:
1). The spiral making machine is designed by our own, adopt CNC operation system, easy to operate, saves time and  provide efficiency.
2). The key part of the machine adopts imported components, make sure the machine working life
3). Using encoder to measure length, positioning accurately, small error
4). With the features of work stable, quickly speed, exactly ring size
5). This machine is box -type structure, hydraulic transmission parts are flexible
6). Control box has fast feeding, automatic cutting, manual cutting, automatic stopping, restart and so on.

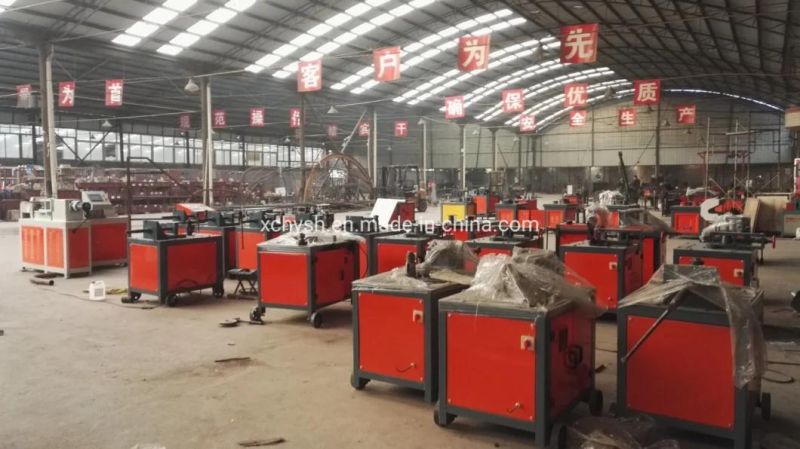

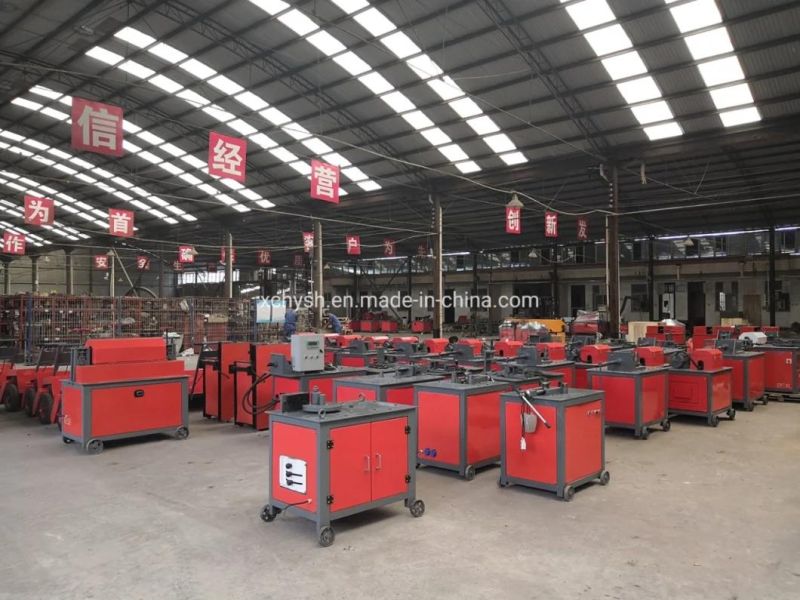

Our factory
