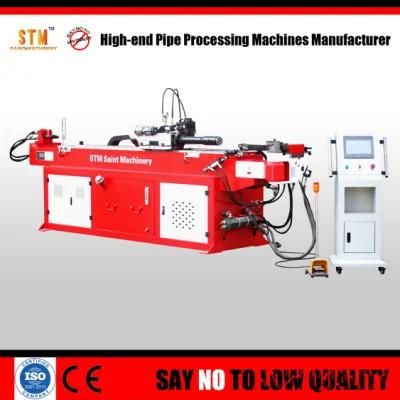

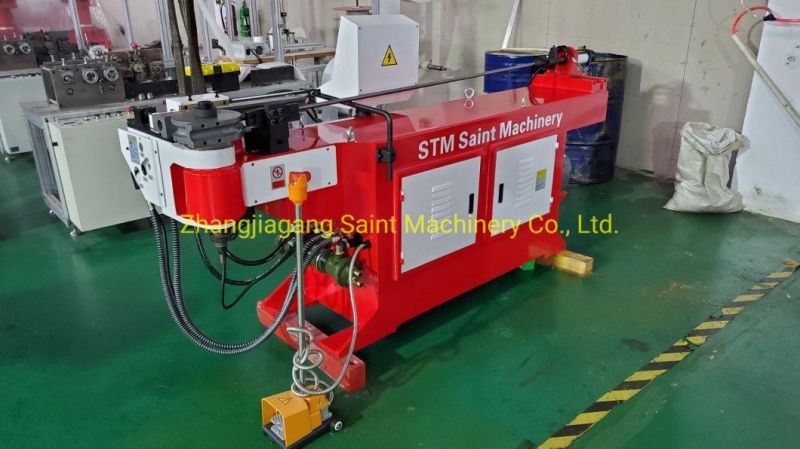

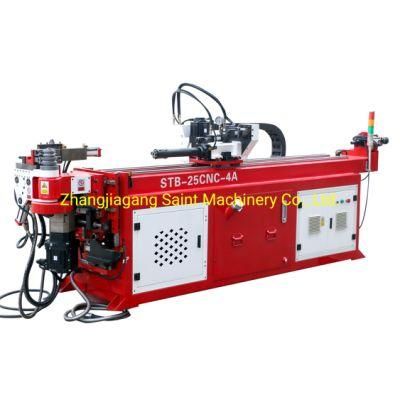

STB-50nc Hydraulic Nc Control Pipe Bending Machine
Zhangjiagang Saint Machinery Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：1-year
- Condition：New
- Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation：Automatic
- Suitable for：Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：STB-50NC
- Type：Pipe and Tube Bending Machine
- Bend：Hydraulic
- Tool Hardening：50HRC
- Bend Speed：2 Second,Bend
- Transport Package：Plywood Case
- Specification：LWH: 3000x1000x1300mm, GW: 1150kg
- Trademark：STM
- Origin：China
- HS Code：8462219000
- Production Capacity：500
Description
Basic Info.
Model NO. STB-50NC Type Pipe and Tube Bending Machine Bend Hydraulic Tool Hardening 50HRC Bend Speed 2 Second/Bend Transport Package Plywood Case Specification LWH: 3000x1000x1300mm, GW: 1150kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500Product Description
The NC series tube benders (Pipe bending) equipped with NC control unit. It combines easy-to-use operation with high bending accuracy and cost effectiveness. It is the practical semi-automatic solution for small to medium productions.1.Reasonable design and simple style, provides the best space for bending.
2.Numerical control, convenient operation make the settings flexible.
3.Using the encoder ensures the bending angle accurate and stable.
4.Multiple processing models stored for different processing programs switched flexibly
5.Automatically Counting and power failure memory function
6.Hydraulic cooling system ensures the equipment long-time work stably under the high temperature
7.The main shaft is specially heat treated.
8.All parts are tested and assembled with strict quality control to meet the specification of ISO 9001 standard.

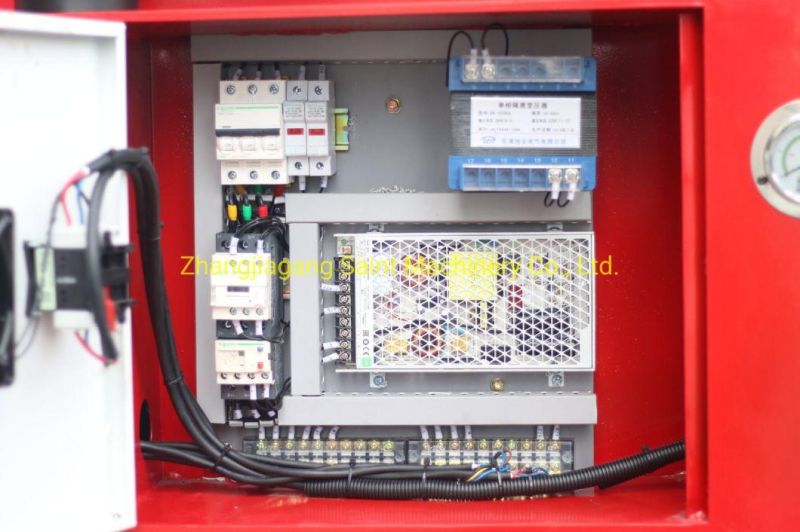

9.The machine adopting solenoid valve and integrated circuit to control individual bending motion separately, which can be extend the life of the hydraulic parts.
10.Suitable for various materials such as steel, stainless, aluminum and copper.

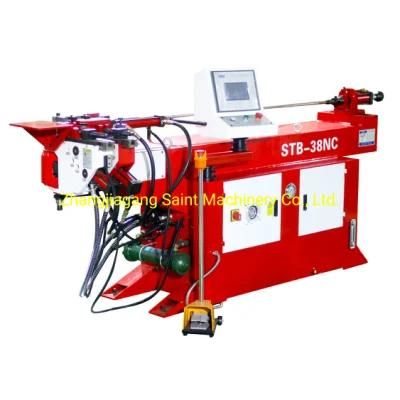

| Technical parameters | STB-38NC | STB-50NC |
|---|---|---|
| Max bending capability | φ38×2mm | φ50×2.5mm |
| Bending radius | 25~180mm | 35~220mm |
| Min bending radius | R≥1.5D | R≥1.5D |
| Bending angle | 0~190° | 0~190° |
| Valid mandrel bar | 0~1800mm | 0~2200mm |
| Bending speed | 65°/sec | 45°/sec |
| Bending accuracy | ±0.15° | ±0.15° |
| Main motor power | 4Kw | 5.5Kw |
| System hydraulic pressure | 12MPa | 12MPa |
| Size | 2700×900×1250mm | 3000×1000×1300mm |
| Weight | About 950kg | About 1150kg |
