Semi-Automatic Stainless Steel Pipe Cutting Machine
Zhejiang Wellnit Mechanical Technology Co., Ltd.- Waterproof Rating：IPX-6
- Warranty：1-year
- Certification：CE, ISO 9001:2000
- Condition：New
- Control：Automatic
- Application：Metal
Base Info
- Power Source：Hydraulic
- Layout：Horizontal
- Material：Metal Pipe
- Working Range：508-1830mm
- Thickness：up to 110mm
- Bevel Angle：No Limited
- Speed：10r,Min
- Operation Type：Hydraulic Power Pack
- Industry：Pipeline
- Transport Package：Wooden Box
- Specification：1660*1660*350mm
- Trademark：Wellnit
- Origin：Zhejiang China
- HS Code：8461909000
- Production Capacity：1000PCS,Person
Description
DrivenSpecification Working Range(ID-OD) Wall Thickness Rotation Speed Millimeter Inch Normal Heavy-Duty Electric
(OCE)
Pneumatic
(OCP)
Hydraulic
(OCH)
89 25-89 1"-3" <=30 - 42r/min 159 50-159 2"-5" - 20r/min 168 50-168 2"-6" - 18r/min 230 80-230 3"-8" - 15r/min 275 125-275 5"-10" - 14r/min 305 150-305 6"-10" <=110 13r/min 325 168-325 6"-12" 13r/min 377 219-377 8"-14" 12r/min 426 273-426 10"-16" 12r/min 457 300-457 12"-18" 12r/min 508 355-508 14"-20" 12r/min 560 400-560 16"-22" 12r/min 610 457-610 18"-24" 11r/min 630 480-630 20"-24" 11r/min 660 508-660 20"-26" 11r/min 715 560-715 22"-28" 11r/min 762 600-762 24"-30" 11r/min 830 660-813 26"-32" 10r/min 914 762-914 30"-36" 10r/min 1066 914-1066 36"-42" 10r/min 1230 1066-1230 42"-48" 10r/min 1430 1230-1430 48"-56" 8r/min

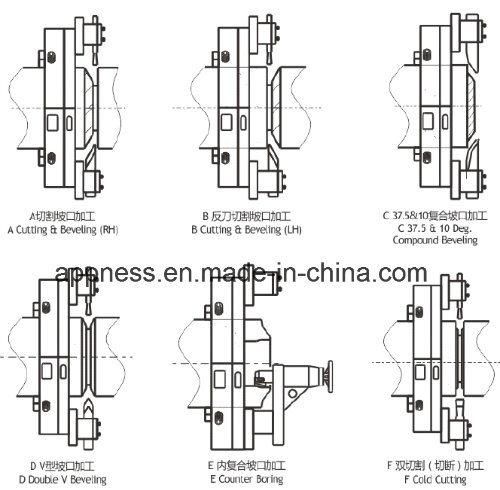

Processing Schematic
Axial & radial clearance
We can design and manufacture according to customer's requirement
Machine body structure and material:
1. Standard Model: Alloy steel with ionic nitriding treatment, the weight is a bit heavy but solid and durable;
2. Light Model: Aerospace grade aluminum alloy. Light weight and suitable for high-altitude operation.
Order Guide
Before you place order to us, please let us know the following information:
(OCE)
Pneumatic
(OCP)
Hydraulic
(OCH)
Processing Schematic
Axial & radial clearance
We can design and manufacture according to customer's requirement
Machine body structure and material:
1. Standard Model: Alloy steel with ionic nitriding treatment, the weight is a bit heavy but solid and durable;
2. Light Model: Aerospace grade aluminum alloy. Light weight and suitable for high-altitude operation.
Order Guide
Before you place order to us, please let us know the following information:
- Choose the right Model
- Confirm your electric power supply ( Voltage, frequency and phase)
- Confirm the beveling angel required
- Confirm the welding joint required (U, V, Double V or Compound preparation)
- Advise your pipe material ( Carbon steel, stainless steel or others)
- Other special demands about machine
- The spare parts needed
- Advise pipe wall thickness (Important)
