• Model NO.：BR1
• Type：Cnc Bending Machine
• Name：Automatic Steel Rule Bender Bending Machine for Di
• Color：White, Grey, Blue or Customized
• Weight：600kg
• Special Function：Special for Label Rule
• The Max Bending Angle：90 Degree
• The Precision After Bending：+-0.05mm
• The Planeness：0.25mm
• Key Word：Die Cutting Auto Bending Machine
• Transport Package：Wooden Box
• Specification：2300*1350*1850
• Trademark：YT
• Origin：China
• HS Code：8462219000
• Production Capacity：1000set,Year

Basic Info.

Model NO. BR1 Type Cnc Bending Machine Name Automatic Steel Rule Bender Bending Machine for Di Color White, Grey, Blue or Customized Weight 600kg Special Function Special for Label Rule The Max Bending Angle 90 Degree The Precision After Bending +-0.05mm The Planeness 0.25mm Key Word Die Cutting Auto Bending Machine Transport Package Wooden Box Specification 2300*1350*1850 Trademark YT Origin China HS Code 8462219000 Production Capacity 1000set/Year

Product Description

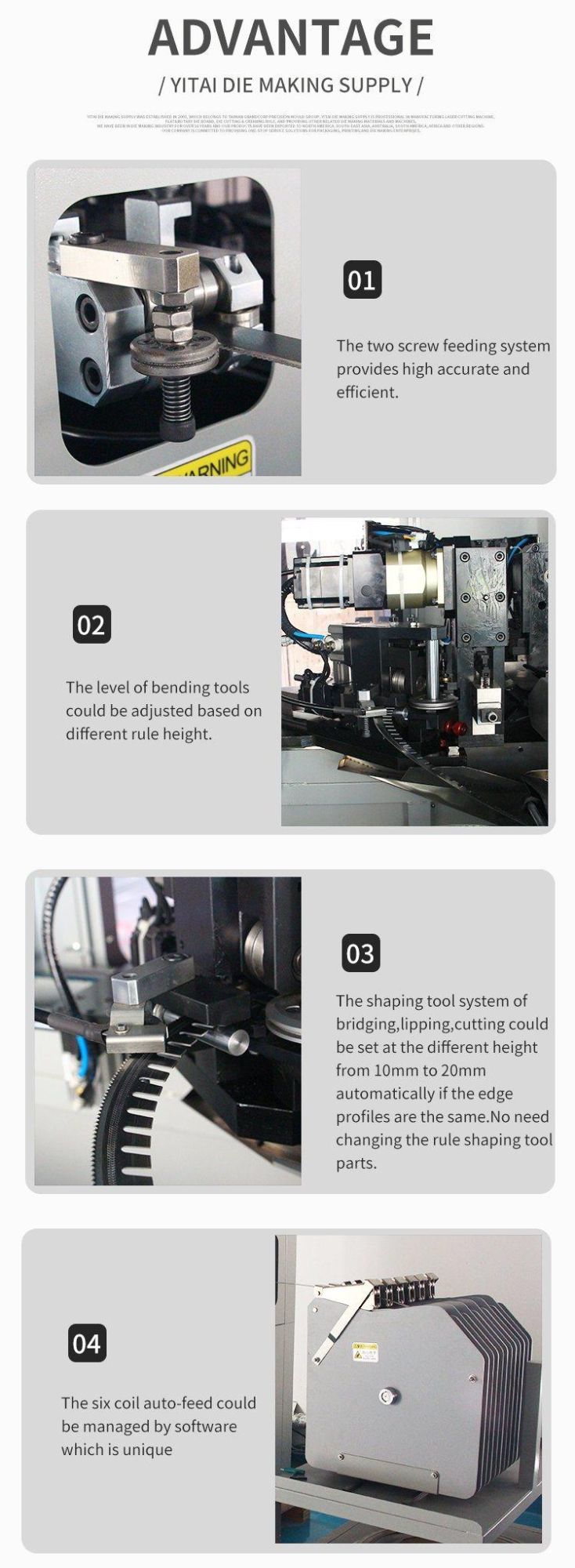

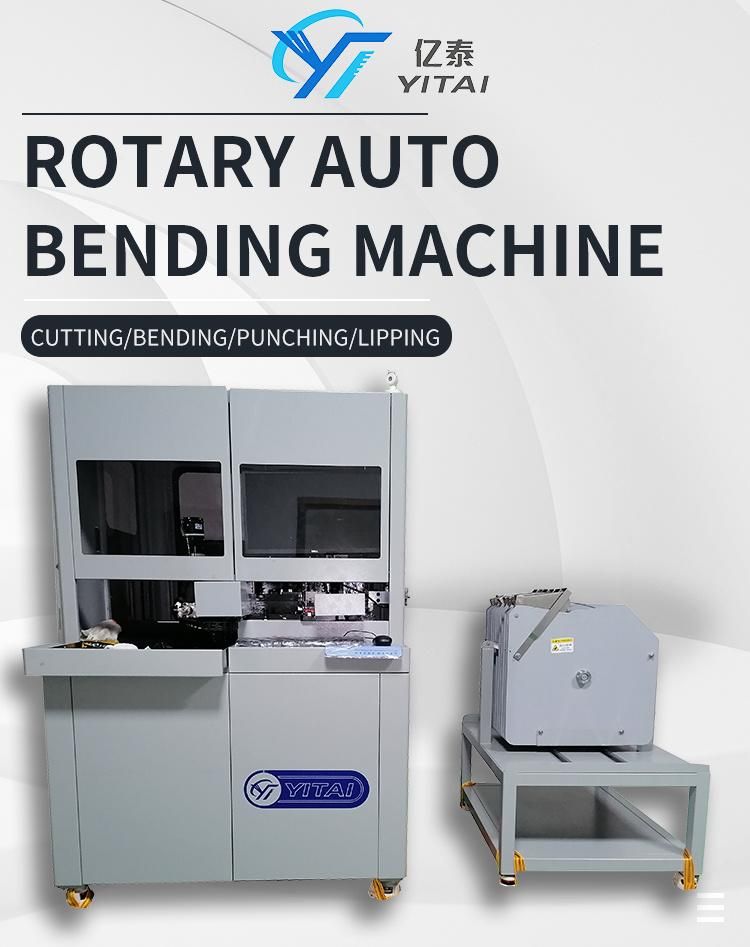

rotary auto rule notching bending and cutting machine for high rule die maker

Specification

Bending Blade thickness(mm)	0.71-1.42mm
Bending Blade height(mm)	Knife height 23.8-26.4mm diameter: 250-700mm
Bridge width	min5mm,max13mm
Bridge height	10-20mm
Max. bending angle	105 degrees
Min. ARC radius of 90 degree	R3.5 can be scimitar 180° forming at one time
Front Min. bending size	5mm
Back Min. cutting size	1.5mm
Feeding precision	±0.2mm
Cutting methods	Cut
Optimal pattern format	dxf,dwg,cf2
Air supply	6bars
Power supply	Single phase 220V
Machine total power	16A3kw
Weight	600kg
Overall dimension	2300*1350*1850

Applicable materials and industries



Any more product information, please contact us!
