• Model NO.：TPB-300
• Type：Coiling Bending Machine
• Color：Customized
• Name：Die Rule Auto Bender Machine for Die Cutting
• Transport Package：Wooden Box
• Specification：3125*1025*1470mm
• Trademark：YT
• Origin：China
• HS Code：8462219000
• Production Capacity：1000set,Year

Technical ParametersBlade thickness(mm)0.450.530.71(2PT)1.07(3PT)1.42(4PT)Blade height(mm)8-258-258-308-408-60Maximum bending angle100100100100100Minimum bending radius of 90 degrees(mm)0.40.40.50.50.5Minimum bending size of the front(mm)1.01.01.51.51.5Minimum bending size of the Rear(mm)>0>0>0>0>0Feeding Accuracy0.03/300mm  Panasonic Server Motor And High Precision Screw guideBending Flatness0.2/100mmBridge ModeAutomatic continuous bridge, bridge height adjustable(15--18mm) Gear Motor driveCutting ModeAutomatic cut-off or swing(Automatic identification alarm and self Monitor)Gear Motor drive Full Power add olecranon pneumatic machineLine CutEfficiently Bending the Blade and Cutting the Line At the Same time.Best Files formatDXF,DWG,AI,CDR,PLTWeight620kgVolume2660*1150*1540Power1.8kw  110V  220V / 50HZ  60HZ
Functions

Auto Bending ,Bridging , Cutting , Lipping, Broaching with 0.45-3mm thick and 8-60mm high blade.

Features

Core parts made of:
2 sets Pansonic server motor(for Feeding and bending);
2 sets gear ruducer motor(for bridging cutting liiping);
2 sets Pansonic server motor(for broaching);
1 stes high precision HIWIN guide screw
1 sets Japan server motor reducer
High quality AirTag cylinder
Self develop controll system subject to change by customer needs Self protect and alarm system Stable and Easy to operate Low maintance fee


Applicable materials and industries

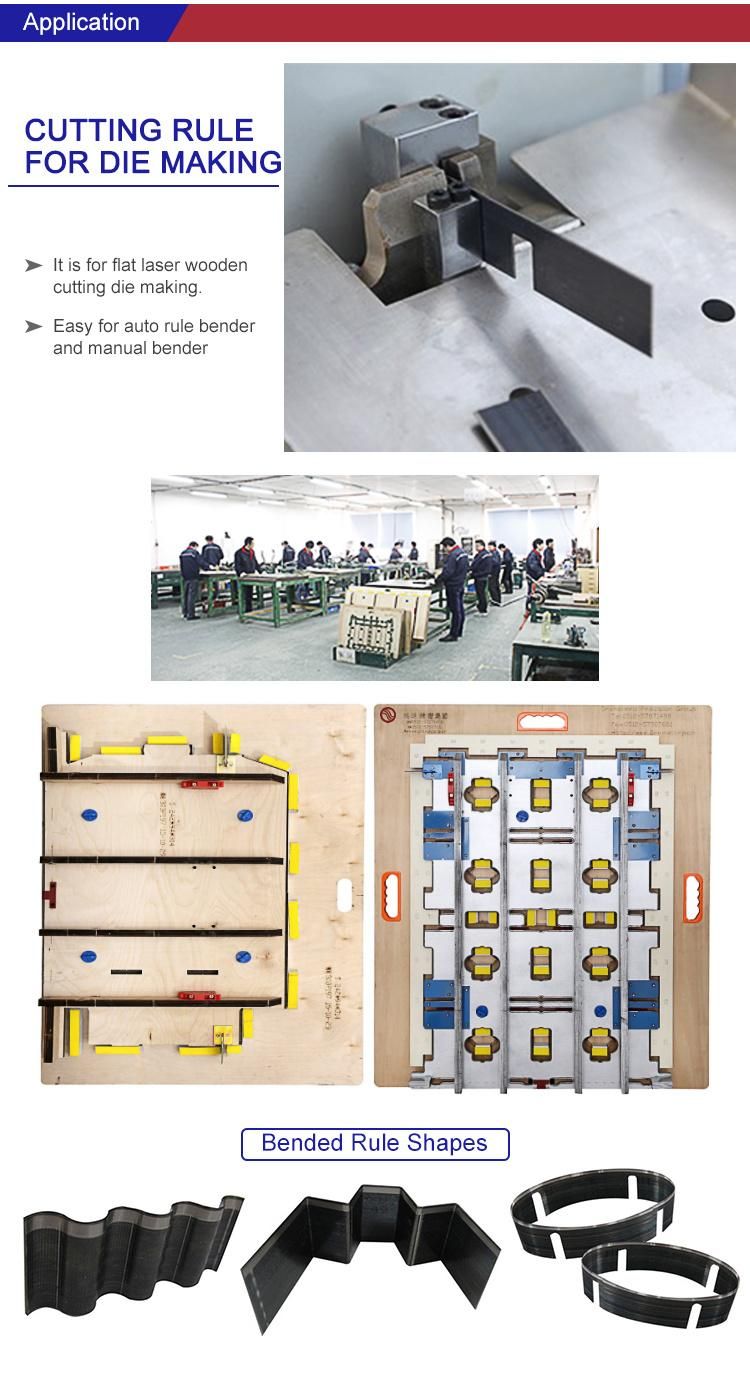

Widely used in blade bending, package box and so on

Bending System

1.Feeding-----use the roll feeding system,could feed the steel rule very fast and accurately

2.Cutting-----automatical cutting, easy to cut  the steel rules

3.Bridging-----automatic bridging

4.Lipping-----automatic lipping

5.Bending-----use firmware bending system, could bend the boxes, toys, electronics perfectly

6.Rule Rest-----use the single rule rest,could move two sides to ensure the clockwise or anticlockwise rule trays

7.Software-----English interface is easy to learn and operate

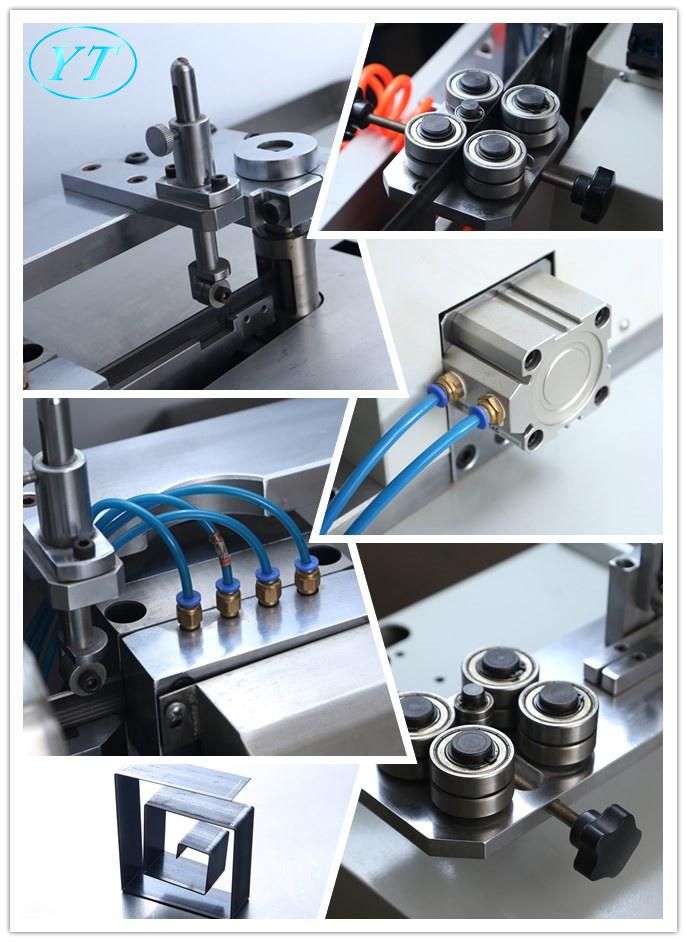

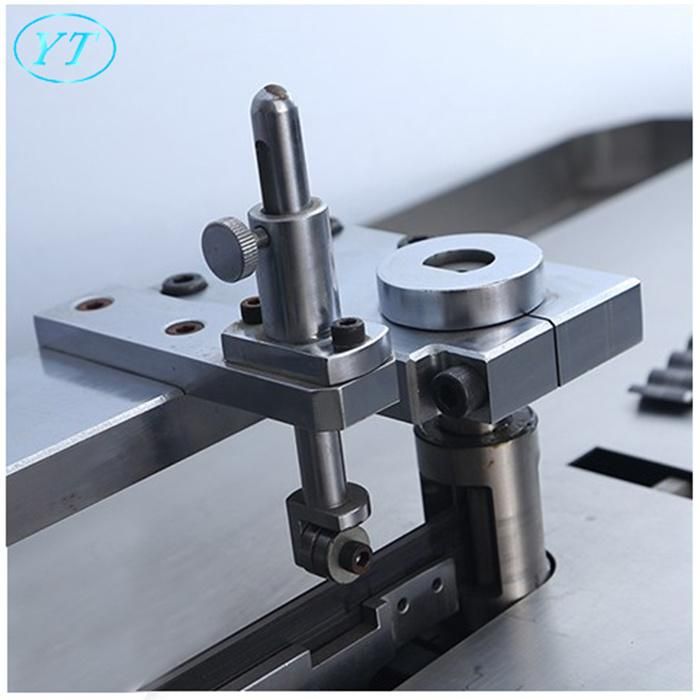

Machine Details

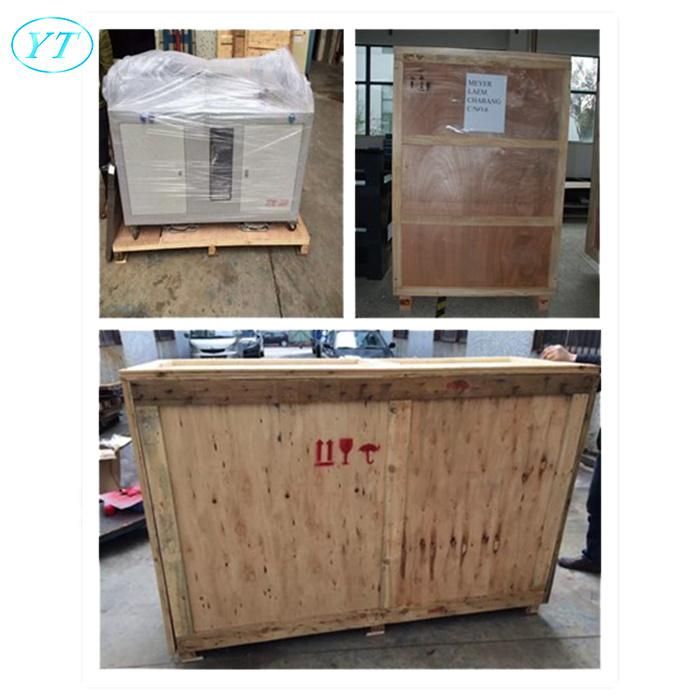

Package & Shipping

Each machine is well packed with export standard wooden box.
We will make photos for the machine before the shipping and let you know the processing of the packing and loading.
