HCT-1260WZ CNC Camless Spring Machine
Dongguan Wecoil Spring Machinery Co., Ltd.- After-sales Service：Remote free technical support within 24 hours
- Waterproof Rating：IPX-6
- Warranty：1-year
- Condition：New

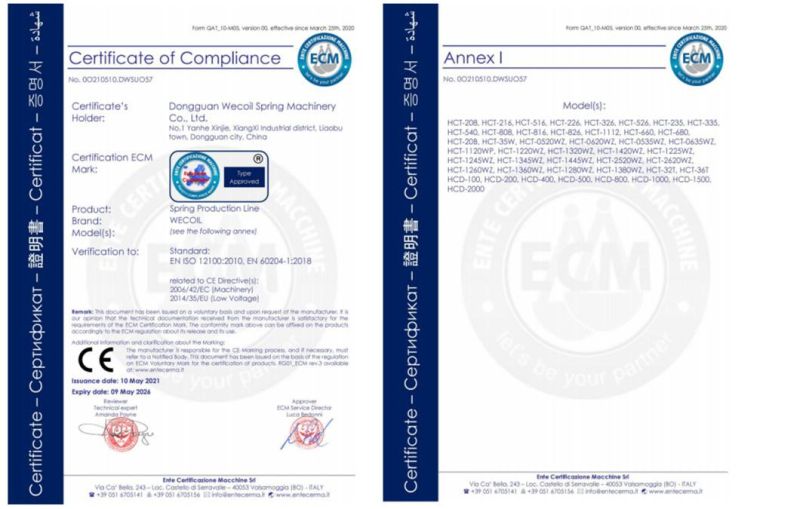

- Certification：ISO 9001:2000, CE
- Automation：Automatic
Base Info
- Model NO.：HCT-1260WZ
- Suitable for：Rubber, Copper, Carbon Steel, Stainless Steel
- Type：Cnc Bending Machine
- Number of axis：12-16 axis
- Wire size range：2.0-6.0mm
- Max feeding axis：105m,min
- Spring index：4
- Feeding roller pairs：4 pairs
- Wire feeding servo motor：7.5kw
- Quill part servo motor：1.8kw
- Wire rotation motor：5.5kw
- Forming and cut off servo motor：4.4kw*8
- Spinner servo motor：1.8kw
- Weight：8000kw
- Transport Package：Vacuum Packaging
- Specification：L3800*W2000*H2200mm
- Trademark：WECOIL
- Origin：China
- HS Code：84633000
- Production Capacity：500 Sets
Description

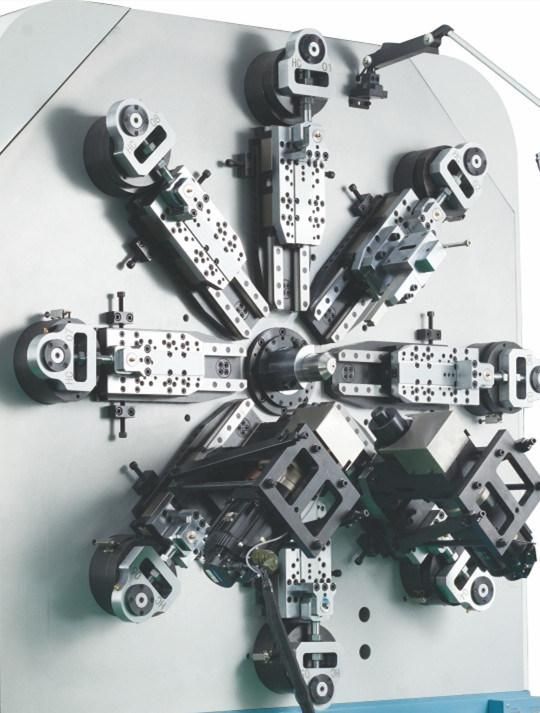

HCT-1260WZ 12 axis Camless CNC Versatile Spring Rotating Forming Machine, is composed by Taiwan computer system and Japan servo motor special designed with no rocker arm and camless, the slide base is separately controlled by eight servo motor, Feeding axis, Quill rotating axis, Wire rotating axis and Spinner axis. It composed of crank connecting link system, feeding and rotating system, coiling straightening system and quill system. It can install the device of hydraulic pressure scissors, low noise; the damage is zero on mandrel and machine. It is suitable for making kinds of tension spring, torsion spring, compression spring, scroll spring, tower spring, flat wire spring and such highly difficult springs. Largely increased the spring making range, it is precise, stable and easy to operate.The crank connecting link system are include eight knife rest, eight knife rest are separately driven by eight Yaskawa servo motor through VRB reducer, no influence from each other, make the spring forming handy and easy. Controlled the feeding and wire rotation system synchronous through CNC program, at the same time the feeding accuracy can be reach within 0.1mm during wire rotation.
Workshop area over 4000 square meters.
Over 30 high-level specialized technical personal 30 people
Spring sample
Packing and loading
Thank you!
