Cutting & Fold-bend Machine

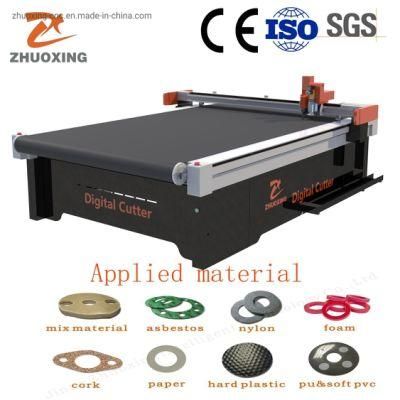

Factory Price Rubber Gasket CNC Cutting Machine with High Accuracy

Jinan Zhuoxing Intelligent Technology Co., Ltd.
  • Waterproof Rating:IPX-1
  • Warranty:1-year
  • Certification:CE
  • Condition:New
  • Control:Automatic
  • Application:Paper, Plastic, Leather, Fabric

Base Info

  • Model NO.:ZX-1625V
  • Power Source:Electric
  • Layout:Horizontal
  • Satety Device:Emergency Stopping Button
  • Max Cutting Speed:1200mm,S(Depend on Materials)
  • Travelling Speed:1500mm,S
  • Cutting Thickness:0.1-110mm(Depend on The Materials0
  • Cutting Accuracy:Within 0.1mm
  • Motor and Driver:Japan Panasonic Servo Motor and Driver
  • Transmission Way:Taiwan PMI Linear Guide
  • Materials Fixed Way:Vacuum Absorption System
  • Transmission Port:Ethernet
  • Format:Dxf,Plt
  • Machine Size:3500X2500X1300mm
  • Rated Power:11kw
  • Voltage:220V,380V
  • Transport Package:Wooden Case
  • Specification:1600*2500mm
  • Trademark:Zhuoxing
  • Origin:China
  • HS Code:8441100000
  • Production Capacity:50sets,Month

Description

Flatted working table Automatic feeding working table Operation propertiesOnline / offline operation; continuous cutting with high efficiency. 7*24 with zero downtimeSafety deviceInfrared induction is used; sensitive response; safe and reliableMax cutting speed1200mm/sApplicable materialsFabric clothes,textile materials,Corrugated board,  honeycomb board, grey card, other paper board, acrylic,  foam, EPE, PVC sheet,Leather, PU, composite materials and other similar materialsMultifunctional headoscillating knife cutting tool/vibration/vibrating knife cutting tol,rotary cutting tol,creasing tool,pneumatic cutting tool,kiss cut tool,drawing tool,milling tool,angling cutting tol,v-cut,punching tool,etc.Cutting thickness0.1-10.0mm (subject to the material cutting,customization available for thicker material)Cutting  tolerance±0.1mmTransmission interfaceNetwork transmissionFixed modeVacuum absorbSupply voltageAC 220V 380V±10%,50HZRated power11KW

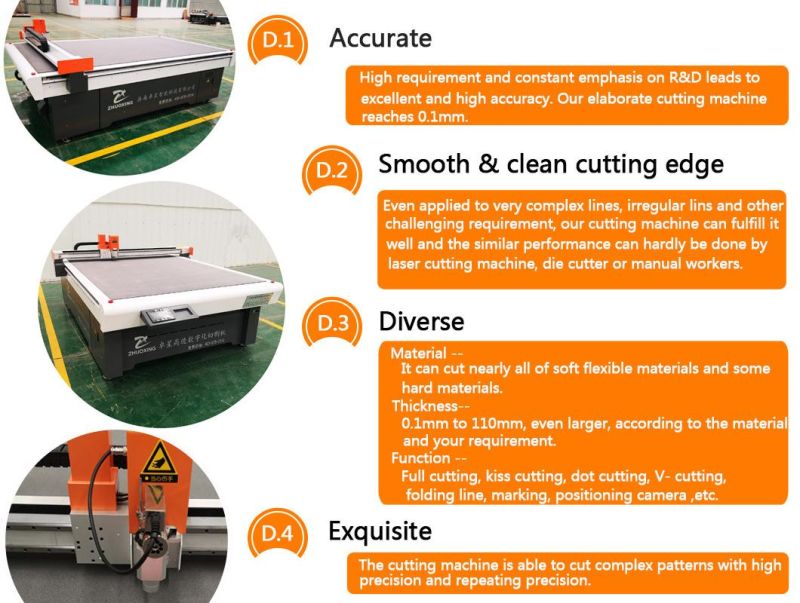

Machine Advantages:
1. Saving labour and material cost
2. Saving time
3. Everyone can operate and cut without lots of skills
4. Boost production capacity
5. Consistent accuracy even with complicated patterns
6. Reduces your lead times of pattern cutting from your clients
7. Wide range of clothes/garment/apparel material application
8. Running in a high automaton
9. Special design: less moving structure guarantee low down time and easy in installation and maintain


Factory Price Rubber Gasket CNC Cutting Machine with High Accuracy

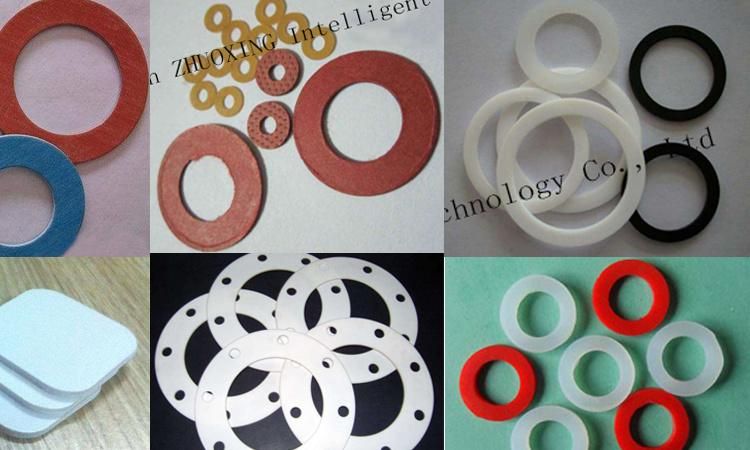

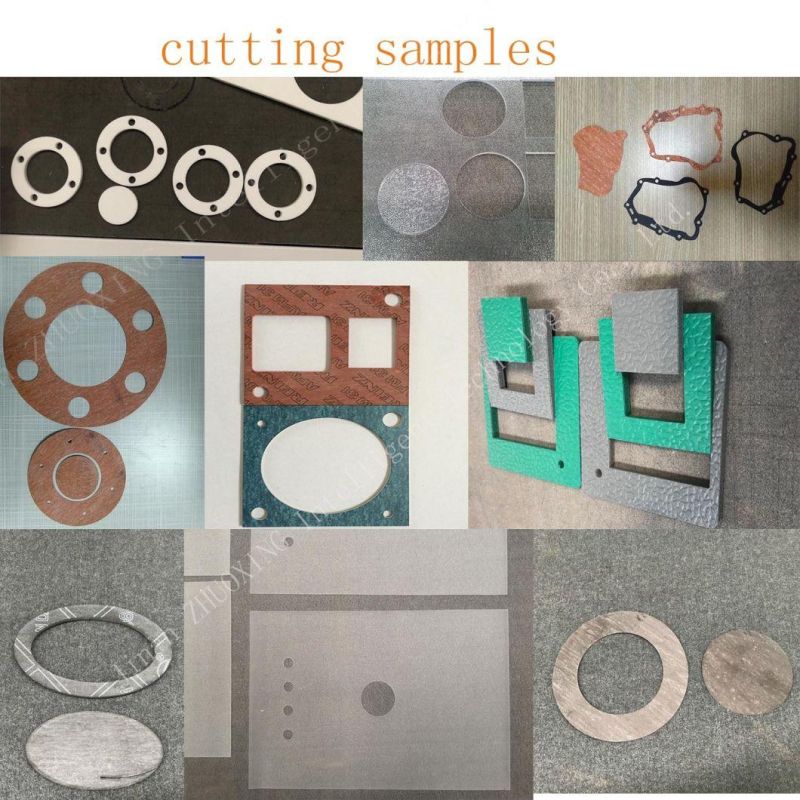

Application:

Factory Price Rubber Gasket CNC Cutting Machine with High Accuracy
Factory Price Rubber Gasket CNC Cutting Machine with High Accuracy

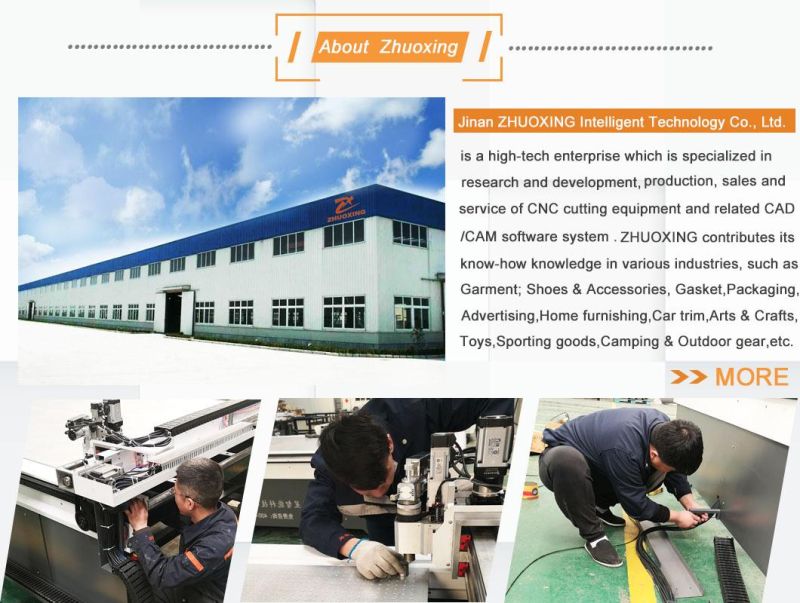

Our company:


CNC Digital Box Cutting Machine Making Machine for Corrugated Grey Board, Carton, Cardboard Sample Cutting Cutter Plotter Flatbed with Ce

CNC Digital Box Cutting Machine Making Machine for Corrugated Grey Board, Carton, Cardboard Sample Cutting Cutter Plotter Flatbed with Ce
CNC Digital Box Cutting Machine Making Machine for Corrugated Grey Board, Carton, Cardboard Sample Cutting Cutter Plotter Flatbed with Ce

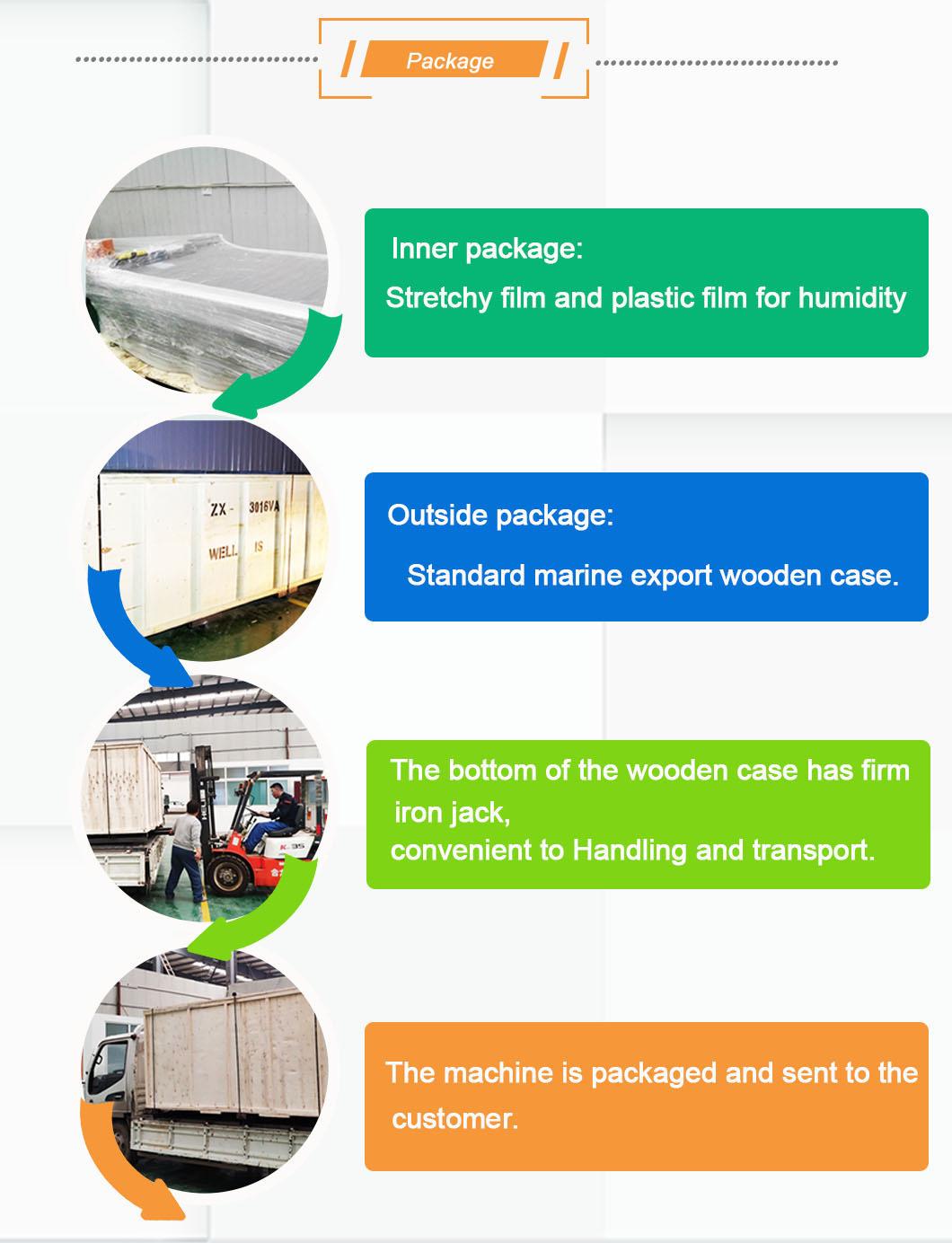

Pacakging:
1.Whole film packaging machine
2.Anti-collision package edge
3.Wooden case package

CNC Digital Box Cutting Machine Making Machine for Corrugated Grey Board, Carton, Cardboard Sample Cutting Cutter Plotter Flatbed with Ce

After-sales service:
1)One year free warranty(except consumable parts), main parts are free of charge
when problems happened because of quality problem during this period.
2).Life time free maintenance service.
3).Consumable parts(like blade, table cover) alway supply at cost price when needed.
4).A free operation training in our factory, and if don't have enough time, we will send
a detailed training video.
5).24 hours online service, free technical support with different languages.
6).Door to door technical support when needed.


Certificate:
Factory Price Rubber Gasket CNC Cutting Machine with High Accuracy


FAQ:
1.How to operate this machine ?
 We can provide operating video, user manual or telephone calls to help you. All these is written or speaking in English at present. On site service is also available. There is no complicate operation nor special requirement for operator, operating is easy.

2.What's the warranty policy?
Standard warranty is 12 month upon delivery.

3. How to judge if this cutting machine is suitable for me or not?
 First, you should share something on the material (L*W*H,breathable or not) to be processed and other specific requirements, such as additional drawing function, punching holes function,etc. We will make first round judgement based on our experience. If necessary, we will make demo cutting for you, then we will share the video with you and discuss the possible solution.

4. Is there any after sales service?
We have integrated after-sales service. Besides our own experienced engineers, we also offer local after sales service through the help of our agents. All this will make you convenient.

5.Where is your factory located? How can I get there?
 Our factory is based in jinan, shandong province,China. You can fly to beijing, jinan or qingdao. We can pick you up at the air station or train station.

6.What is the shipping cost from China to my country?
 It depends on the distance between you and the sea port. We offer door to door service as long as you pay the relevant cost. For the shipping cost you can ask for our advice or from the freight forwarder.
