Cutting & Fold-bend Machine

Electric Metal Shears Automatic Cutting Shear Sheet Metal Cutters with High Quality

Anhui Aoxuan Heavy Industry Machine Co., Ltd.
  • Automation:Automatic
  • Certification:CE, ISO 9001:2000, ISO 9001:2008, EPA, CS, RoHS
  • Condition:New
  • Warranty:2 Years
  • Raw Material:Sheet , Plate Rolling
  • Material / Metal Processed:Carbon Steel

Base Info

  • Model NO.:Q11-2*1000
  • Power:Electric
  • Machine Type:Electric Cutting Machine
  • Max Cutting Thickness:2.0mm
  • Max Cutting Length:1000mm
  • Cutting Angle:1°30’
  • Stroke Times:30 Times,Min
  • Main Motor:3 Kw
  • Weight:400kg
  • After-Sales Service Provided:Engineers Available to Service Machinery Overseas
  • Transport Package:Fumigation Wooden Box
  • Specification:1500MM(L)X680MM(W)X1100MM(H)
  • Trademark:Aoxuan
  • Origin:Maanshan
  • HS Code:84623110
  • Production Capacity:1000sets,Year

Description

Basic Info.

Model NO. Q11-2*1000 Power Electric Machine Type Electric Cutting Machine Max Cutting Thickness 2.0mm Max Cutting Length 1000mm Cutting Angle 1°30’ Stroke Times 30 Times/Min Main Motor 3 Kw Weight 400kg After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Fumigation Wooden Box Specification 1500MM(L)X680MM(W)X1100MM(H) Trademark Aoxuan Origin Maanshan HS Code 84623110 Production Capacity 1000sets/Year

Product Description

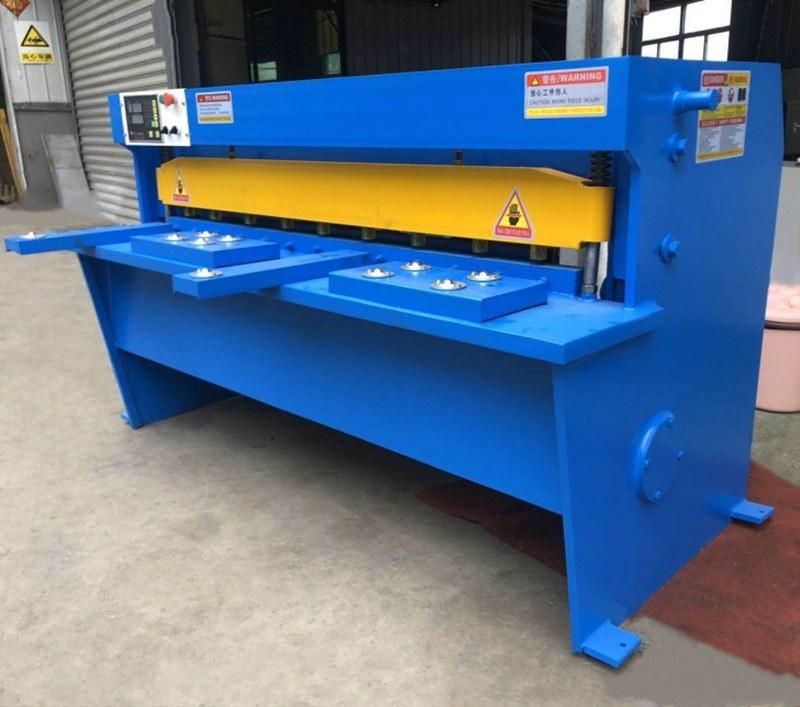

Electric Metal Shears Automatic Cutting Shear Sheet Metal Cutters with high qualityFeatures:
1) This machine is used for the shear sheet metal in line, metal materials should be tensile strength of less than 450 N/mm2, non-me
tallic material including rubber, plastics,when cut hot plate temperature should below 50 °C, The machine can make only intermittent
shear in full load, if tensile strength is higher , shear thickness should be reduced.
2) The machine is applicable to uncoiling, leveling, shearing,workshop of production line for plate processing
3) The machine base is steel- welding , the structure is compact, good rigidity.
4) Track of blade movement is precision casting copper,less friction
5) Upper guide can adjust until achieve a good shear section, below blade can adjust via welding screw make the cutting mouth sm
ooth
6) Feeding devices use spring pressure , the clamps have mat piece, pressure force is big, and not easy to damage the sheet metal
surface.
7) The machine iuse completely independent closed gear box transmission system, move directly connection with main axil, compact
structure, gear have good lubrication, low noise and long life.
8) The machine equipped with pneumatic clutch device, high friction, long service life, clutch speed is high so that improve the shea
ring speed.

Electric Metal Shears Automatic Cutting Shear Sheet Metal Cutters with High Quality
Electric Metal Shears Automatic Cutting Shear Sheet Metal Cutters with High Quality

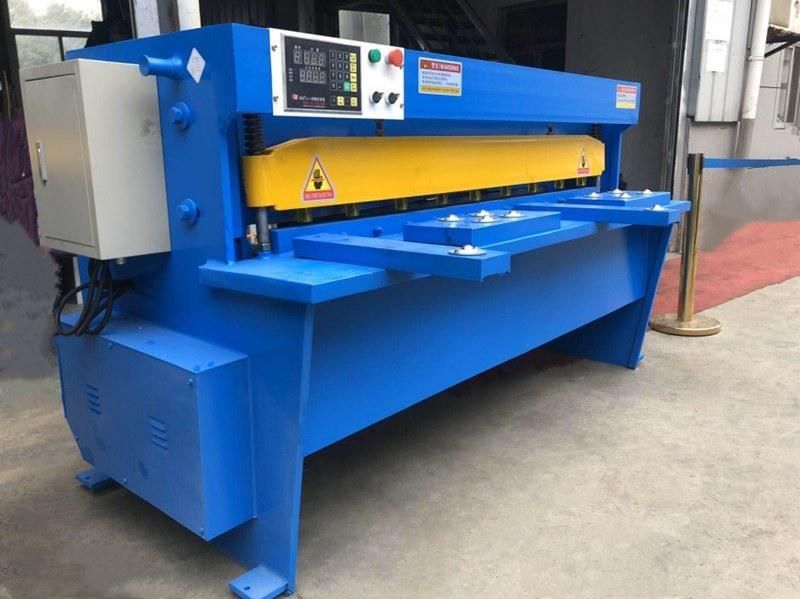

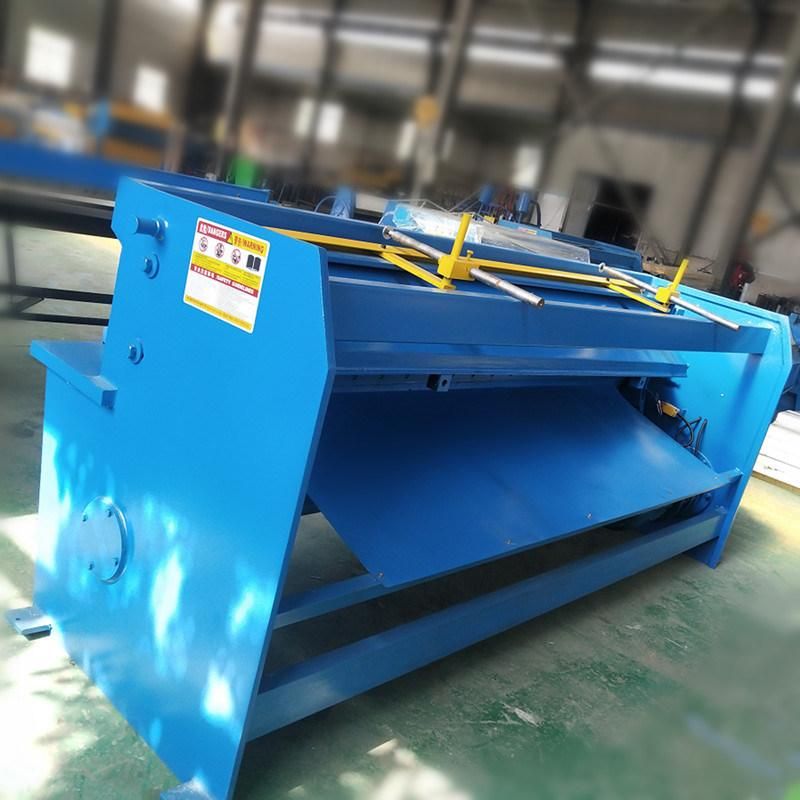

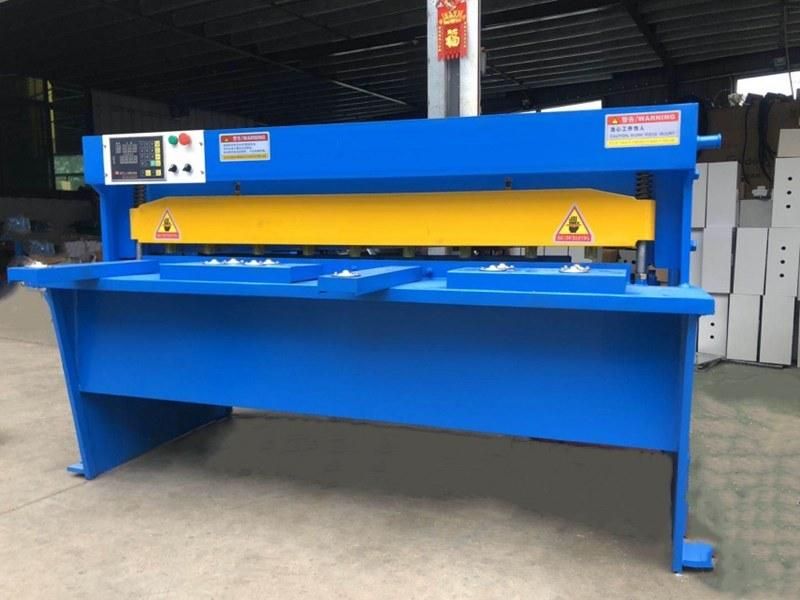

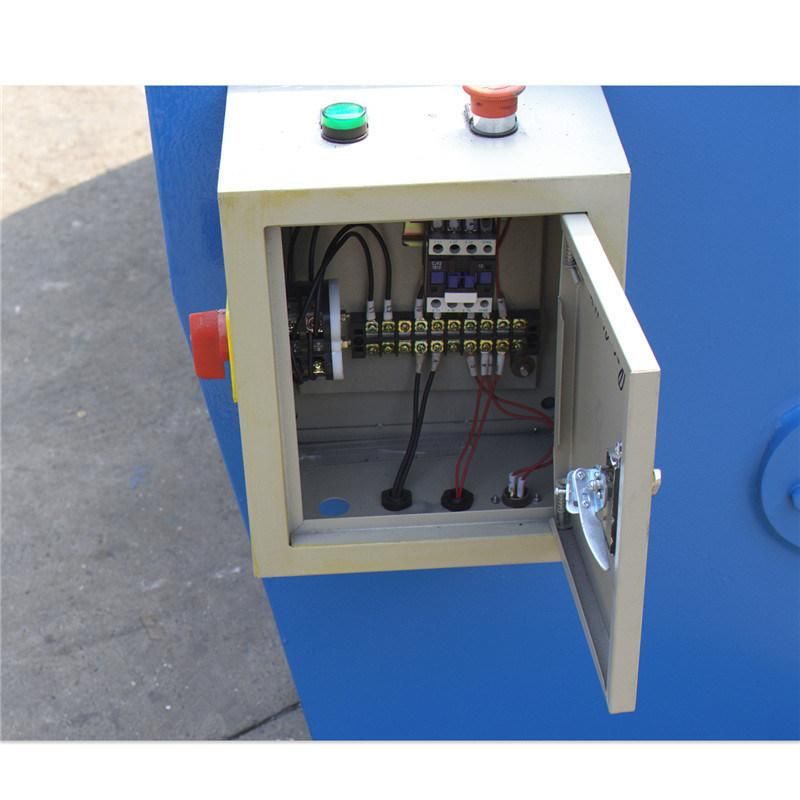

Details:
Electric Metal Shears Automatic Cutting Shear Sheet Metal Cutters with High Quality
Electric Metal Shears Automatic Cutting Shear Sheet Metal Cutters with High Quality
Electric Metal Shears Automatic Cutting Shear Sheet Metal Cutters with High Quality

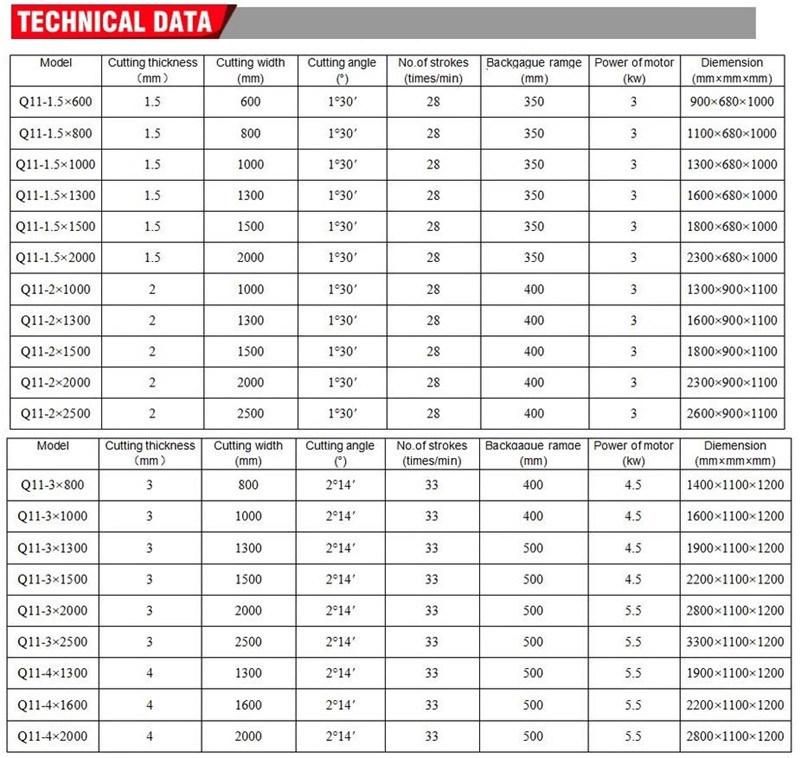

Technical Parameters:
Electric Metal Shears Automatic Cutting Shear Sheet Metal Cutters with High Quality

Certifications:
Electric Metal Shears Automatic Cutting Shear Sheet Metal Cutters with High Quality


Packing Detail:
Each Electric Cutting machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Delivery Detail:
Shipped in 30 days after payment
Electric Metal Shears Automatic Cutting Shear Sheet Metal Cutters with High Quality
Our Service:
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging * Inquiry and consulting support.
* Sample testing support.
In-sales. * We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sales.
* We will provide free accessories for the damage to non - human parts. * Training how to install the machine, training how
to use the machine with video and so on * And our technical staff can go abroad to provide technical guidance.

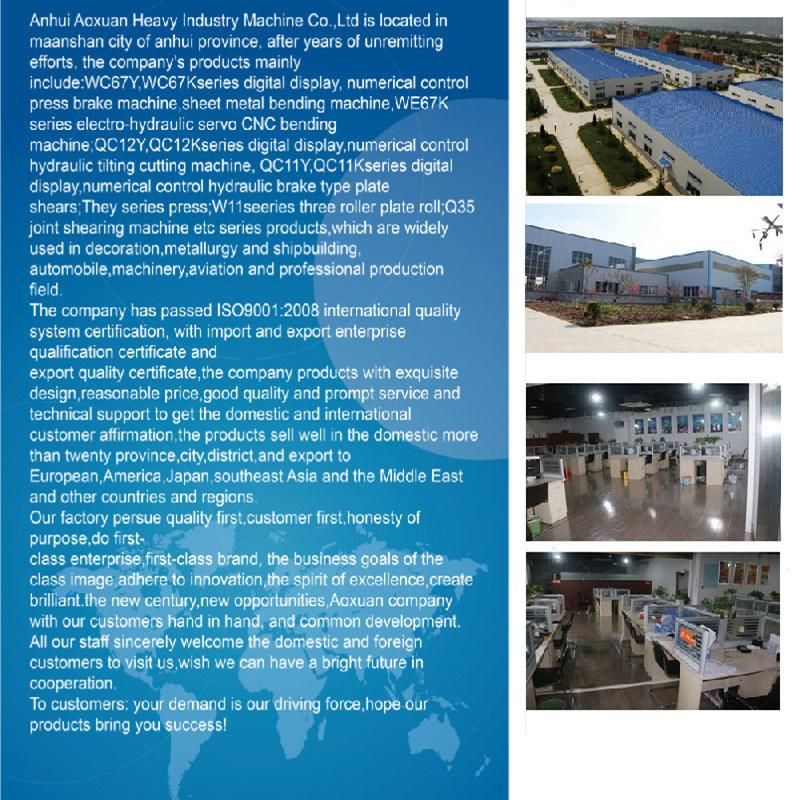

Our Company:
Electric Metal Shears Automatic Cutting Shear Sheet Metal Cutters with High Quality

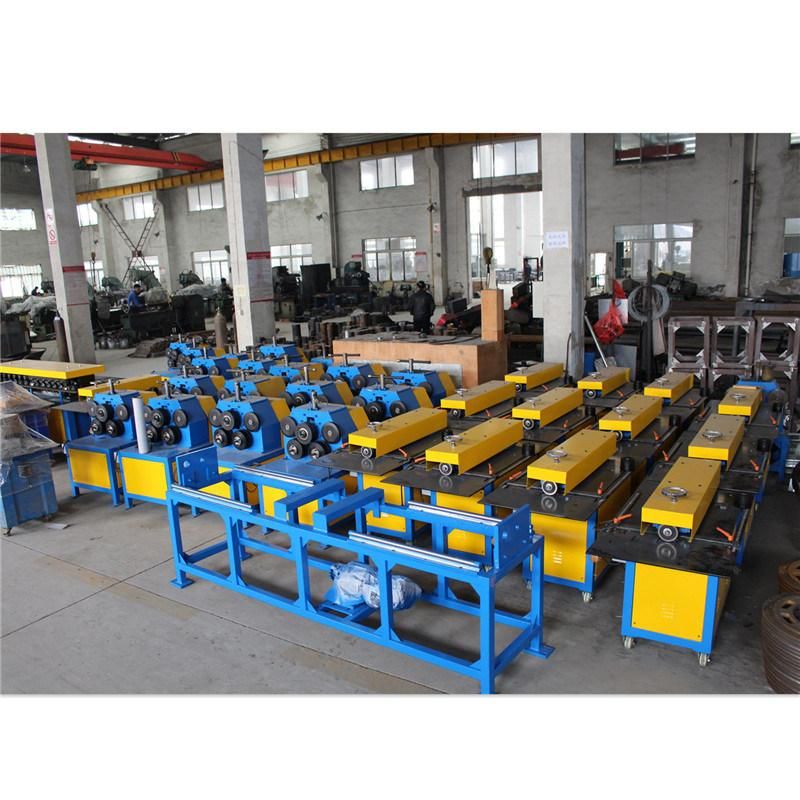

Our workshop:
Electric Metal Shears Automatic Cutting Shear Sheet Metal Cutters with High Quality

Customer & EXPO:
Electric Metal Shears Automatic Cutting Shear Sheet Metal Cutters with High Quality


FAQ:
1. Are you the manufacture?Can we visit your factory? We are manufacturer and we are located in Anhui,China.And we have our
own design team for products design. And welcome you visit our factory and check our machine qualtiy on spot,any question will
be solved on spot at first time.

2.What's your main product and what is your main foreign market? Our main products are press brake,shears machine,press,cut
ting machine,locking machine ,auto duct line and related products. Our main foreign market are Asia, North America, Europe, Afr
ica.

3. What are the advantages of your machines?And how can i believe the quality of your product? The main configuration is to im
port quality products, and Professional product quality inspection teamensure machine in top-quality, precision and life. For exam
ple,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on. Once tested as q
ualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order? After confirming your order ,we
would keep you updated of production details of emails and photos.

5. Can we be your agent? Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service
like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms? T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect. Buyer pays 30% by T/T to start this order, res
t 70%paid before shipment.

7.Are you provide product metal parts and provide us technical guidance? Wearing parts,Disassembly tool(free) are what we cou
ld provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.

8. How long is your warranty? 13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?we accept kinds of customized ,including logo and machine .
