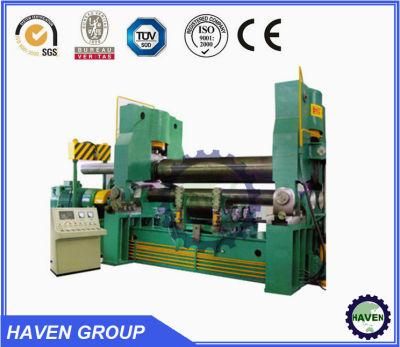

Upper Roller Bending Machine, Metal plate rolling machine
Shaanxi HAVEN Equipment Co., Ltd.- Waterproof Rating：IPX-1
- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2000, ISO 9001:2008, CE
- Automation：Semi-Automatic
- Suitable for：Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：W11S series
- Type：Hydraulic Bending Machine
- max rolling thickness：10mm
- max rolling width：4000mm
- roller material：45# steel
- main motor：China famous brand
- hydraulic valve：YUKEN brand
- PLC：Omron Brand
- machine voltage and clor：as per client
- Transport Package：Veneer Box or Steel Pallet
- Specification：SGS, BV
- Trademark：HAVEN
- Origin：China
- HS Code：84622990
- Production Capacity：30 Unit,Month
Description
ModelMax. thickness(mm) Width Workpiece min dia Top
roller Bottom
roller Distance bottom roller Motor (KW) normal Pre (mm) mm (mm) (mm) (mm) Main Hydraulic Movement W11S-6x2000 6 4 2000 480 195 125 160 3 1.5 0.75 W11S-6x2500 6 4 2500 580 235 135 180 4 2.2 0.75 W11S-8x2000 8 6 2000 550 220 125 180 4 2.2 0.75 W11S-10x2000 10 8 2000 630 250 145 200 5.5 4 1.1 W11S-10x3200 10 8 3200 630 280 180 250 7.5 4 1.1 W11S-10x4000 10 8 4000 800 360 200 330 18.5 7.5 4 W11S-12x2500 12 9 2500 660 265 145 200 5.5 5.5 1.5 W11S-12x4000 12 9 4000 850 380 220 360 22 7.5 5.5 W11S-16x2000 16 12 2000 700 300 150 245 11 7.5 4 W11S-16x2500 16 12 2500 750 330 165 270 11 7.5 4 W11S-16x3200 16 12 3200 800 360 180 330 22 7.5 4 W11S-16x4000 16 12 4000 1200 490 250 400 37 11 7.5 W11S-20x2000 20 16 2000 780 340 180 330 22 7.5 4 W11S-20x2500 20 16 2500 800 360 180 330 22 7.5 4 W11S-20x3200 20 16 3200 850 380 220 360 30 11 5.5 W11S-25x2000 25 20 2000 800 360 220 360 30 11 5.5 W11S-25x2500 25 20 2500 850 380 240 360 30 11 5.5 W11S-25x3200 25 20 3200 1000 410 260 380 37 11 7.5 W11S-25x4000 25 20 4000 1200 490 250 400 37 11 7.5 W11S-30x2500 30 24 2500 1000 410 260 380 37 11 7.5 W11S-30x3200 30 24 3200 1100 440 260 400 37 11 7.5 W11S-35x2000 35 28 2000 1100 440 260 400 37 15 7.5 W11S-35x2500 35 28 2500 1150 460 275 420 37 15 11 W11S-35x3200 35 28 3200 1400 560 290 500 55 22 11 W11S-40x2500 40 32 2500 1250 500 290 460 55 18.5 11 W11S-40x3200 40 32 3200 1400 570 340 500 75 22 11 W11S-40x3200 40 32 3200 1480 590 340 610 55 22 11 W11S-40x5000 40 32 5000 1750 700 360 650 75 30 15 W11S-50x5000 50 40 5000 1980 790 420 780 90 37 15 W11S-60x3200 60 48 3200 1600 650 380 700 75 30 15 W11S-70x3200 70 56 3200 1750 710 420 780 75 37 15 W11S-80x3200 80 64 3200 1900 770 460 880 90 37 18.5
2. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement
3. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
4. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
