• Model NO.：LT-GJ-ZT-03
• Transport Package：Carton, Wooden Case
• Specification：CE, ISO
• Trademark：Longteng
• Origin：Wuxi, China (Mainland)
• HS Code：8515900000
• Production Capacity：50000 PCS,Year

Basic Info.

Model NO. LT-GJ-ZT-03 Transport Package Carton, Wooden Case Specification CE, ISO Trademark Longteng Origin Wuxi, China (Mainland) HS Code 8515900000 Production Capacity 50000 PCS/Year

Product Description

Oxygen-Fuel Flame Cutting Torch for CNC cutting machine (85mm)

1)Quick Detail:
1.85mm machine use cutting torch
2.Use for Potable CNC flame cutting machine
3.Balanced pressure structure design

2)Description:
1.It is made of high quality forging brass.
2.Balanced pressure structure design.
3.It adopts silver solder, which can effectively avoid leakage.
4. O.D.of the tube:30 mm
5.The length of the tube:85mm,180mm,250mm,370mm,450mm.
6.The gear rack can be installed at 4 different position with 90 degrees between two positions.
7.It is suitable for balanced pressure cutting nozzle with cone of 30 degrees.


Model NO.	Thimble Length(mm)	Cutting Thickness(mm)	Rack Length/Modulus	Acetylene Cutting Tips	Propane Cutting Tips	Inlet connection
GJ	85	300	/	G02#0-#5	G03#0-#5	M12*1.25
GJ	180	300	150/1	G02#0-#5	G03#0-#5	M12*1.25
GJ	250	300	210/1	G02#0-#5	G03#0-#5	M12*1.25
GJ	370	300	210/1	G02#0-#5	G03#0-#5	M12*1.25
GJ	450	300	310/1	G02#0-#5	G03#0-#5	M12*1.25

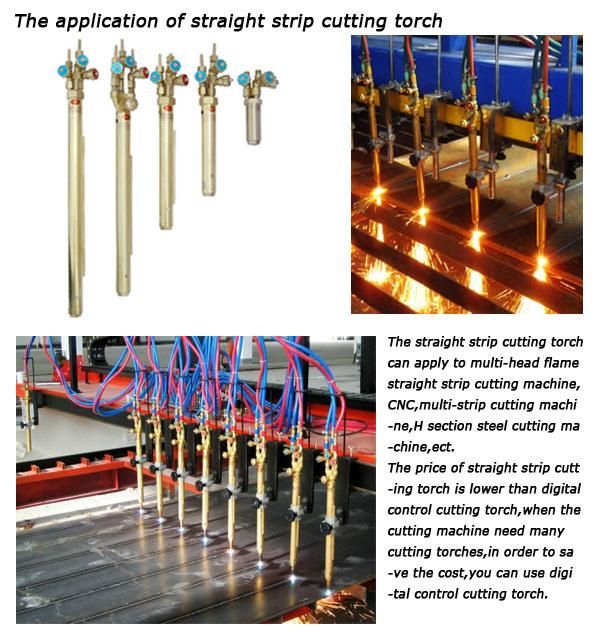

3)Applications:
Oxy-fuel cutting torch is suitable for use in in multi-head flame straight strip cutting machines, digital control multi-strip cutting machines and H section steel cutting machines,and is used to connect the cutting nozzle, cutting steel and other metal materials. Cutting Torch is the main tool of gas cutting machine, also known as the torch. the fuel gas and oxygen mixture in the cutting torch, in the form of heat and has a preheating flame shape, in center of the preheating flame, the high pressure oxygen flow is injected for flame cutting work.
