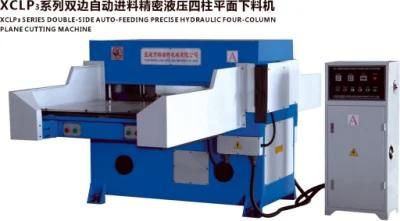

2013 Hot Sale Automatic Four-Column Precise Cutting Machine with Double -Side Feeding Table
Yancheng Greater Machinery Co., Ltd.- Automation：Automatic
- Type for Cutting Machine：Hydraulic Cutting Machine
- Transport Package：Wooden Case
- Specification：40T-200T
- Trademark：GRT
- Origin：Yancheng, China
Base Info
- Model NO.：XCLP3
- HS Code：84532000
- Production Capacity：5PCS,Month
Description
| Model | XCLP3-40 | XCLP3-50 | XCLP3-60 | XCLP3-80 | XCLP3-100 | XCLP3-150 | XCLP3-200 |
| Maximum cutting force | 40Tons | 50Tons | 60Tons | 80Tons | 100Tons | 150Tons | 200Tons |
| Distance betwwn upper pressing board and worktable(mm) | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 |
|
Cutting area (mm) |
1600×610 | 1600×800 | 1600×900 | 1600×900 | 1600×900 | 1600×1000 | 1600×1000 |
| 1400×610 | 1400×800 | 1400×900 | 1400×900 | 1400×900 | 1400×1000 | 1400×1000 | |
| Main motor power | 3KW | 4KW | 5.5KW | 7.5KW | 7.5KW | 11KW | 11KW |
| Electric Supply Voltage | 3x440/415/400/380/220/200V, 50/60 Hz | ||||||
| Machine weight (approximate) | 3000Kg | 4000Kg | 5500Kg | 6500Kg | 8000Kg | 10000Kg | 12000Kg |
| 2800Kg | 3700Kg | 5000Kg | 6000Kg | 7600Kg | 9200Kg | 11200Kg | |
