• Model NO.：SG-450
• Processing Object：Saw Blade
• Controlling Mode：Artificial
• Cylindrical Grinder Type：Universal Cylindrical Grinder
• Precision：High Precision
• Sharpeing Tool：Grinding Wheel
• Abrasives：Grinding Wheel
• Suitbale Products：Circular Saw Blade
• Transport Package：Wooden Case
• Specification：450mm
• Trademark：Baorui
• Origin：China
• HS Code：8460390000
• Production Capacity：3000 PCS, Year

Basic Info.

Model NO. SG-450 Processing Object Saw Blade Controlling Mode Artificial Cylindrical Grinder Type Universal Cylindrical Grinder Precision High Precision Sharpeing Tool Grinding Wheel Abrasives Grinding Wheel Suitbale Products Circular Saw Blade Transport Package Wooden Case Specification 450mm Trademark Baorui Origin China HS Code 8460390000 Production Capacity 3000 PCS/ Year

Product Description

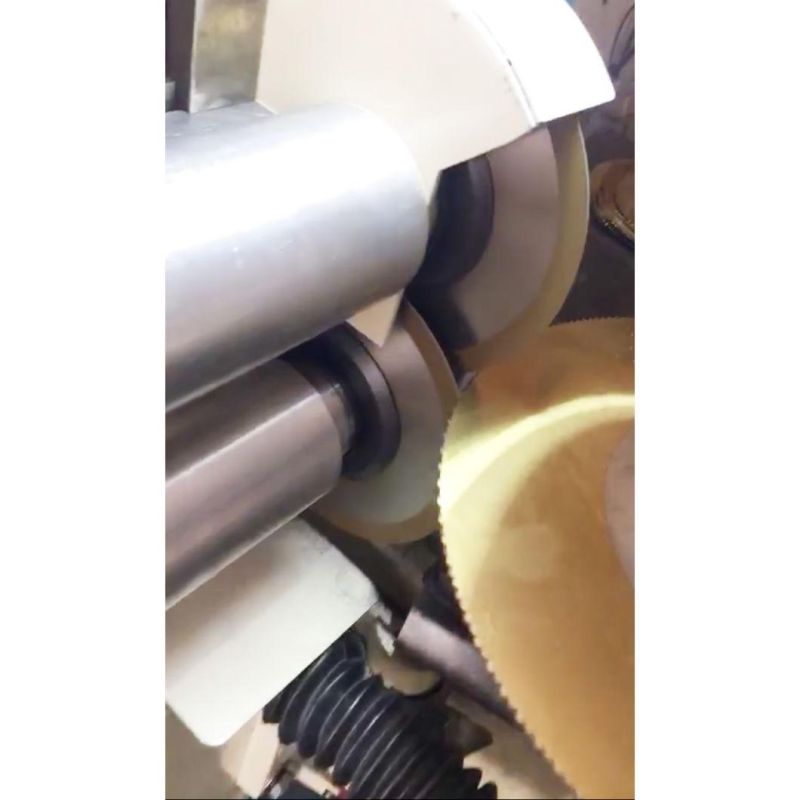

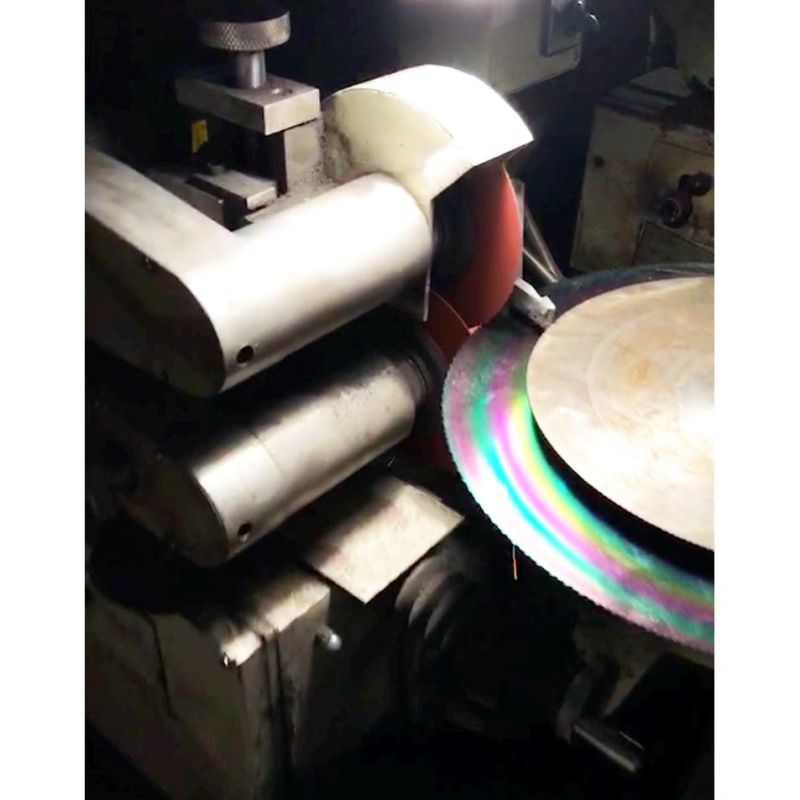

SG-450 saw blade sharpening machine
can sharpening and chamfering saw blade with many types teeth, fast speed, high accurate




Technological data



Item	Name	Data
1	Saw blade outer diameter	Φ50mm-Φ450mm
2	the teeth distance	25mm
3	teeth depth	8mm
4	cutting degree	-5°- 30°
5	feeding speed	45-180 teeth/ minute
6	saw blade thickness	8mm
7	grinding wheel diameter	Φ75mm-Φ150mm
8	grinding wheel speed	4200RPM
9	the motor power	1/2HP
10	the grinding wheel power	3/4HP
11	Micro section adjusting angle	±20°
12	Rotary corner	30° left, 45°right
13	machine size	800mm x 800mm x 1410mm
14	weight	130kgs
15	Warranty time	12 months
