2018 Hot Sale CNC Spring Coiling Machine Made in Dongguan China
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Warranty：1 Year, 12 Months
- Condition：New
- Certification：CE
- Name：Forming Machine
- Weight：500kg, 500kg
- Wire Diameter：0.15 - 0.8mm
Base Info
- Dimension(L*W*H)：660X800X1400mm
- Power：3kw
- Voltage：380, 220V,380V,415V,440V
- Material：Steel Wire
- Power(W)：3kw
- Color：Blue
- Transport Package：Standard Fumigated Wooden Case
- Trademark：WG
- Origin：Guangdong, China (Mainland)
Description
Basic Info.
Dimension(L*W*H) 660X800X1400mm Power 3kw Voltage 380, 220V/380V/415V/440V Material Steel Wire Power(W) 3kw Color Blue Transport Package Standard Fumigated Wooden Case Trademark WG Origin Guangdong, China (Mainland)Product Description

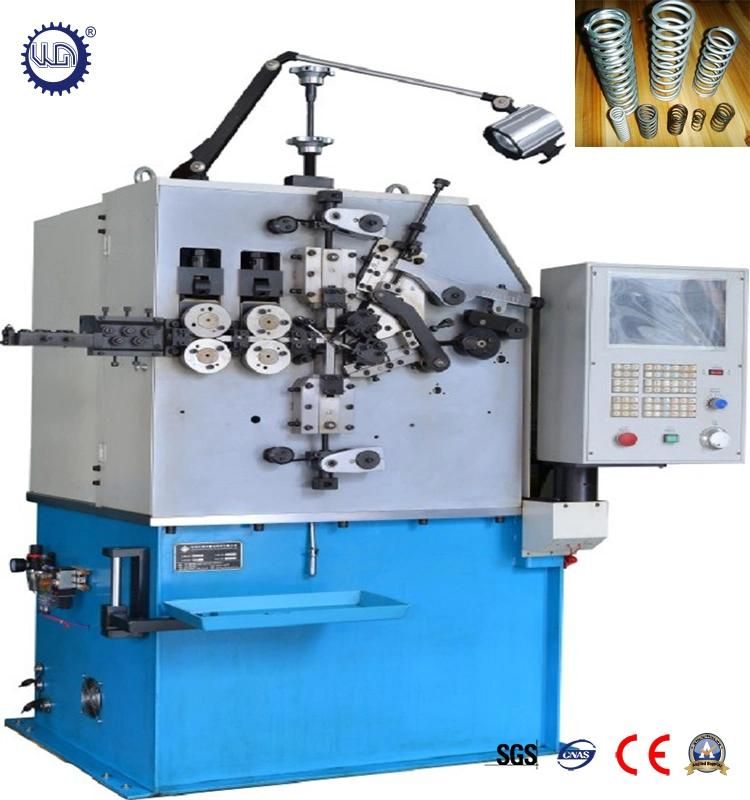

CNC spring coiling machine is to expertly produce kinds of coiling springs fully automatically.
It is suitable for wire size from 0.15mm up to 0.8mm. This machine is equipped with length detector.
Technical Parameter:
1. Axis: 2
2. wire size range: 0.15 - 0.8mm
3. Max. outsider dia.: 20mm
4. feeding speed: 0-150M/Min
5. Max. feeding length: unlimited
6. production speed: 0-400 pcs/minute
7. cam setting value: +/-0.1-+/-359.9
8. wire feed motor: 1.0kw
9. cam motor: 1.0kw
10. powe AC: 380V/3P/50HZ
11. Dimension: 660x800x1400mm
12. Weight: 400kg
Packaging & Shipping
