• Model NO.：JT-ADC-320,320G,420
• Servo Motor：Yaskawa 0.85kw
• Photocell：3 Photocells
• Type for Cutting Machine：CNC Cutting Machine
• Type for Fold-Bending Machine：CNC Fold-Bend Machine
• Transport Package：in Flexible Wrapping, Some Important Parts in Wood
• Specification：2.6*0.95*1.4m
• Trademark：JOTAMACHINERY
• Origin：Ruian, Zhejiang, China
• HS Code：84411000
• Production Capacity：50sets,Month

Basic Info.

Model NO. JT-ADC-320/320G/420 Servo Motor Yaskawa 0.85kw Photocell 3 Photocells Type for Cutting Machine CNC Cutting Machine Type for Fold-Bending Machine CNC Fold-Bend Machine Transport Package in Flexible Wrapping, Some Important Parts in Wood Specification 2.6*0.95*1.4m Trademark JOTAMACHINERY Origin Ruian, Zhejiang, China HS Code 84411000 Production Capacity 50sets/Month

Product Description

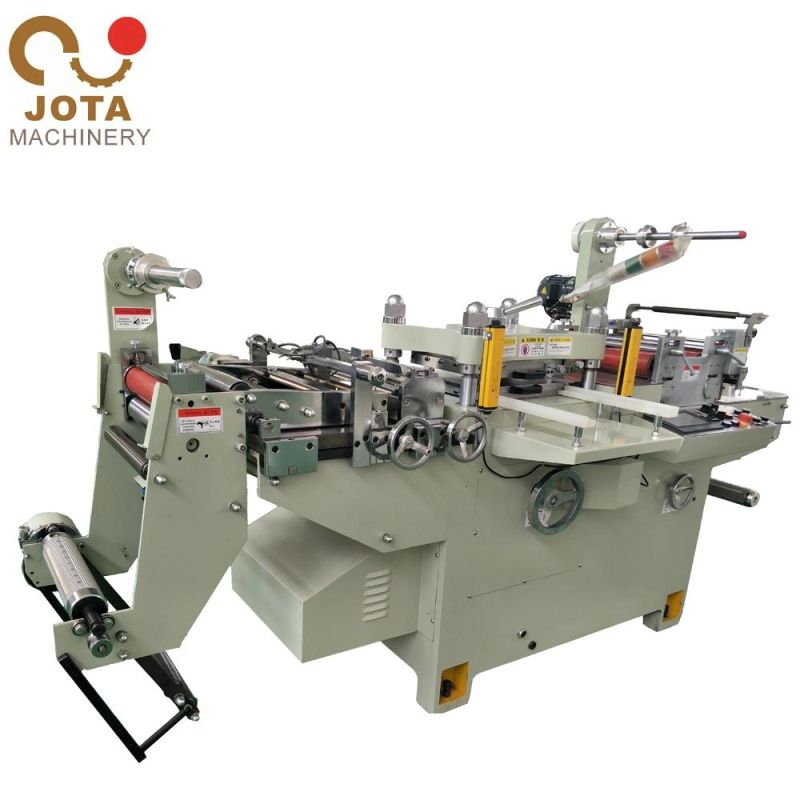

Die-cutting machine



Adhesive Label(logo) die-cutting Machine
PLC control and Meter Counter
Shafless control system
Blade scrape system

Specifications:

Adhesive Label(logo) die-cutting Machine adopts accirate flatten die-cutting system, material towing controlled by computer, web-guilding by three photoelectric eyes. Die cutting, waste rewinding and finished-material rewinding are finished in one process. It is suitabke for die cutting of adhesive paper, Dacron label and laser hologram mark.
This is the ideal association equipment for the flexo printing machine. Silk screen printing machine, gravure printing machine and hologram mark printing machine, and it's the most effective machine for printing house. Main Technical Parameters

Model 320G type
Cut speed 20-170 times/min
Max unwinding diameter: 500mm
Max web width 320mm
Max. Die-cutting width 300mm
Max. Die-cutting length 290mm
Orientation accuracy +-0.1mm
Whole power 3.5kw
Power 220+-10%
Machine weight 1700kg
Overall diamension 2.6(l)*10(w)+14(H)(m)
