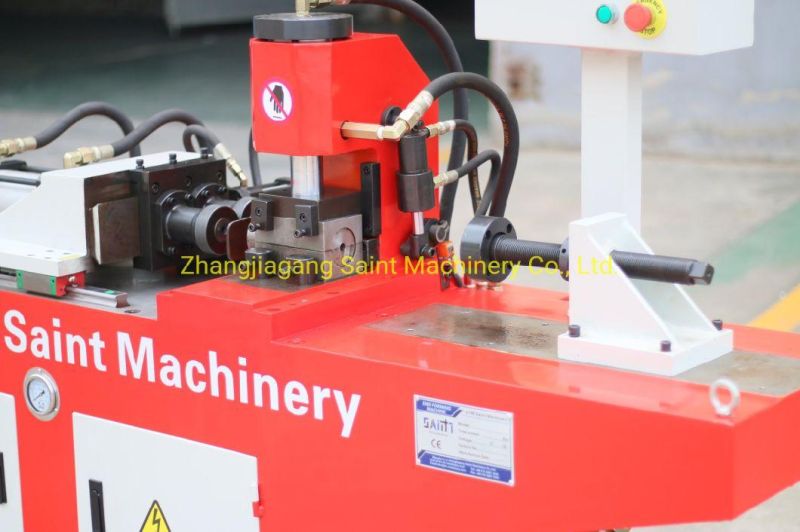

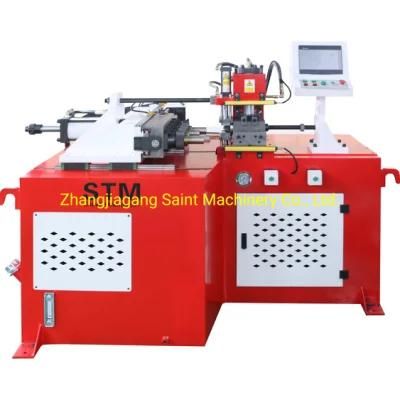

Top-Rate Automatic Single-Head Straight Punching One-Station Tube End Forming Machine (TM40-2)

Zhangjiagang Saint Machinery Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：1-year
  • Condition：New
  • Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
  • Automation：Automatic
  • Suitable for：Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：TM40-2
  • Type：Pipe End Forming Machine
  • Forming：Hydraulic 7.5t
  • Tool Shift：Hydraulic
  • Transport Package：Plywood Case
  • Specification：LWH: 2000x700x1500mm, GW: 1000kg
  • Trademark：STM
  • Origin：China
  • HS Code：8462219000
  • Production Capacity：500

Description

Basic Info.

Model NO. TM40-2 Type Pipe End Forming Machine Forming Hydraulic 7.5t Tool Shift Hydraulic Transport Package Plywood Case Specification LWH: 2000x700x1500mm, GW: 1000kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500

Product Description

Imported PLC unit or SCM control, touch screen(optional), convenient opration, flexible settings and easy to learn

Adopting Mitsubishi servo motor to change moulds, or the hydraulic cylinder mould changing, accurately and steady.

Adopting high-accuracy linear slide rail, stable propulsion

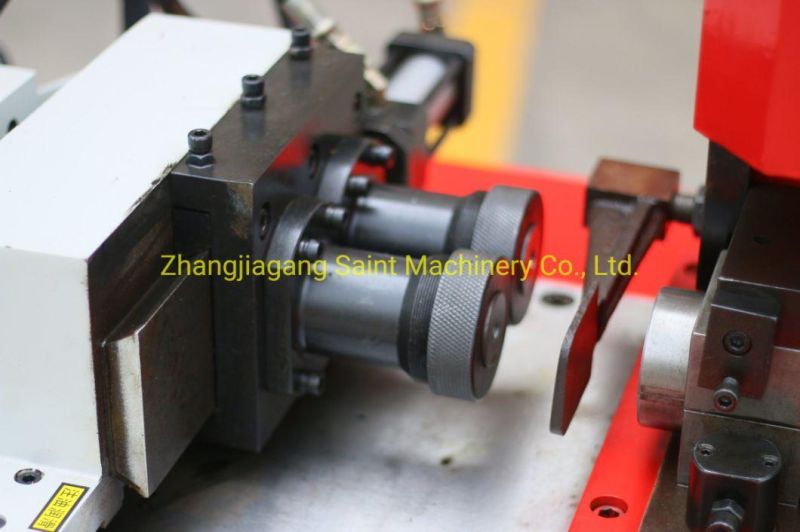

Can equipe with all kinds of forming moulds, for pipe end forming like expanding, contracting and other special forming

Hydraulic cooling system to ensure the equipment long-time work stably under the high temperature

ParametersTM40TM60
Max processing capabilityMax Φ40mmMax Φ60mm
Max processing length120mm140mm
Main cylinder max output7.5T12.5T
Motor power4.0Kw5.5Kw
Oil pressure12MPa12MPa
Size2000×700×1500mm2200×800×1500mm
Gross weight1000 kg1250 kg
