• Model NO.：ZD-3300
• Pressure：0.4-0.6MPa
• Folding Scope：1.5 M to 3.3 M
• Heating：Steam,Electrical Heated
• Certificates：ISO CE
• Transport Package：with Wooden Case
• Specification：ISO CE
• Trademark：Tongyang Brand
• Origin：Taizhou China
• HS Code：8451300000
• Production Capacity：5 PCS,Month

Basic Info.

Model NO. ZD-3300 Pressure 0.4-0.6MPa Folding Scope 1.5 M to 3.3 M Heating Steam/Electrical Heated Certificates ISO CE Transport Package with Wooden Case Specification ISO CE Trademark Tongyang Brand Origin Taizhou China HS Code 8451300000 Production Capacity 5 PCS/Month

Product Description

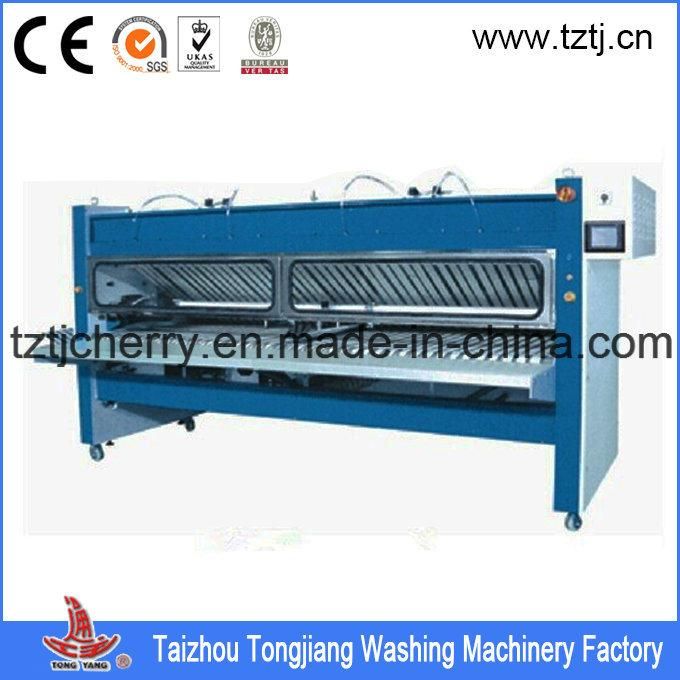

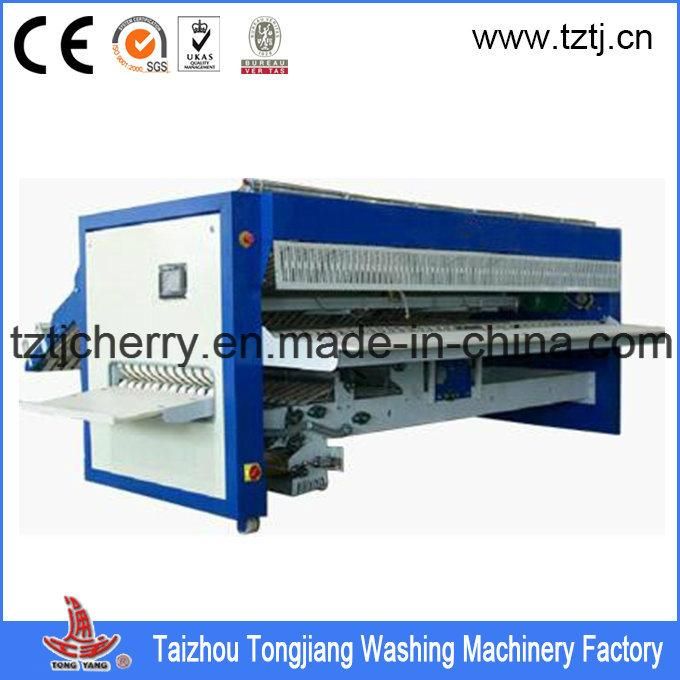

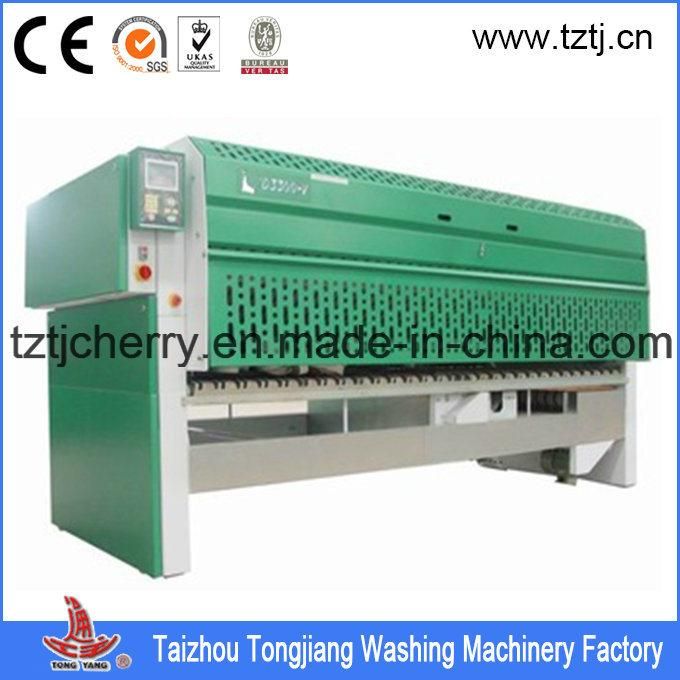

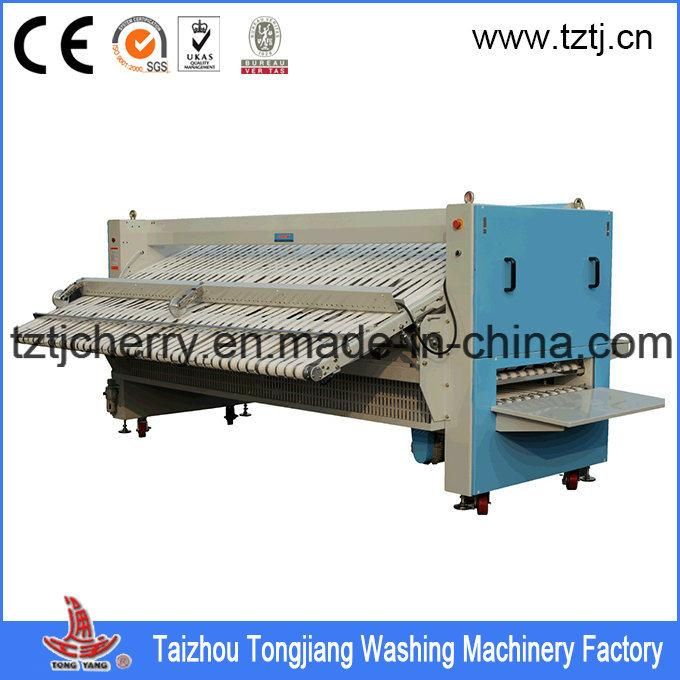

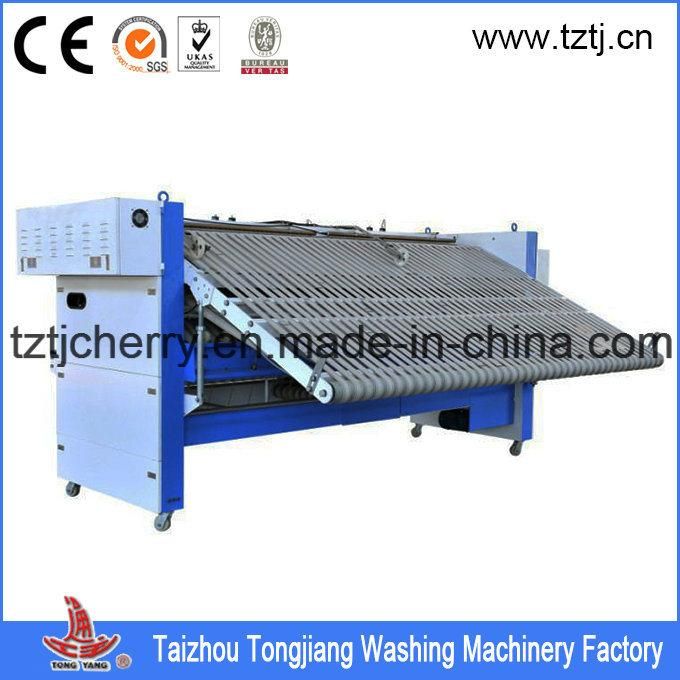

ZD-3300mm industrial folding machine:

    Use large LCD display and intelligent control systems, and has a good all- Chinese interactive interface.

    Complete 5 times in the computer monitor folding, vertical and horizontal fold frequency can be folded fabric range and thickness of free programming.

    Use high intelligence infrared inspection system, the abolition of the traditional mechanical pulse counting device.

    A dual-channel folding function, can improve the small double folding ironing linen capacity and reduce energy consumption.

    Running speed adjustment range, with a variety of appropriate ironing machine match.

    Security protection system with self- diagnostic capabilities, improved detection point from the maintenance function.

    PC board with relay outputs, without intermediate relay, reducing points of failure, and maintenance easy.

    All control components are used in pneumatic components 24V DC low voltage, safe and reliable for easy maintenance.

    Pneumatic control valves are used to control the action fast and reliable, no pollution to the surrounding environment.

    The device is equipped with multiple safety switches, safety and reliability.

    The machine is equipped with two sets of static elimination device, effectively eliminate static electricity.

    This machine adopts folding precision encoder precise control.

    The machine has the ironing machine communication linkage control, with the ironing machine speed is changed.

Model	ZD3000-V	ZD3300-V
Max folding L*W	3000	3300
Max folds(fold)	5	5
Folding Speed(M/min)	50	50
Aire pressure(V/Hz)	380/50	380/50
Motor Power(kw)	1.3	1.3
Compressor air pipe diameter(inch)	G1/2"	G1/2"
Pressure(Mpa)	6.5	6.5
Dimension(mm)	4500*2800*1860	4800*2800*1860
Weight(kg)	1600	1700
