Dw38CNC X 3A-2sv CNC Pipe Bender with Push Bending

Zhangjiagang Baorui Machinery Co., Ltd.
  • Warranty:14 Months
  • Condition:New
  • Certification:SGS
  • Automation:Automatic
  • Raw Material:Pipe
  • Control System:Mustubishi PLC

Base Info

  • Model NO.:DW38CNC X 3A-2SV
  • Extra Services:End Forming
  • Min Bending Radius:1.5 D
  • Function:Push Bending
  • Max Bending Capacity:38 X 2mm
  • Servo Motor:Mustubishi
  • Push Bending Radius:No Limited
  • Drive:Servo Motor
  • Material / Metal Processed:Stainless Steel
  • Trademark:Baorui
  • Origin:Jiangsu, China (Mainland)

Description

    NameUnitData 1Max bending capacitymmΦ38×2t 2

Rolling Bending radius
 Draw bendingRound tube1.5D - 5DRectangular tube2D - 4D3.Roll bendingRound tube6D- Rectangular tube7D- 4Max bending radiusmm180mm 4Max feeding lengthmm2500Can according to customer's requirement5Max bending degreeDegree190 6Control Panel PLC +touch screen 7Bending unit piece33 8Working speedbending speedDeg/sec150 Rotary speedDeg/sec200Rotary fast will be dangerousFeeding speedmm/sec1000 9Accuracyfeedingmm±0.1 rotaryDegree±0.1 bendingDegree±0.1 10Rotary servo motor powerW750Japan Mitsubishi11Feeding servo motor powerKw1Japan Mitsubishi12Bending rolling  servo motor powerKw4Japan Mitsubishi13The accuracy of rollermmMax 50Can according to customer's requirement14Oil motor powerKw4 15Max storage unitsgroup1000Can enlarge according to requirement16Max pressureMPa12Adjustable20Hydraulic control system Magnetic exchange valveJapan Yuken21Oil tankL110 22Oil coolerL/Min150 23voltage 380V, 50HZ, 3 phasesCan according to customer requirements23Machine weightKg1500 24Machine sizemm6850×800×1350 25.Working heightmm1300 26Delivery timedays40 days 27Warranty timemonth14

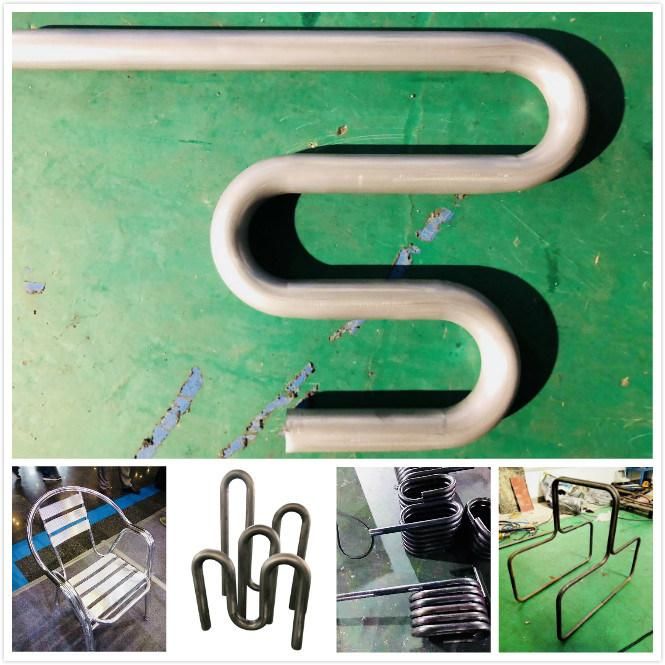

samples
Dw38CNC X 3A-2sv CNC Pipe Bender with Push Bending

After-Sales Service

 1. Our guarantee time is one year, if any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.


2. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by WhatsApp, Skype, Email and Telephone at any time, we provide 24 hours on-line service. Our factory also will make DVD to show the operation steps for the customer.

FAQ

1,Q: Are you a manufacturer or trading company?
      A: We are a manufacturer, We are dedicated to pipe processing equipment manufacturing.

2,Q: Where is the nearest airport and port from your factory?
      A: The nearest airport and port is shanghai.

3,Q:What is the spare parts about the machines?
      A:Pipe bender is seal components and valves.
         Pipe cutter is seal components and saw blades.4,Q:how about the training and installment after we buy your machines?
      A: Our factory can send our engineer to the customer's factory install,commission and training freely. The customer provide the  double trip tickets,food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
Dw38CNC X 3A-2sv CNC Pipe Bender with Push Bending



Company Information

Zhangjiagang Baorui Machinery Manufacture design and manufacture pipe bending machine, CNC bending machine, pipe cutting machine, CNC cutting machine, pipe end forming machine, rolling machine, saw blade sharpening machine, chamfering machine, saw blade sharpening machine, wildly used in all kinds of metal pipe processing.

Our Customer covered furniture making, automobile parts, motorcycle making, shipbuilding ,electronic parts, air-condition, baby car making and so on. And we have exported America, Europe, Africa , Austria, Middle East and whole Asia full of experience

Choose us, cooperate us, we will give you best quality machine and best service.Dw38CNC X 3A-2sv CNC Pipe Bender with Push Bending
