• Usage：Processing All Kinds of Pipes
• Color：Optional
• Transport Package：Iron Shelf and Plywood
• Specification：size is different for different model
• Trademark：Hengyisheng
• Origin：Henan
• HS Code：8462219000
• Production Capacity：8000pieces,Year

Basic Info.

Usage Processing All Kinds of Pipes Color Optional Transport Package Iron Shelf and Plywood Specification size is different for different model Trademark Hengyisheng Origin Henan HS Code 8462219000 Production Capacity 8000pieces/Year

Product Description

Cnc Hydraulic Mandrel Pipe Bender for sale
 The main performance and features:
WG-38/51/76 CNC steel tube bending machine is mainly used for bending different kinds of tube materials, for example round or square mild carbon steel tube,201 or 304 stainless steel tube, rectangular steel tube, aluminum tube, cooper tube or other special shaped steel tube etc. And these machines can bend tubes into different angles from 5 to 180 degrees.

This model is our latest technical achievements of the research and development. Having the following characteristics:

1. Use Micro CNC computer panel control the bending angles and batches.
2. Gear drive is durable and maintenance is convenient, only add grease oil into the gear box.
3. Both thin tube and thick tube are applicable by this machine.
4. Foot switch add CNC operation, make the processing of tube more convenient and quick.





Tube bender technical parameters:

Model	WG-26	WG-38	WG -51	WG-76
Bending diameter range	4-26mm (thickness:2mm)	4-38mm (thickness:2mm)	4-51mm (thickness:2-3mm)	4-76mm  (thickness:2-3mm)
Bending Speed	20°/sec	10-12r/min	4-6r/min	3-5r/min
Max Bending Angle	180	180	180	180
Min Bending Angle	5	5	5	5
Motor power	1.5kw	3kw-4	3kw-4	4kw-4
Power supply	380V,50HZ,3P	380V,50HZ,3P	380V,50HZ,3P	380V,50HZ,3P
Foot switch voltage	DC 5V	DC 5V	DC 5V	DC 5V
Overall dimension	800*650*900	900*800*1000	950*850*1000	1000*900*1100
Total weight	180kg	260kg	320kg	350kg

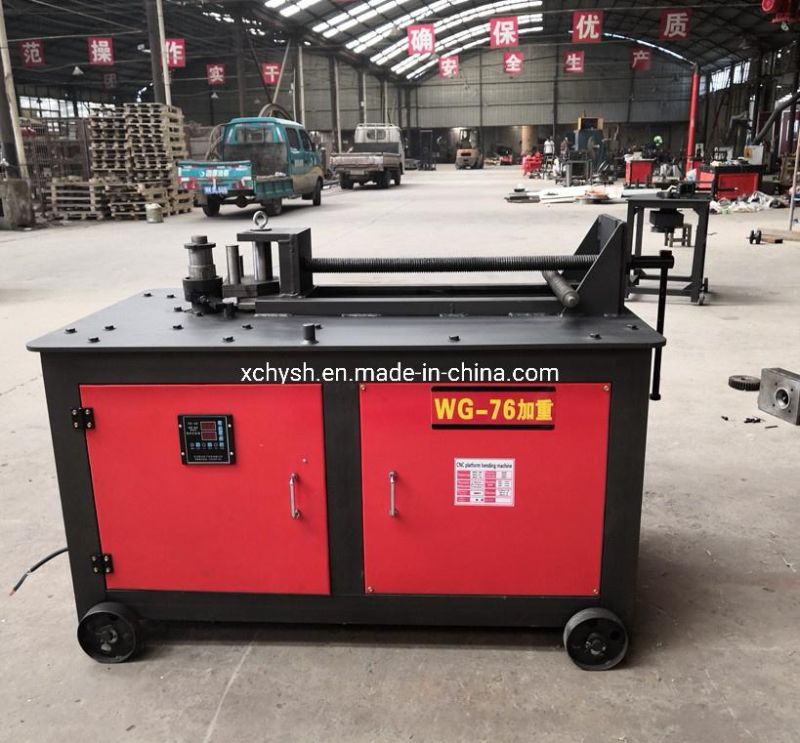

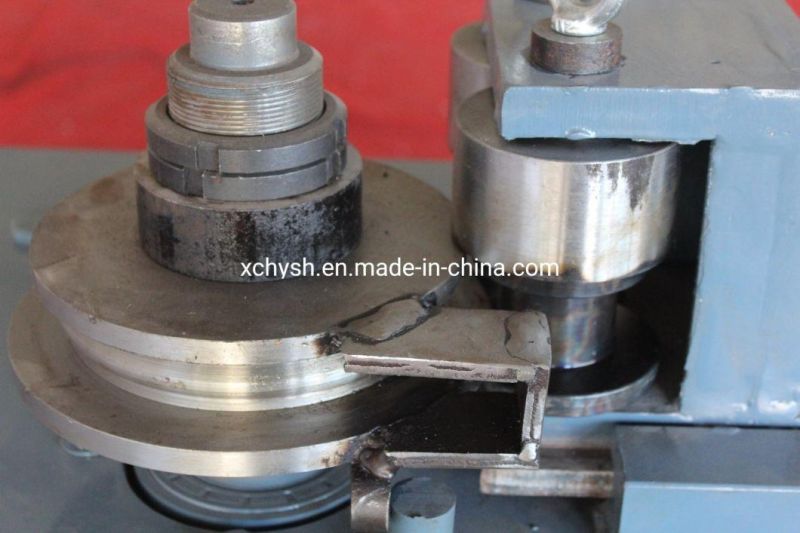

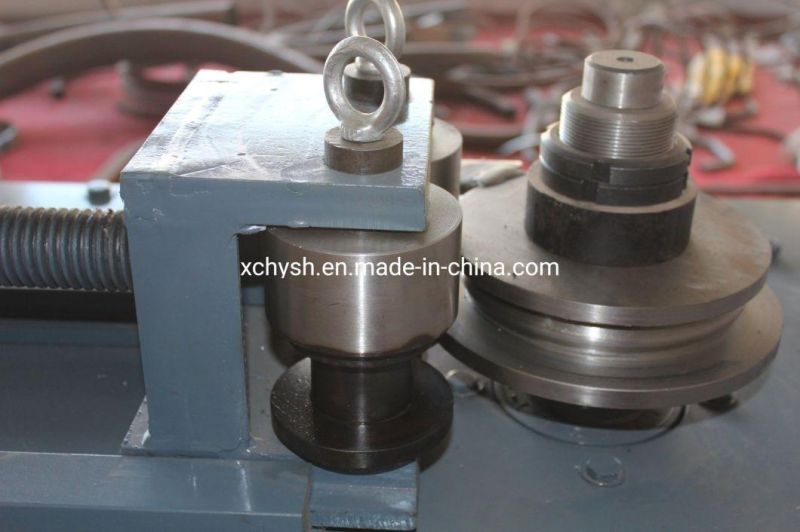

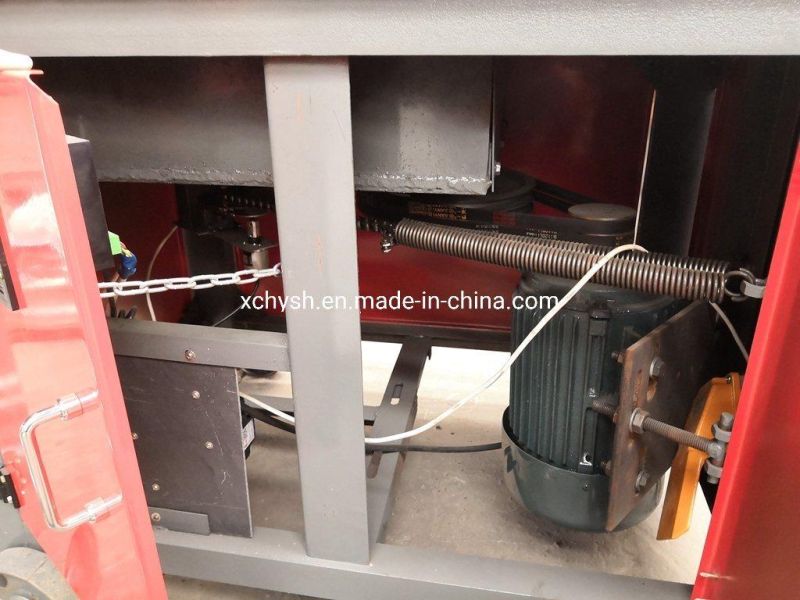

Tuber bender detailed pictures:


 Tube bender FAQ:

Q: What's your payment term?
A: Payment: 40% T/T in advance and balance 60% should be paid before shipment.

Q: What's the delivery time?
A: It is based on order quantity. Normally, our production time is around 10 days after receiving the deposit. The delivery time from our factory to Qingdao port will be within 4 working days after receiving full payment.

Q: How to pack?
A: The machine is first packed in plastic film, then with iron frames and plywood.

Q: What services do you provide?
A: We provide our customers within 2 years warranty and technical support is provided for free.

Q: How to get to your factory?
A: You can fly to Zhengzhou airport, Henan province. We will arrange to pick you up.

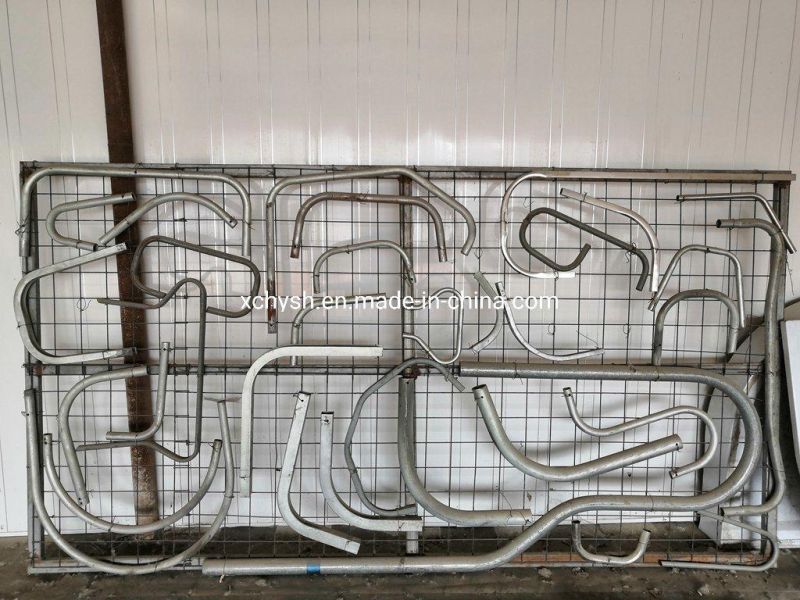

Tube bender  finished pictures:

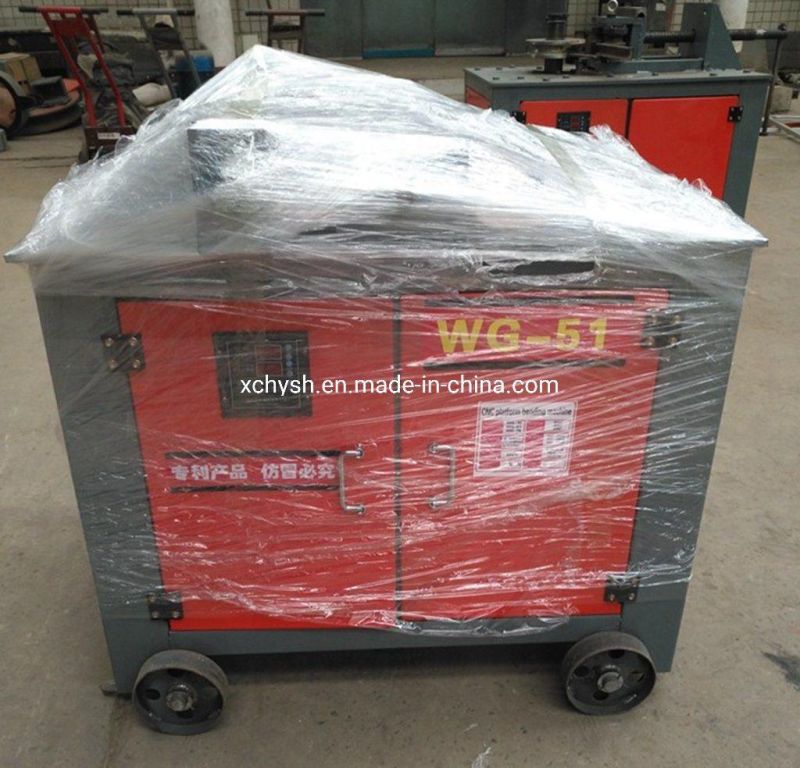

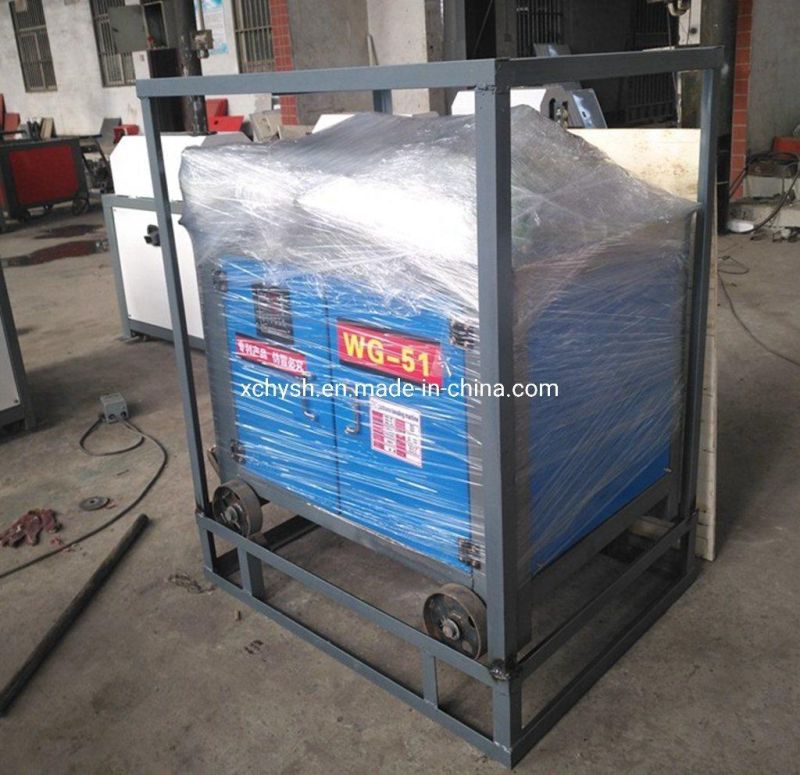

Pipe bender packing and delivery




Company services

1.OEM orders are accepted: We can manufacture machines according to your requirement with your design, logo, color, material and brand information.

2.Constantly service before and after sales:our sales and engineers could provide constantly service for you.

3.Training service: free training is offered if you send for your workers to our factory.

4.Engineers available to provide overseas service: We could send for engineer to construction site to install machine and train workers.

Our customer visiting


Company profile
Xuchang HengYiSheng Commercial Co., Ltd was founded in 1990, our company located in Xuchang City, Henan Province, which are specialized in R&D, manufacturing, marketing machines for nearly 30 years and horse carriages for more than15 years.

Our main products includes CNC stirrup bending machine, rebar straightening and cutting machine, Rebar bender, Rebar cutter, Pipe bending machine, Derusting machine, Royal carriage, Pumpkin carriage, Sightseeing carriage and Rickshaws etc.

HengYiSheng products are equipped with high-quality material and advanced technology. Our products have sold to many countries in Middle East, Asia, Africa, America ect, and got high praise from clients.

The company aims to seek perfect quality, best service and enterprise innovation. We will cooperate with all friends to create a splendid future!
