Hydraulic QC12Y-6*3200 Pendulum Plate Shearing Machine with E10-S
Anhui ZhongDe Machine Tool Co., Ltd.- Warranty:1-year
- Certification:ISO 9001:2000, ISO 9001:2008
- Condition:New
- Control:Semi-Automatic
- Application:Metal
- Power Source:Hydraulic
Base Info
- Layout:Horizontal
- Voltage:380V 50Hz 3phase
- Color:Customised
- Control Axis:2
- Power Type:Hydraulic
- Main Motor:Siemens, Schneider

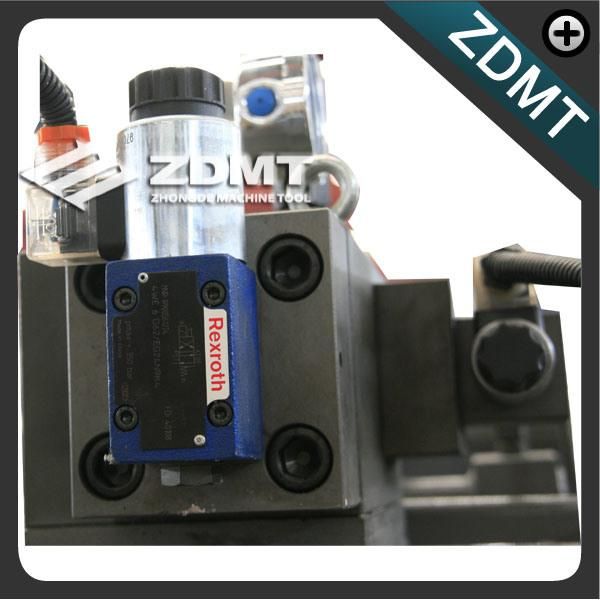

- Hydraulic System:Rexroth, Atos
- Hydraulic Pump:Rexroth Brnd From Germany
- Transport Package:Base Framed by Channel Steel and Plastic Bag
- Specification:1 Unit
- Trademark:ZDMT
- Origin:China(Mainland)
- HS Code:84623990
- Production Capacity:100units,Month
Description
Basic Info.
Layout Horizontal Voltage 380V 50Hz 3phase Color Customised Control Axis 2 Power Type Hydraulic Main Motor Siemens/ Schneider Hydraulic System Rexroth/ Atos Hydraulic Pump Rexroth Brnd From Germany Transport Package Base Framed by Channel Steel and Plastic Bag Specification 1 Unit Trademark ZDMT Origin China(Mainland) HS Code 84623990 Production Capacity 100units/MonthProduct Description

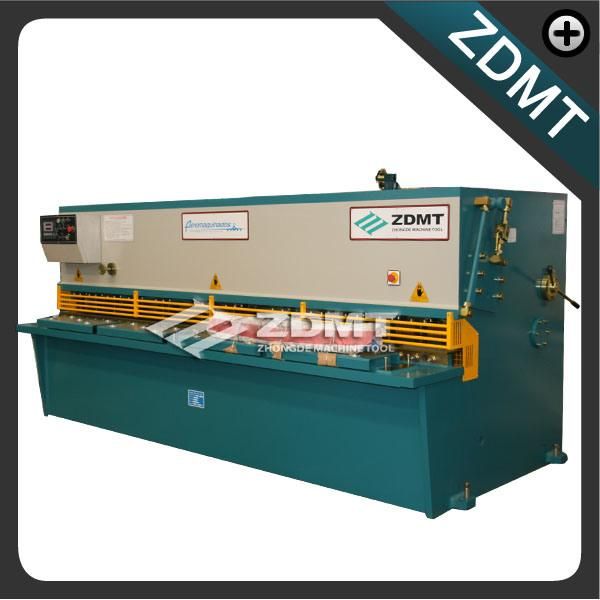

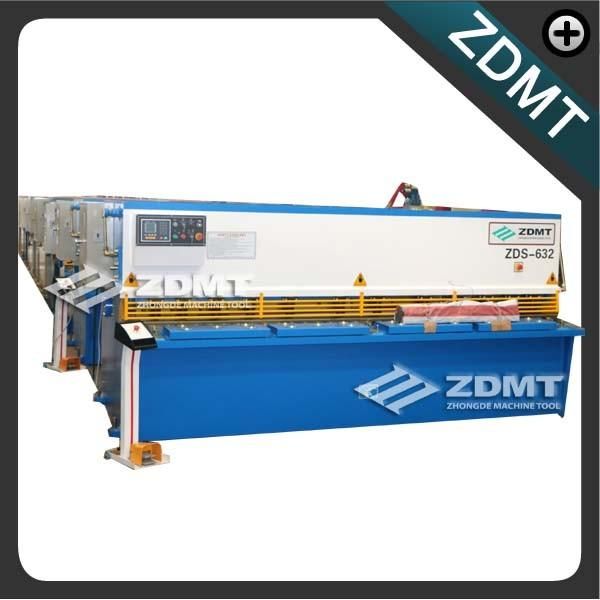

QC12Y-6*3200 NC plate shearing machine with E21-S control backguage position and cut times by programsMaximum thickness: 6mm
Maximum width: 3, 200mm
Plate shears, shearing machine
Employs hydraulically-driven swing beam, the steel plate welded structure and accumulator based pullback cylinder
with steady and reliable operation
Indicator-based adjustment of gap of blade is convenient and fast
Machine is equipped with lighting alignment device and uses step-less control
For the stroke of up tool carrier
Machine uses protection fence for safe operation
E10-S digital display device for size of back gauge and shearing times available
Optional: E200-S CNC controller /Delem DAC-310 for angle setting
Safe light curtain for safety operation
Shear Size (T×W)(mm) | Shear Angle | Strokes(min -1 ) | Backgauge Range (mm) | Main Motoer(kw) | Weight (kg) | Overall Dimensions (L×W×H)(mm) | |
QC12Y-4×2500 | 4×2500 | 1°30' | ≥18 | 20-600 | 7.5 | 4,800 | 3040×1610×1650 |
QC12Y-4×3200 | 4×3200 | 1°30' | ≥14 | 20-600 | 7.5 | 6,400 | 3840×1610×1650 |
QC12Y-4×4000 | 4×4000 | 1°30' | ≥10 | 20-600 | 7.5 | 7,900 | 4640×1705×1700 |
QC12Y-4×5000 | 4×5000 | 1°30' | ≥10 | 20-600 | 7.5 | 16,000 | 5786×2200×2160 |
QC12Y-6×2500 | 6×2500 | 1°30' | ≥18 | 20-600 | 7.5 | 5,500 | 3040×1610×1650 |
QC12Y-6×3200 | 6×3200 | 1°30' | ≥14 | 20-600 | 7.5 | 6,600 | 3840×16100×1650 |
QC12Y-6×4000 | 6×4000 | 1°30' | ≥10 | 20-600 | 11 | 8,500 | 4640×1705×1700 |
QC12Y-6×5000 | 6×5000 | 1°30' | ≥10 | 20-750 | 11 | 16,000 | 5786×2200×2060 |
QC12Y-6×6000 | 6×6000 | 1°30' | ≥10 | 20-800 | 11 | 17,500 | 6730×2500×2090 |
QC12Y-8×2500 | 8×2500 | 1°30' | ≥14 | 20-600 | 11 | 6,000 | 3040×1610×1650 |
QC12Y-8×3200 | 8×3200 | 1°30' | ≥10 | 20-600 | 11 | 7,000 | 3840×1610×1650 |
QC12Y-8×4000 | 8×4000 | 1°30' | ≥8 | 20-600 | 11 | 9,200 | 4680×1705×1700 |
QC12Y-8×5000 | 8×5000 | 1°30' | ≥7 | 20-600 | 15 | 21,000 | 5786×2252×2310 |
QC12Y-8×6000 | 8×6000 | 1°30' | ≥5 | 20-750 | 15 | 28,000 | 6900×2570×2280 |
QC12Y-10×2500 | 10×2500 | 2° | ≥11 | 20-750 | 15 | 8,500 | 3350×2050×1950 |
QC12Y-10×3200 | 10×3200 | 1°48' | ≥10 | 20-600 | 15 | 9,500 | 4050×2050×1950 |
QC12Y-10×4000 | 10×4000 | 2° | ≥12 | 20-600 | 18.5 | 14,500 | 4800×2200×2100 |
QC12Y-12×2500 | 12×2500 | 1°40' | ≥11 | 20-800 | 15 | 8,500 | 3350×2050×1950 |
QC12Y-12×3200 | 12×3200 | 1°40' | ≥10 | 20-600 | 18.5 | 12,500 | 4020×2050×2230 |
QC12Y-12×4000 | 12×4000 | 1°40' | ≥8 | 20-800 | 18.5 | 18,000 | 4820×2400×2300 |
QC12Y-16×2500 | 16×2500 | 2°20' | ≥8 | 20-800 | 18.5 | 11,500 | 3445×2477×1880 |
QC12Y-16×3200 | 16×3200 | 2°20' | ≥7 | 20-800 | 18.5 | 13,800 | 3945×2477×2035 |
QC12Y-16×4000 | 16×4000 | 2°20' | ≥5 | 20-800 | 18.5 | 15,300 | 4745×2477×2035 |
QC12Y-20×2500 | 20×2500 | 2°30' | ≥6 | 20-800 | 30 | 16,000 | 3440×2088×2570 |
QC12Y-20×3200 | 20×3200 | 2°30' | ≥5 | 30-800 | 30 | 18,000 | 4150×2350×2710 |
QC12Y-20×4000 | 20×4000 | 2°30' | ≥5 | 30-1000 | 37 | 21,000 | 4920×2400×2730 |
QC12Y-20×5000 | 20×5000 | 2°30' | ≥4 | 20-800 | 37 | 30,000 | 5900×3000×3300 |
QC12Y-25×2500 | 25×2500 | 3° | ≥5 | 40-800 | 37 | 21,000 | 3500×2400×2500 |
QC12Y-25×3200 | 25×3200 | 3° | ≥4 | 40-1000 | 37 | 26,000 | 4200×2400×2500 |
