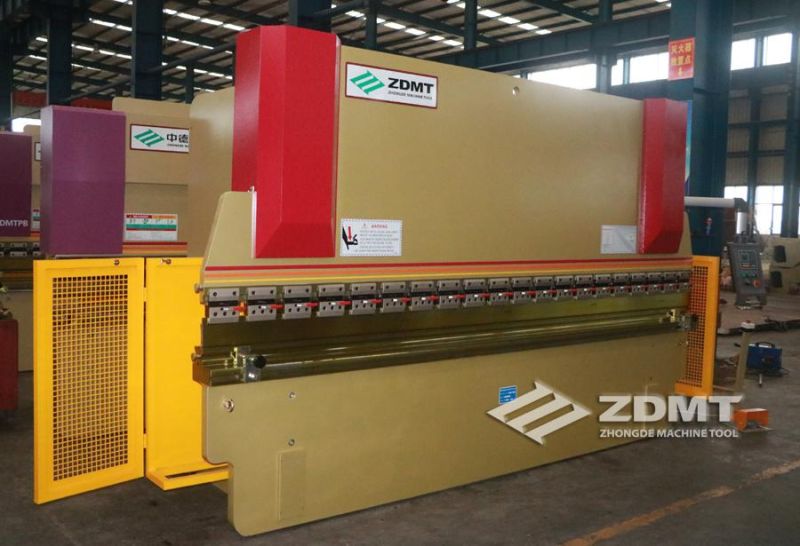

Wc67k Series Hydraulic Press Brake (WC67K-160T3200mm)
Anhui ZhongDe Machine Tool Co., Ltd.- Warranty:1-year
- Condition:New
- Certification:ISO 9001:2008, CE, SGS
- Automation:Automatic
- Suitable for:Aluminum, Carbon Steel, Stainless Steel
- Type:Press Brake
Base Info
- Model NO.:WC67K-160T3200mm with NC controller(E200)
- Color:as Per Your Request
- Voltage:as Per Your Request
- Control Axis:2
- Power Type:Hydraulic
- Transport Package:Plastic Package with Steel Channel Bottom
- Specification:ISO9001: 2000; CE
- Trademark:ZDMT
- Origin:Maanshan, Anhui
- HS Code:84622990
- Production Capacity:100units,Month
Description
Basic Info.
Model NO. WC67K-160T3200mm with NC controller(E200) Color as Per Your Request Voltage as Per Your Request Control Axis 2 Power Type Hydraulic Transport Package Plastic Package with Steel Channel Bottom Specification ISO9001: 2000; CE Trademark ZDMT Origin Maanshan, Anhui HS Code 84622990 Production Capacity 100units/MonthProduct Description
Norminal pressure: 1600KN
Percessing length: 3200mm
Vertical distance: 2640mm
Throat depth: 320mm
Stroke: 200mm
Stroke times: 6 tims/min
Max. Opening height: 470mm
Main motor power 11KW
Overall dimension: 3270*1625*2640mm
Gross weight: 10000kg
Main features:
Stable steel-welded structure snd stress elimination by vibration;
Strong torsion bar design, ensuring the synchronous movement of ram stroke;

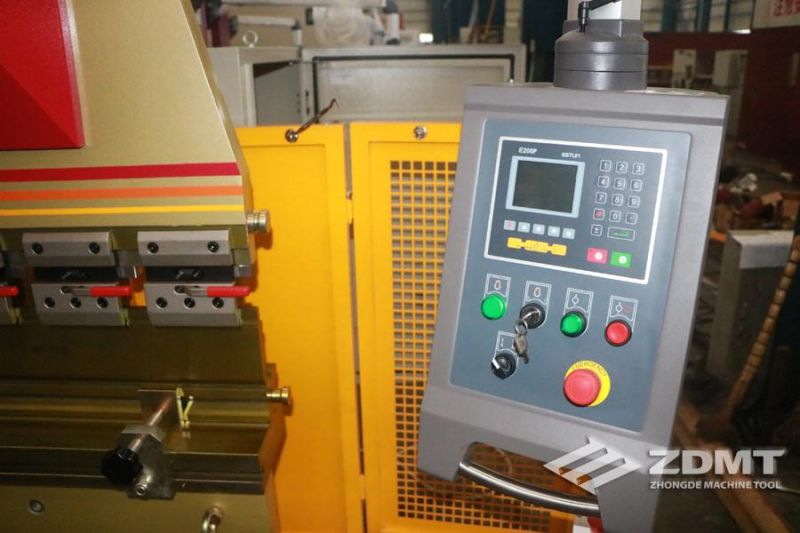

Economical NC controller for X, Y to acheive high production efficiency and parts of precision; Reliable prformance; Easy operaion;
Variable frequency motor or servo motor to assure the machine faster speed, lower noisy; And higher precision.
