• Model NO.：WC67K-100x3200
• Type：Press Brake
• CNC System：E200, Da41
• Application：Machinery & Hardware,
• Type for Fold-bending Machine：Hydraulic Fold-bend Machine
• Type for Cutting Machine：Hydraulic Bending Machine
• Transport Package：Steel Pallet
• Specification：CE STANDARD
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：200units,M

Basic Info.

Model NO. WC67K-100x3200 Type Press Brake CNC System E200, Da41 Application Machinery & Hardware, Type for Fold-bending Machine Hydraulic Fold-bend Machine Type for Cutting Machine Hydraulic Bending Machine Transport Package Steel Pallet Specification CE STANDARD Trademark HAVEN Origin China HS Code 8462 Production Capacity 200units/M

Product Description

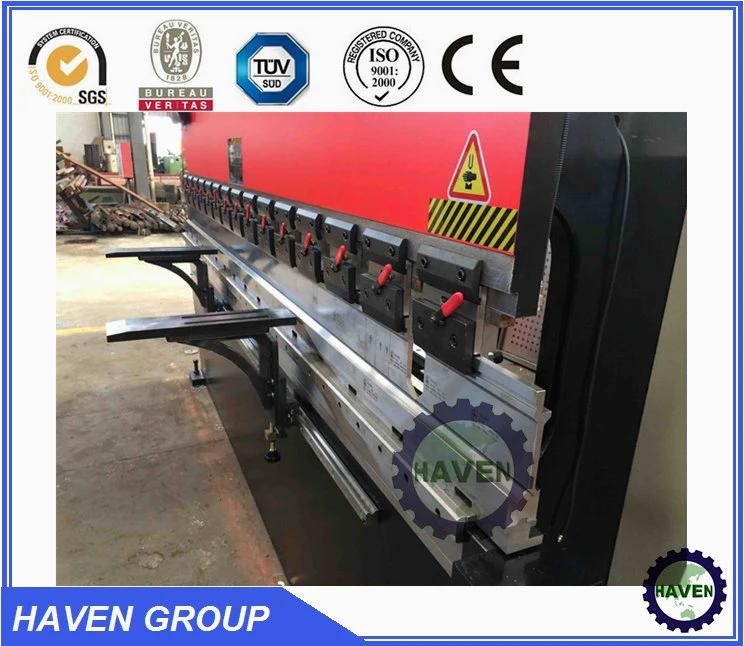

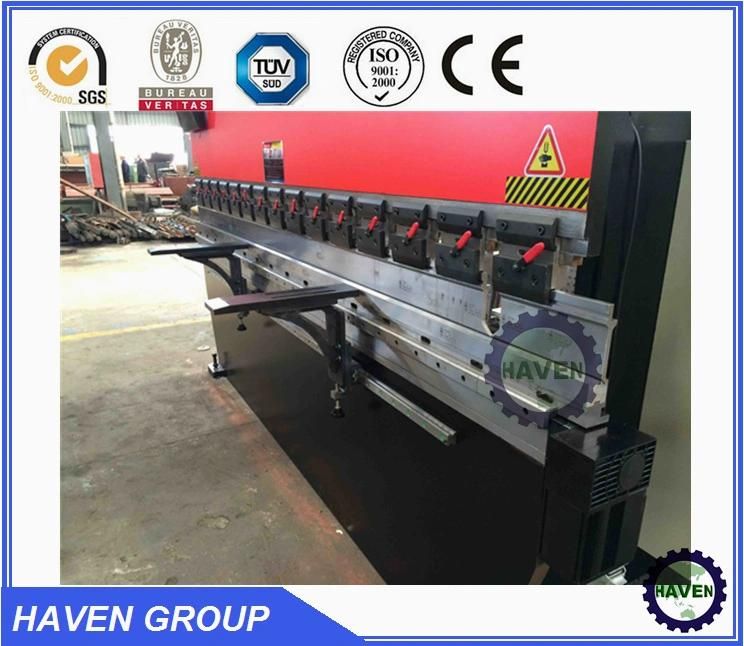

E200 CNC system Hydraulic press brake







Main functions:
All steel welded structure, stress relieved for high rigidity and stability
Torsion shaft forced synchronization of mechanical limit stopper balance, with high precision
Integrated hyrdraulic transmission system, large range of speed regulation thanks to transmission of
The sliding block, stable and reliable performance
Rear stopper and the sliding block have electrical adjustment for the stroke, with manual fine tuning, and digital indication
Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect of upper punch
Retainer is fitted with tilting warp offset mechanism
For bending machine from 250Tup synchronization mechanism of mechanical or electrical hydraulic transmission is fitted,
Lower working table is fitted with warp offset mechanism
Multi machine combined operation is possible
Standard accessories:
The back and side safety guard;
Chinese good gear pump, Amerisia OMG valve, Japanese sealing rings;
E10 LCD Digital, normal screw, CE electric;
Back gauge with function of swift off when the back guard is opened;

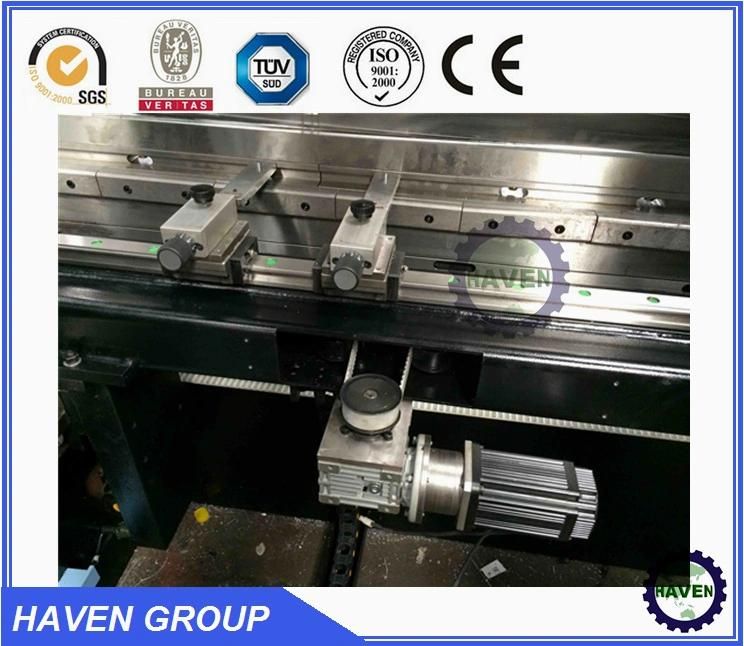

Electric back gauge
Machine has been improved according to European customer suggestions;
Optional accessories:
Light curtain;
Quick clamping device;
Ball screw and servo motor;
Bottom of machine with body processing straight;

Model No.	Normal Pressure (KN)	Length Of table(mm)	Distance Between Housing(mm)	Throat Depth (mm)	Stroke (mm)	Open Height(mm)	Motor Power(Kw)	Net Weight(Kg)	Size(LxWxH )(Cm)
WC67Y-63/2500	630	2500	2000	320	150	400	5.5	5000	286x165x235
WC67Y-63/3200	630	3200	2700	320	150	400	5.5	5500	380x165x245
WC67Y-80/2500	800	2500	2000	320	150	400	5.5	5500	286x165x235
WC67Y-80/3200	800	3200	2700	320	150	400	7.5	6500	380x165x245
WC67Y-100/3200	1000	3200	2700	400	180	460	7.5	7500	381x175x248
WC67Y-125/3200	1250	3200	2700	400	180	460	7.5	8200	382x180x250
WC67Y-125/4000	1250	4000	3200	400	180	460	7.5	9000	460x180x256
WC67Y-160/3200	1600	3200	2700	400	180	460	11	10800	383x203x256
WC67Y-160/4000	1600	4000	3200	400	180	460	11	11500	461x203x270
WC67Y-200/3200	2000	3200	2700	400	180	460	11	12500	390x205x256
WC67Y-200/4000	2000	4000	3200	400	180	480	11	13800	462x205x275
WC67Y-200/6000	2000	6000	4800	400	180	480	11	18500	605x230x320
WC67Y-250/3200	2500	3200	2700	400	200	480	15	15000	390x210x265
WC67Y-250/4000	2500	4000	3200	400	200	560	15	16000	462x210x280
WC67Y-250/5000	2500	5000	4000	400	250	560	15	18500	509x257x310
WC67Y-250/6000	2500	6000	4800	400	250	560	15	20000	608x257x330
WC67Y-300/4000	3000	4000	3200	400	250	560	22	19000	408x230x320
WC67Y-300/5000	3000	5000	4000	400	250	560	22	23000	510x240x360
WC67Y-300/6000	3000	6000	4800	400	250	630	22	27000	615x250x360
WC67Y-400/4000	4000	4000	3200	400	320	630	30	27000	410x275x360
WC67Y-400/5000	4000	5000	4000	400	320	630	30	32000	510x275x380
WC67Y-400/6000	4000	6000	4800	400	320	630	30	38000	615x275x400
WC67Y-500/4000	5000	4000	3200	400	320	630	37	40000	415x350x398
WC67Y-500/5000	5000	5000	4000	400	320	630	37	45000	515x360x470
WC67Y-500/6000	5000	6000	4800	400	320	630	37	45000	615x362x520
WC67Y-600/5000	6000	5000	4000	500	320	630	45	50000	515x380x520
WC67Y-600/6000	6000	6000	4800	500	320	630	45	68000	615x444x550
WC67Y-800/5000	8000	5000	4000	500	350	800	55	75000	516x450x530
WC67Y-800/6000	8000	6000	4800	500	350	800	55	85000	620x492x580
WC67Y-1000/6000	10000	6000	4800	500	400	800	55	10500	650x494x630
