• Model NO.：GJH1625
• Layout：Vertical
• Transport Package：Wooden Case
• Specification：1625
• Trademark：GJH
• Origin：Shandong China
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. GJH1625 Layout Vertical Transport Package Wooden Case Specification 1625 Trademark GJH Origin Shandong China Production Capacity 100 Sets Per Month

Product Description

1625/1825/ Oscillating vibration knife cnc cutting machine
from professional CNC machine manufacturer




1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance;
2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;
3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.
4. Digital cutting machine was designed easy to install, set-up and operate;
5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine.

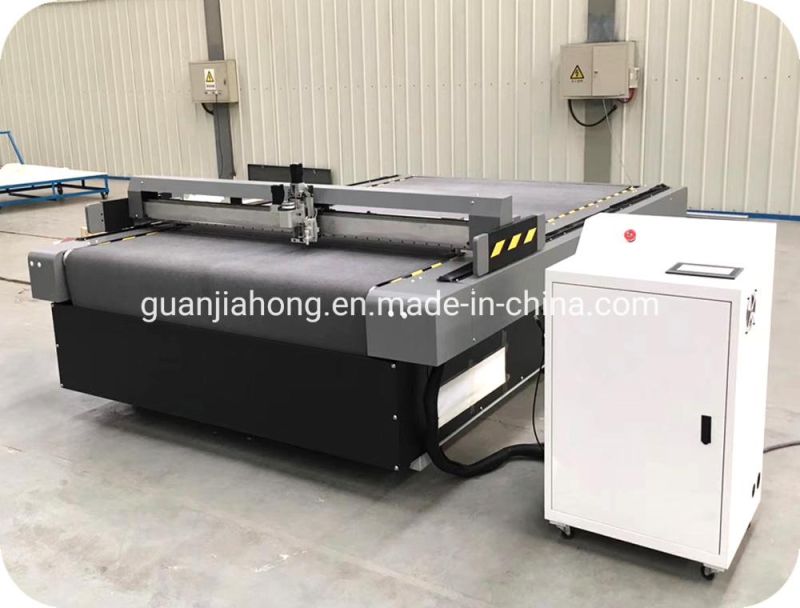

Machine shows:

Technical parameters / model	GJHZDD-1625
Effective working area	1600x2500mm
Multifunctional tool	Vibration knife full cutting, half cutting, indentation, drawing mark, cursor positioning, camera positioning edge seeking cutting, high-power active round knife
Safety device	Infrared induction, mechanical limit safe and reliable
Cutting speed	100-2000mm/s
cutting thickness	≤30mm, other thickness can be customized according to material
Applicable materials	PU leather floor leather, density board, cardboard, fur, fur, carbon cloth, glass fiber cloth, foam carbon fiber composite, and other metals except 3 cm below the flexible material
Material fixing method	Vacuum partition adsorption
Drive system	Delta servo motor, linear guide rail, synchronous belt, lead screw
Rated voltage	380V ± 10% / 220V ± 10% optional
Control system	LCD touch screen in Chinese and English
Operating environment	Temperature 0-40 ° C humidity 20% - 80% RH
Supporting file formats	CAD AI, PLT, DXF, CDR, etc
Single head configuration	Pneumatic knife (additional head can be added)
Screw	Taiwan PMI
Frame structure	Seamless square steel 6mm
Vibrating knife assembly motor	Delta servo motor, Taiwan
Cutting pad	Imported felt from Netherlands
Intelligent detection	Self developed software testing
Platform design	High precision honeycomb aluminum alloy eight zone adsorption platform
Repeatability	0.05mm
Repeated cutting accuracy	+ - 0.1mm
Motor brand power	Delta servo motor, 2sets*100W, 3sets*400W
Blade	High strength tungsten steel blade, different specifications can be selected according to different materials

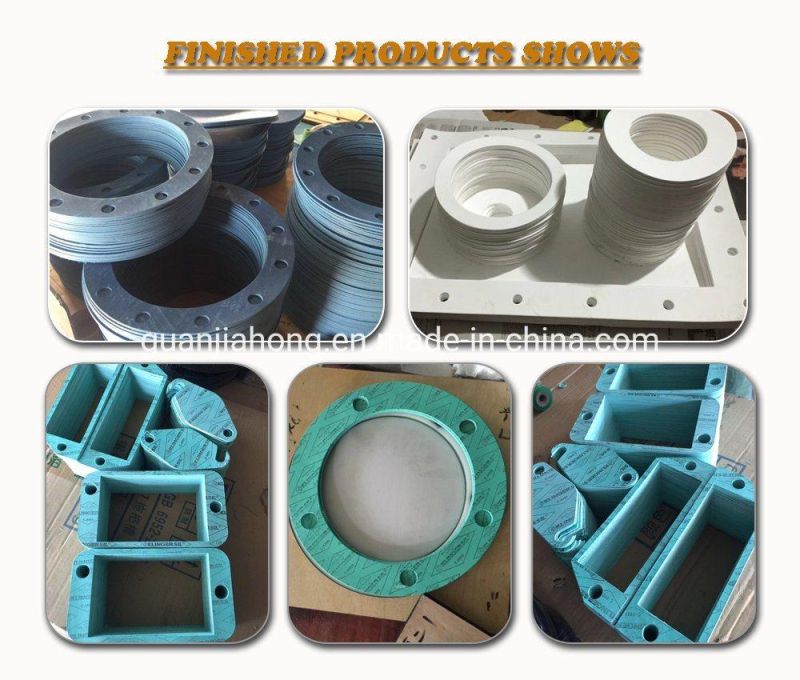

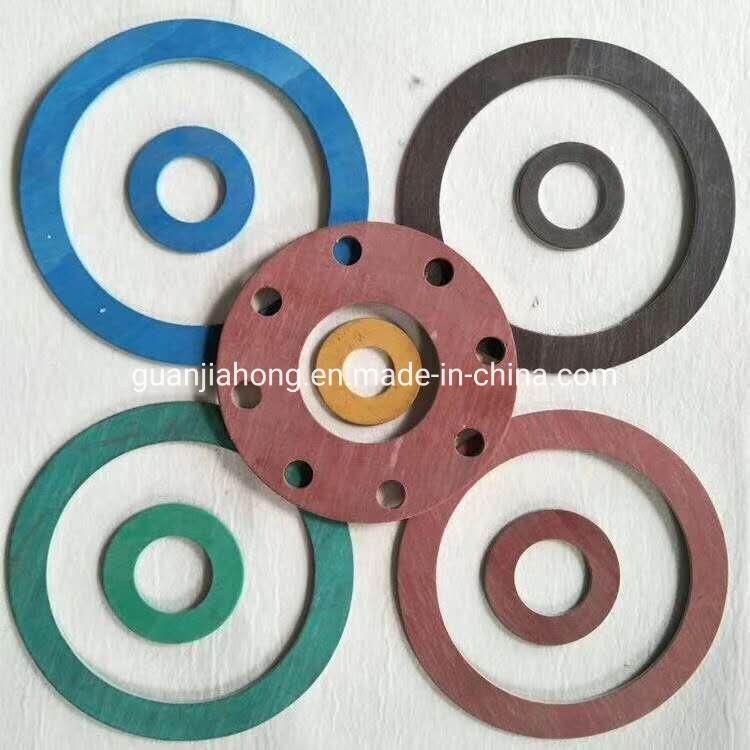

This machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam board,rubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics,seat cover, carpets/rugs, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.

Sincerely waiting for your any inquiry, and trust that we can provide you professional suggestions.


Guarantee & After-sale service
1.One year warranty under normal use and we supply lifelong maintenance.
2.24 hours technical support by Phone, Email, Skype, Msn, or romote.
3.Free training to make sure you master the operation of the cnc router.
OEM Service Available
1.Usually, we will manufacturer the machine as our regular design.
2.X Y Z Working Area could be custmer-oriented designing.
3.Special configuration could be customer-oriented designing.
