• Model NO.：HG-B60T
• Feeding Side：1 or 2
• Cylinders：Two
• Columns：Four
• Cutting Area：810*1400mm
• Cutting Force：60tons
• Control：by Computer Control, PLC Control
• Automatic Grade：Manual to Automatic
• Suitable for Material：Sponge,Foam,Plastic,Leather,EVA,EPE,PS,PVC,PE etc.
• Transport Package：Plastic Film or Packed in Wooden Cases
• Specification：CE
• Trademark：honggang
• Origin：Guangdong Foshan
• HS Code：847780000
• Production Capacity：3000sets,Years

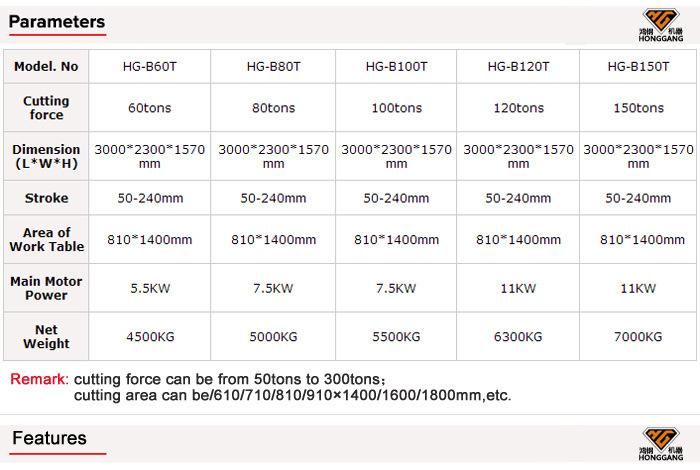

Basic Info.

Model NO. HG-B60T Feeding Side 1 or 2 Cylinders Two Columns Four Cutting Area 810*1400mm Cutting Force 60tons Control by Computer Control, PLC Control Automatic Grade Manual to Automatic Suitable for Material Sponge,Foam,Plastic,Leather,EVA/EPE/PS/PVC/PE etc. Transport Package Plastic Film or Packed in Wooden Cases Specification CE Trademark honggang Origin Guangdong Foshan HS Code 847780000 Production Capacity 3000sets/Years

Product Description

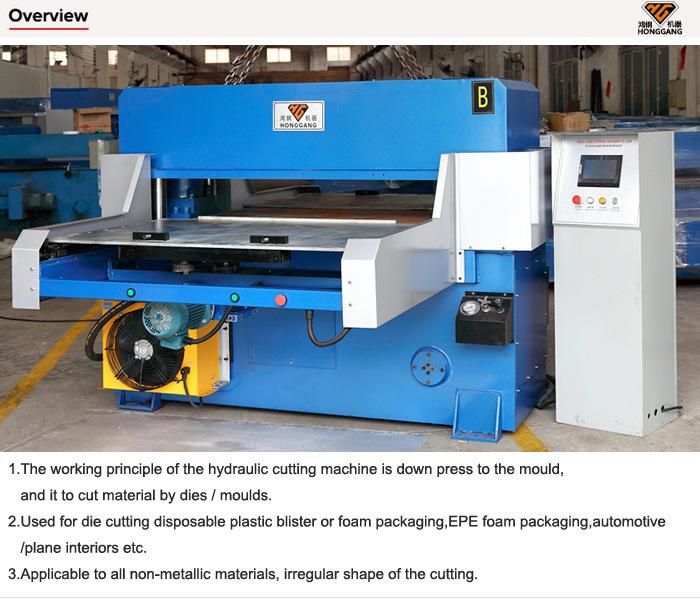

Hydraulic Automatic Feed Cloth, Leather Cutting Machine (HG-B60T)

1.Product description


1.Controlled by PLC(Programmable Logic Controller), with touching screen, to set and micro-adjust working pressure, cutting depth, feeding speed easier, faster and more precise.

2.Double automatic working tables, increases the output twice or triple.

3.Auto-balance structure of double-cylinder, four-column and self-balance connecting rod, makes sure equal pressure in any working area.

4.Powered by hydraulic system, slow down when the cutting die touches material, to confirm the precision between upper and bottom for thick materials.

5.Central automatic lubrication system, increases machine durability, prolong the working time.

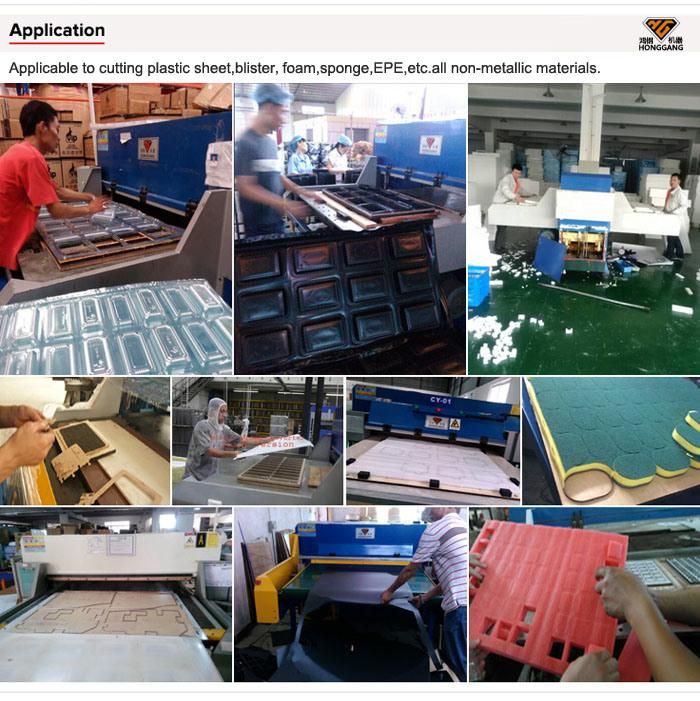

2.Application

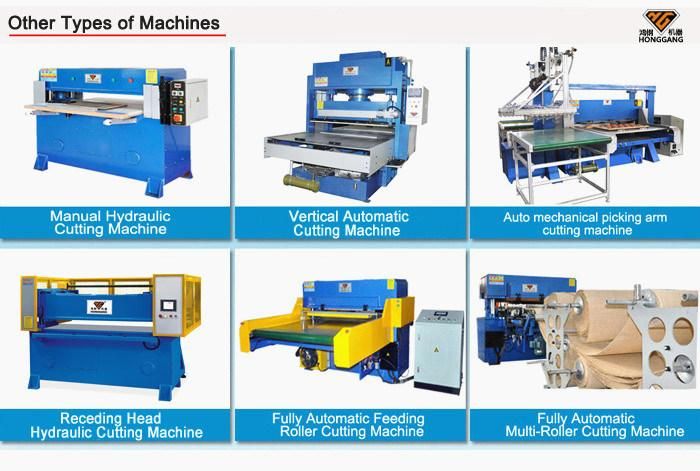

3.Other types of machines

4.Trading show

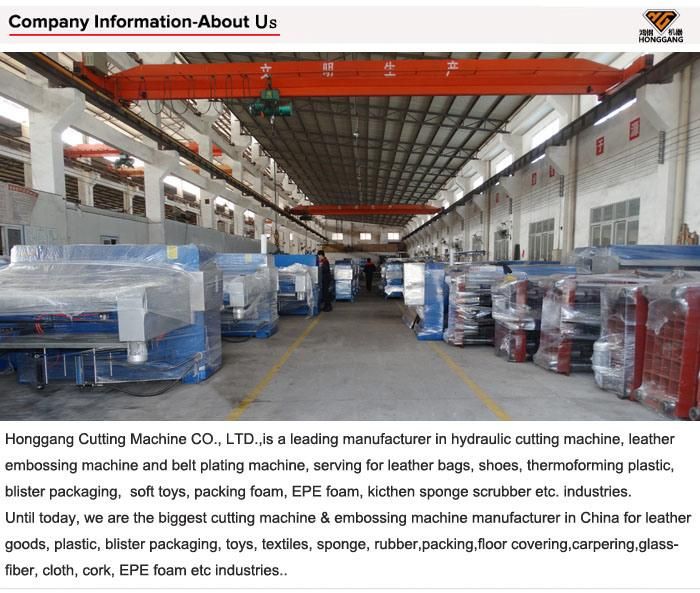

5.About us

6.contact us

If you are not sure if your material can be cut by this cutting machine,we want to know the product information:

Material:
Max. material width:
Max. material thickness:
Max.cutting length:
