Cutting & Fold-bend Machine

6mm Thickness Metal Sheets Hydraulic CNC Plate Shearing Machine for Sale

Anhui Aoxuan Heavy Industry Machine Co., Ltd.
  • Automation:Automatic
  • Certification:CE, ISO 9001:2000, ISO 9001:2008, EPA, CS, RoHS
  • Condition:New
  • Warranty:2 Years
  • Raw Material:Sheet , Plate Rolling
  • Material / Metal Processed:Carbon Steel

Base Info

  • Model NO.:QC12K-6X2500
  • Control System:E21s Controller System
  • Power:CNC
  • Machine Type:Hydraulic Shearing Machine
  • Max Cutting Thickness:6mm
  • Max Cutting Length:2500mm
  • Max Material Strength:450kn,Cm
  • Stopper Adjust Range:20-500mm
  • Stroke Times:15 Times,Min
  • Main Motor:7.5 Kw
  • Weight:4 T
  • After-Sales Service Provided:Engineers Available to Service Machinery Overseas
  • Transport Package:Fumigation Wooden Box
  • Specification:3150MM(L)X1550MM(W)X1550MM(H)
  • Trademark:Aoxuan
  • Origin:Maanshan
  • HS Code:8462312000
  • Production Capacity:1000sets,Year

Description

Basic Info.

Model NO. QC12K-6X2500 Control System E21s Controller System Power CNC Machine Type Hydraulic Shearing Machine Max Cutting Thickness 6mm Max Cutting Length 2500mm Max Material Strength 450kn/Cm Stopper Adjust Range 20-500mm Stroke Times 15 Times/Min Main Motor 7.5 Kw Weight 4 T After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Fumigation Wooden Box Specification 3150MM(L)X1550MM(W)X1550MM(H) Trademark Aoxuan Origin Maanshan HS Code 8462312000 Production Capacity 1000sets/Year

Product Description

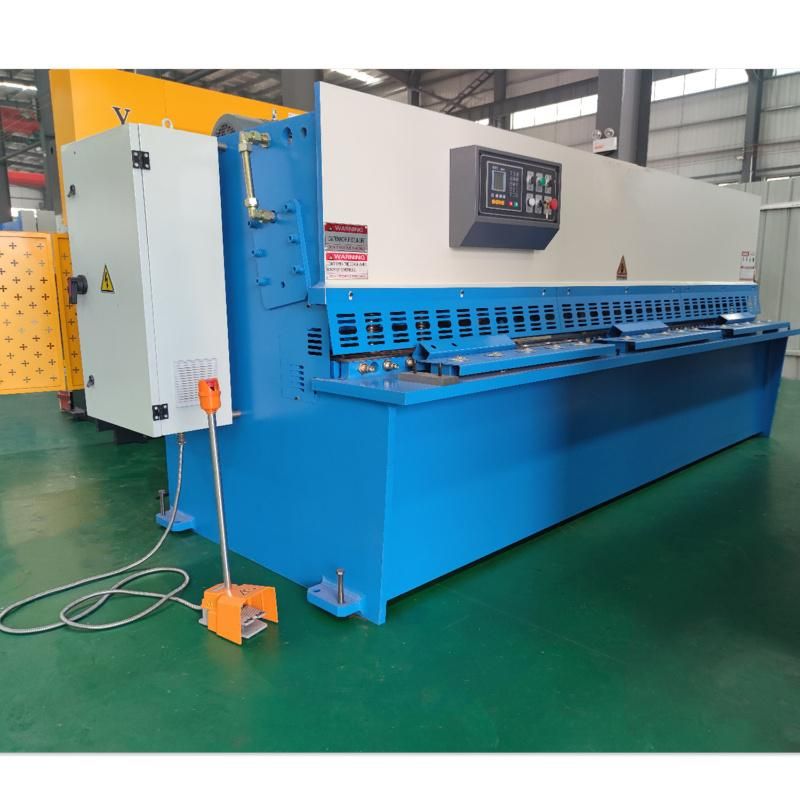

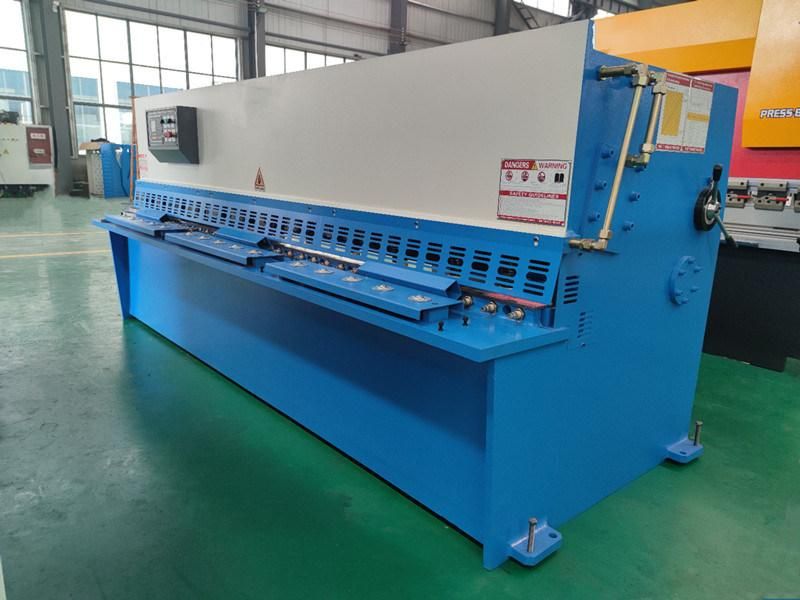

6mm Thickness Metal Sheets Hydraulic CNC Plate Shearing Machine for Sale
 Features:
1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.Our engineers utilize parametric 3D SolidWorks using FEM & DOE analysis as well as static and mechanism analysis.
3.Our Hydraulic Shearing Machine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.

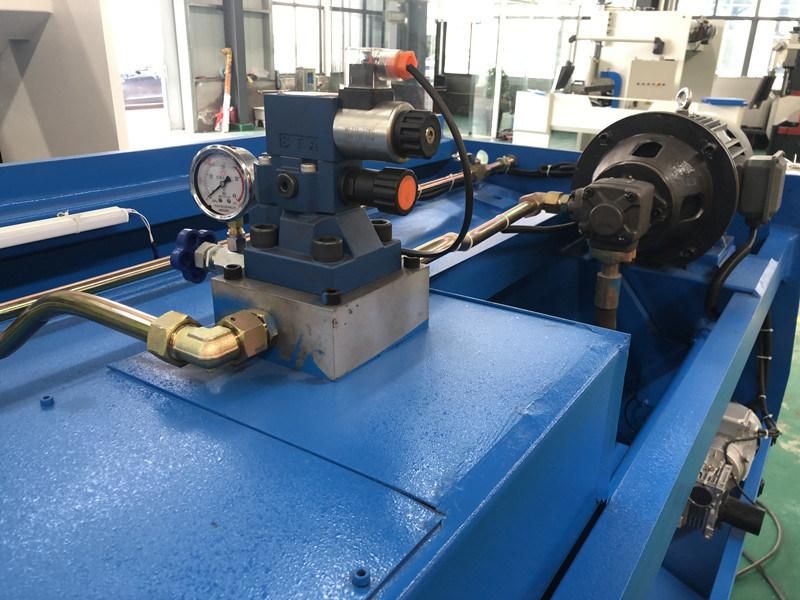

4. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany.
5. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
6. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
7. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard.
8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
6mm Thickness Metal Sheets Hydraulic CNC Plate Shearing Machine for Sale6mm Thickness Metal Sheets Hydraulic CNC Plate Shearing Machine for Sale

The standard cofiguration:
Equipment:
1. Rapid and precise blade clearance adjustment by single handle on the side frame
2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel
3. Cutting Line Illumination and wire for shadow line cutting
4. Counter of Strokes, Cutting Length Adjustment
5. Hydraulic and Electrical overload protection
6. Squaring Arm and Front Support Arms

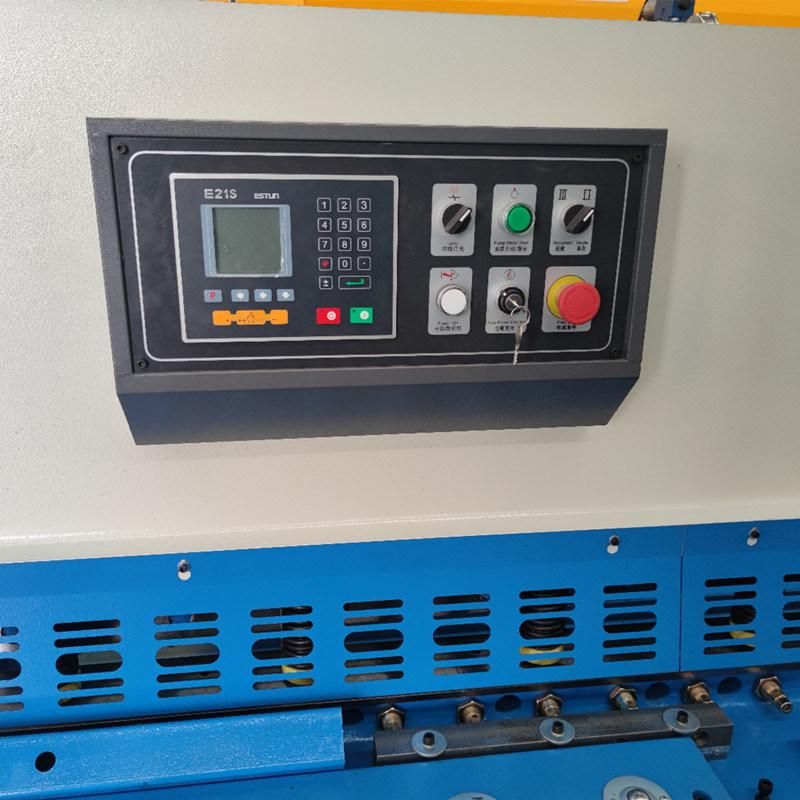

7. E21S controller system
8. Germany Bosch-Rexroth Hydraulic
9. Telemecanique/SchneiderElectrics
10. Hydraulic and Electrical overload protection
11. Delta inverter with ball screw and polished rod with 0,05 mm accuracy.
12. Side guard is standard meeting CE regulations.

6mm Thickness Metal Sheets Hydraulic CNC Plate Shearing Machine for Sale

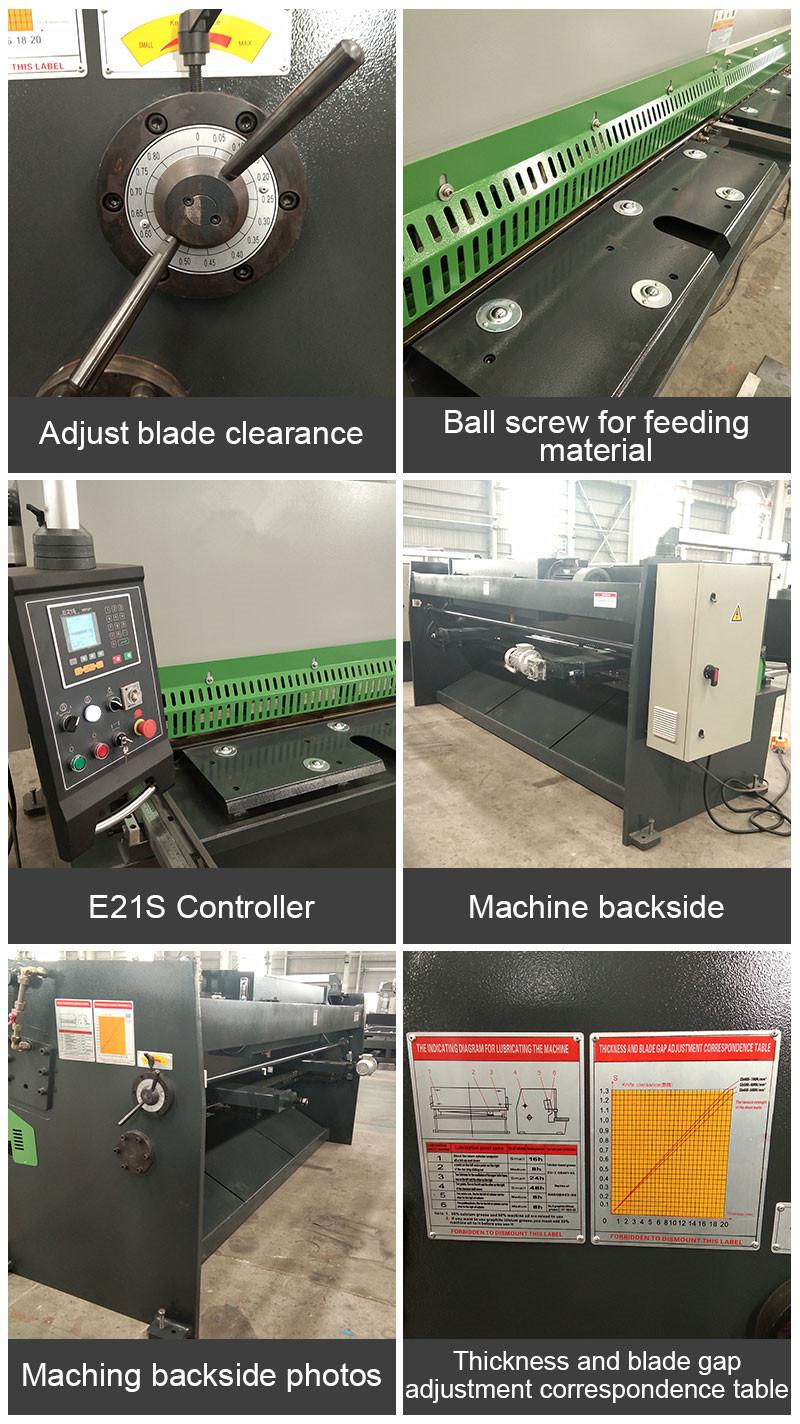

Details:
6mm Thickness Metal Sheets Hydraulic CNC Plate Shearing Machine for Sale6mm Thickness Metal Sheets Hydraulic CNC Plate Shearing Machine for Sale

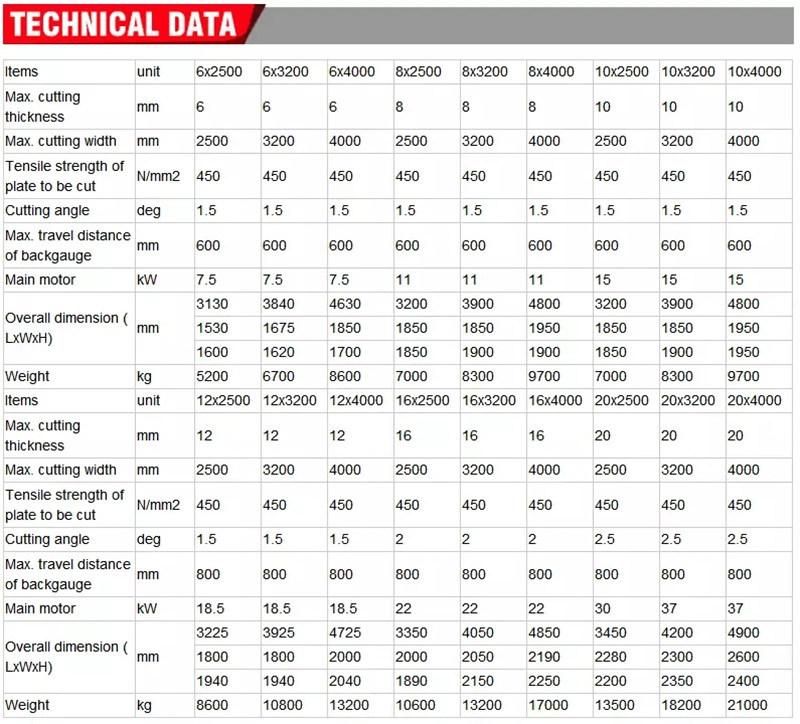

Technical Parameters:
6mm Thickness Metal Sheets Hydraulic CNC Plate Shearing Machine for Sale

Certifications:
6mm Thickness Metal Sheets Hydraulic CNC Plate Shearing Machine for Sale

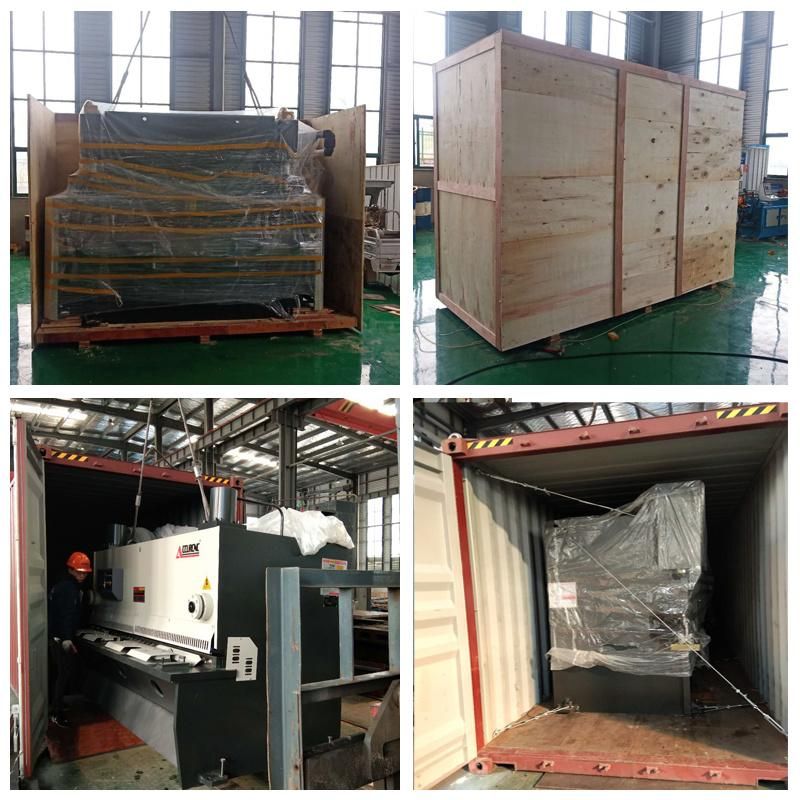

Packing Detail:
Each Hydraulic Shearing machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Delivery Detail:
Shipped in 30 days after payment
6mm Thickness Metal Sheets Hydraulic CNC Plate Shearing Machine for Sale

Our Service
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sales.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.

Our Company:
6mm Thickness Metal Sheets Hydraulic CNC Plate Shearing Machine for Sale

Our workshop:
6mm Thickness Metal Sheets Hydraulic CNC Plate Shearing Machine for Sale
Customer & EXPO:
6mm Thickness Metal Sheets Hydraulic CNC Plate Shearing Machine for Sale
FAQ:
1. Are you the manufacture?Can we visit your factory?
We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.
And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.

2.What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.
Our main foreign market are Asia, North America, Europe, Africa.

3. What are the advantages of your machines?And how can i believe the quality of your product?
The main configuration is to import quality products, and Professional product quality inspection teamensure machine in top-quality,
precision and life. For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system
and so on. Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?
Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem
or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect. Buyer pays 30% by T/T to start this order, rest 70%paid before shipment.

7.Are you provide product metal parts and provide us technical guidance?
Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.
Our technical staff can go abroad to provide you with technical guidance.

8. How long is your warranty?
13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized?
we accept kinds of customized ,including logo and machine.
