• Model NO.：HPB-300,1600
• Type：Press Brake
• Capacity：3000KN
• worktable lenth：1600
• pressure：30
• trval：300+400
• table size：600X1550
• package size：260X95X275
• Net：5800
• Transport Package：Veneer Box
• Specification：Force: 30t
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：50 Units,Month

Basic Info.

Model NO. HPB-300/1600 Type Press Brake Capacity 3000KN worktable lenth 1600 pressure 30 trval 300+400 table size 600X1550 package size 260X95X275 Net 5800 Transport Package Veneer Box Specification Force: 30t Trademark HAVEN Origin China HS Code 8462 Production Capacity 50 Units/Month

Product Description

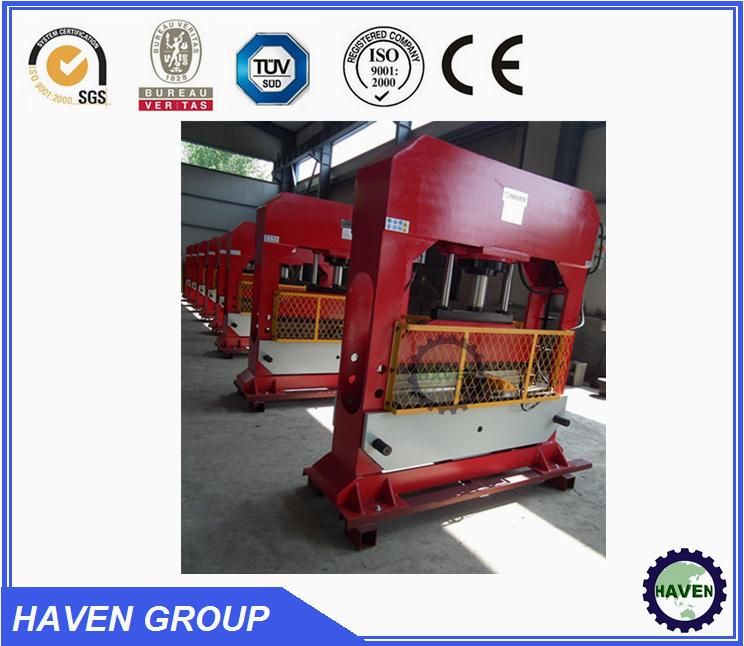

HPB series hydraulic bending machine




Feature:
With the function of braking
With adjustable work table
Extremely torsion-proof steel weldment
Reliable high-accurate hydraulic system
Hydraulic press include replaceable top tools V-block and support table with stops.
Table can be lifted through a chain driven by the main cylinder
Micro-switch for traverse adjustment
Operating: Semi-automatic, fully automatic
Specification:

Model	Capacity	Worktable lenth	Pressure	Trval	Table size	Net weight
HPB-20/490	200	490	25	200+270	300x450	550
HPB-30/580	300	580	25	200+270	300x550	650
HPB-50/790	500	790	25	220+405	400x750	1100
HPB-63/790	630	790	25	220+405	400x750	1200
HPB-1010/100	1000	1010	30	250+405	460x980	1420
HPB-1010/150	1500	1010	30	250+405	460x980	1750
HPB-1010/200	2000	1010	30	300+400	500x980	2400
HPB-1010/300	3000	1010	30	300+405	700x980	4200
HPB-100/1300	1000	1300	30	300+405	420x1250	2100
HPB-150/1300	1500	1300	30	300+405	420x1250	2400
HPB-200/1300	2000	1300	30	300+400	500x1250	2800
HPB-300/1300	3000	1300	30	300+450	600x1250	4800
HPB-100/1600	1000	1600	30	250+405	420x1550	2100
HPB-150/1600	1500	1600	30	250+405	420x1550	2450
HPB-200/1600	2000	1600	30	300+400	500x1550	3600
HPB-300/1600	3000	1600	30	300+400	600x1550	5800
