CNC Automatic Corrugated Cardboard Cutting Machine
Shandong YuChen CNC Co., Ltd.- Waterproof Rating：IPX-1
- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2000, CE
- Automation：Automatic
- Suitable for：Plastic, Rubber
Base Info
- Model NO.：YC-1625L
- Type：Cnc Bending Machine
- Transport Package：Wooden Cases.
- Specification：2500*1600mm
- Trademark：YUCHEN
- Origin：Shandong Jinan
- Production Capacity：25 Sets,Month
Description
Model
YC-1625A
YC-1625L
YC-2030A
Working area
2500×1600mm
2500×1600mm
2000×3000mm
Operation properties
Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime
Safety device
Infrared adopted; sensitive response; safe and reliable
Maxi cutting speed
1200mm/s
Translational velocity
1500mm/s
Applicable materials
KT board, Corrugated cardboard, EPE, PVC, acrylic, thick foam, etc

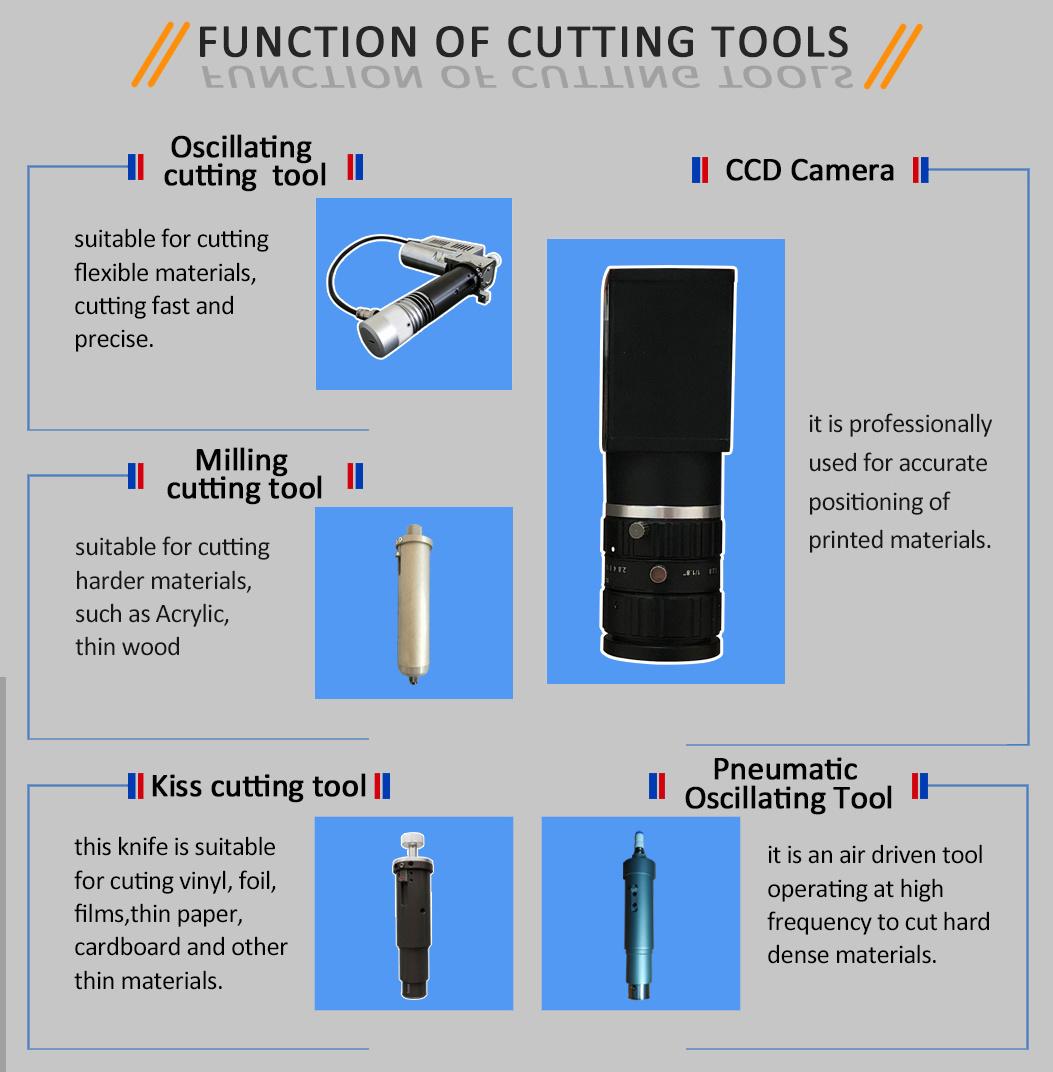

Multifunctional head
oscillating cutting tool, kiss cut, creasing tool, milling, precise vision-aided position
Cutting thickness
0.1-20mm(subject to material)
0.1-10.0mm(subject to the material cutting)
Cutting tolerance
±0.1mm
Transmission interface
Ethernet
Transmission system
Motor:Panasonic or Fuji
Linear rail:Hiwin
Fixed mode
Vacuum absorb
Supply voltage
AC 220V 380V±10%,50HZ
Rated power
11KW
