• Model NO.：Customized 6 Meter Hydraulic Folding Machinery
• Type：Roller-Bending Machine
• Thickness：0.4-1.0mm
• Strength：350MPa
• Transport Package：40gp
• Specification：3T
• Trademark：LIMING MACHINERY
• Origin：Fujian, China(Mainland)
• Production Capacity：600sets,Year

Basic Info.

Model NO. Customized 6 Meter Hydraulic Folding Machinery Type Roller-Bending Machine Thickness 0.4-1.0mm Strength 350MPa Transport Package 40gp Specification 3T Trademark LIMING MACHINERY Origin Fujian, China(Mainland) Production Capacity 600sets/Year

Product Description

Specifications

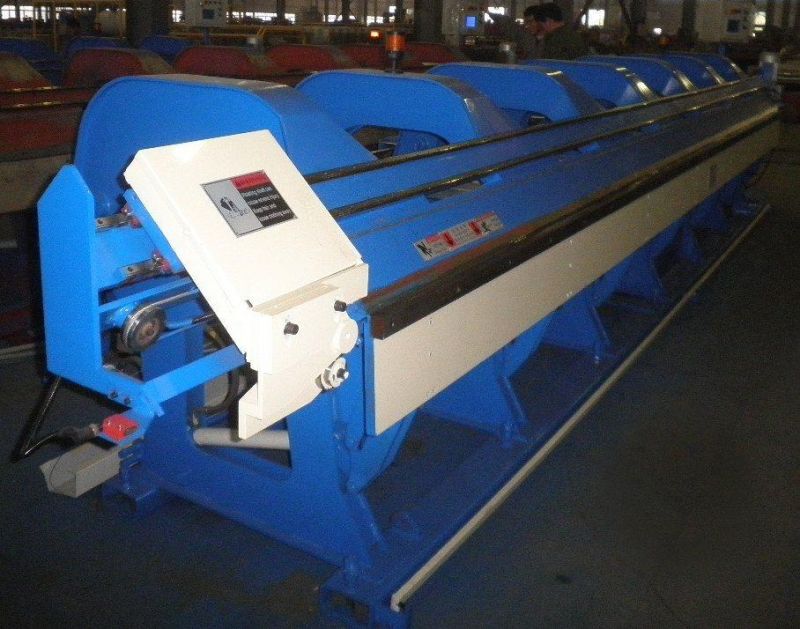

CNC slitting folding machine
1.Throat Depth:1000mm
2.Max.bending angle:125dgree

General Parameter



1	Material	PPGI,Carbon Steel; Aluminum; Stainless Steel
2	Thickness	PPGI&Carbon Steel: 1.2mm    Aluminum:1.2mm    Stainless Steel:1.0mm
3	Feeding width	Max  1000mm
4	Power	Driven by Servo motor, pump motor: 0.82KW
5	Working length	6000mm
6	Press clamp	7 units
7	Weight:	Approx 3000kg
8	Pressing power	pump motor for hydraulic station7.5KW(Located inside)
9	Bending Range	0-125 Degree
10	Depth of throat	1000 mm (Max. working width of material in clamp)
11	Hinge	7 groups
12	Total power	9.42kw (7.5KW+1.1KW+0.82KW)
13	Outline dimension(Length×Width×Height):	5800×1700×1500 (For reference only)
14	Type of Blade	Slitting Wheel

Machine Components

a.Slitting Device

   Diameter:80 (Enough)
   Material:Cr12MoV

   2) Drive system:Motor driving, 1.1KW
   Guiding device:Steel rope circling

   3) Slitting speed:Approx.0.8m/s
   Slitting distance: Through steel rope circulation.

b.Bending & Slitting Device

  1) Max. Bending thickness 1.0mm
  2) Max. Bending length 6000mm
  3) Max. Slit thickness 1.0mm
  4) Min. folding dimension TBC

c.Hydraulic power pack

   1)Capability:Max.16MPA
   2)Capacity of oil tank: 170L
   3)Power source:Hydraulic

d.PLC Control System

  1)System:Siemens PLC Control
  2)Numerical control locating system:Siemens PLC Control
  3)Operating table:Touch Screen
  4)Angle programmer:Encoder test
  5)Slitting control:Manual
  6)Emergency stop: e-stop button+ e-limit+ foot switch (right heavily)

Slitting wheels on folding machine





After-Sale Service

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
If installation is needed, the buyer shall make the following preparation before arrival of technicians.


Terms Of Trade

1. Package & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.
2. Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory.
