Cutting & Fold-bend Machine

Bending Machine Press Brake Machine Hydraulic Press Brake (600T/4000mm)

Maanshan Middle Asia Machine Tools Manufacture Co., Ltd.
  • Condition:New
  • Certification:CE
  • Automation:Automatic
  • Type:Press Brake
  • Size:600t,4000mm
  • Application:Machinery & Hardware

Base Info

  • Model NO.:WC67Y-600T,4000mm
  • Main Motor:Siemens
  • Backgauge Motor:Detong
  • Pump:Sunny
  • Controller:E21
  • Mould:Guoling
  • Ball Screw:Hiwin
  • Footswitch:Karcon
  • Seal Ring:Nok
  • Transport Package:Plastic Film
  • Specification:CE, SGS, ISO
  • Trademark:ZYMT
  • Origin:China
  • HS Code:8462199000
  • Production Capacity:1000 Sets,Year

Description

Basic Info.

Model NO. WC67Y-600T/4000mm Main Motor Siemens Backgauge Motor Detong Pump Sunny Controller E21 Mould Guoling Ball Screw Hiwin Footswitch Karcon Seal Ring Nok Transport Package Plastic Film Specification CE, SGS, ISO Trademark ZYMT Origin China HS Code 8462199000 Production Capacity 1000 Sets/Year

Product Description

Bending Machine Press Brake Machine Hydraulic Press Brake (600T/4000mm)

Bending Machine WC67Y-600T/4000mm:
Nominal Force: 40-800T
Worktable Length: 2200-6000mm

Advantage of E10:
1. Unidirectional position warning of back gauge
2. Lead screw and pitch error compensation
3. Memory capacity after power off
4. Special-purpose time reply
5. Male/inch, counting

Descriptions:
1. The whole machine is in sheet plate welded structure, with internal stress eliminated by vibration aging technology, high strengh and good rigidity of machine;
2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechnical limit stopper and synchronous torsion bar, typical of stable and reliable operation, as well as high precision;
3. Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use;
4. Upper die is fitted with deflection compensation device.

Main Equipments:
Hydraulic system: Omega
Pump: Gear pump (Chinese)
Electrics: Germany Siemens;
O-rings: Japanese NOK;
Connectors: German EMB;
Ball screw: Taiwan HIWIN
Line guide rail: Taiwan HIWIN
Digital display system: E10

Bending Machine Press Brake Machine Hydraulic Press Brake (600T/4000mm)
Other standard equipments:
Upper blade 1set (two sides can be use)
Lower blade 1set (four sides can be use)
Front supporting arms 6
Emergency stop buttons;
Shadow line lighting
Safety foot switch
Foundation bolts 1set
Toolings 1set (screw driver and spanner)
Manuals and diagram 1book

Other details:

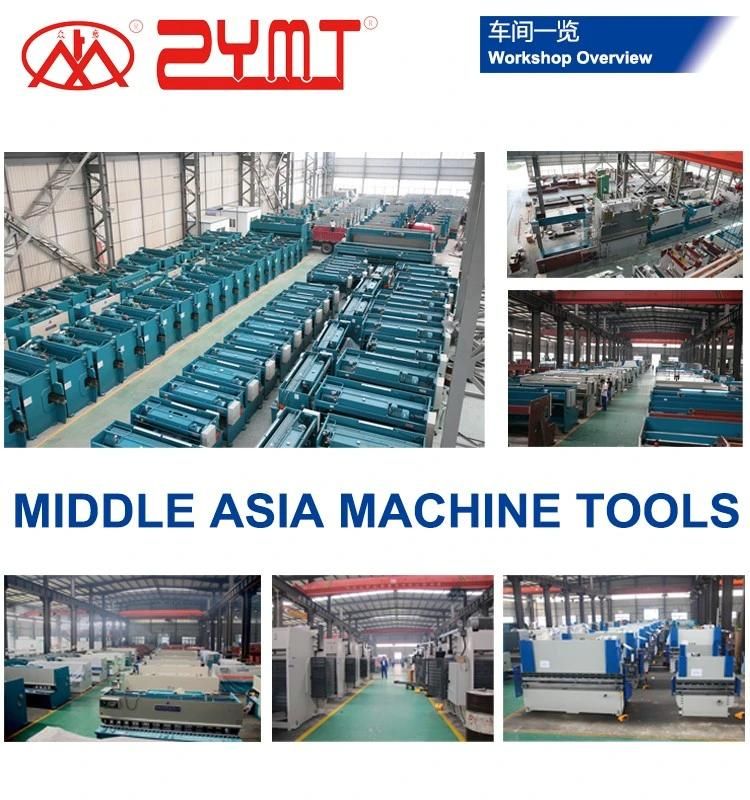

We have more than ten years experience in press brake machine & shearing machine
Delivery time: 30 days
Price based on FOB Shanghai
Size: From 40ton/2.5m to 400ton/4m
Packaging: In plastic film cover
Warranty time: 1 year

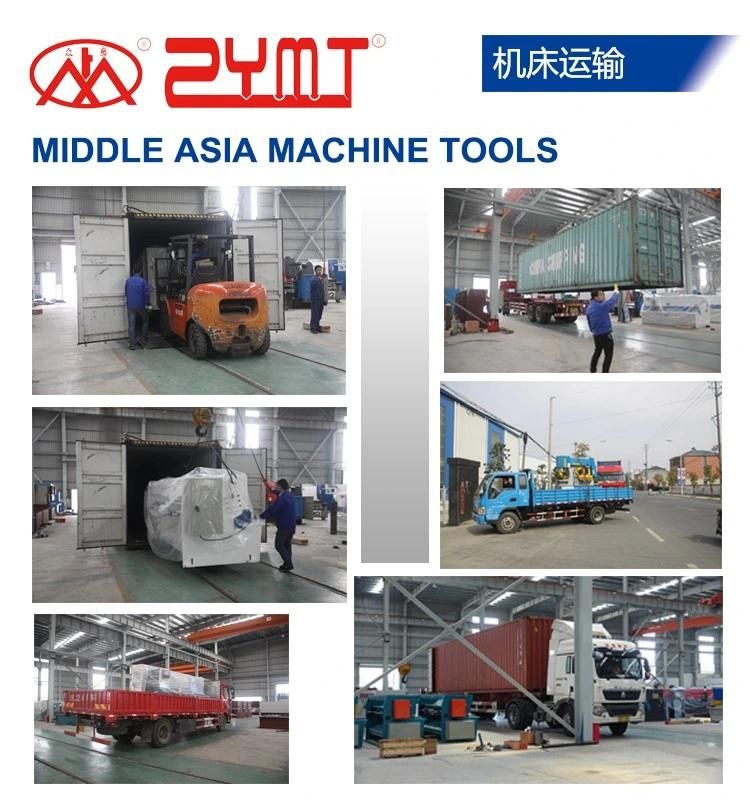

Packing&Delivery:

With more than 10 years exporting experience, we are so skilled for loading containers and packing the machines in container for safety. Each machine use min. 6mm dimeter steel rope to fix the four angles with the container, to avoid the machinery equipment move in the container.


Bending Machine Press Brake Machine Hydraulic Press Brake (600T/4000mm)

Our Services:

1.24 hours telephone line is available for any question.

2.Experienced service technician team is available.

3.Support in hard work solution.


Certifications:
Bending Machine Press Brake Machine Hydraulic Press Brake (600T/4000mm)
