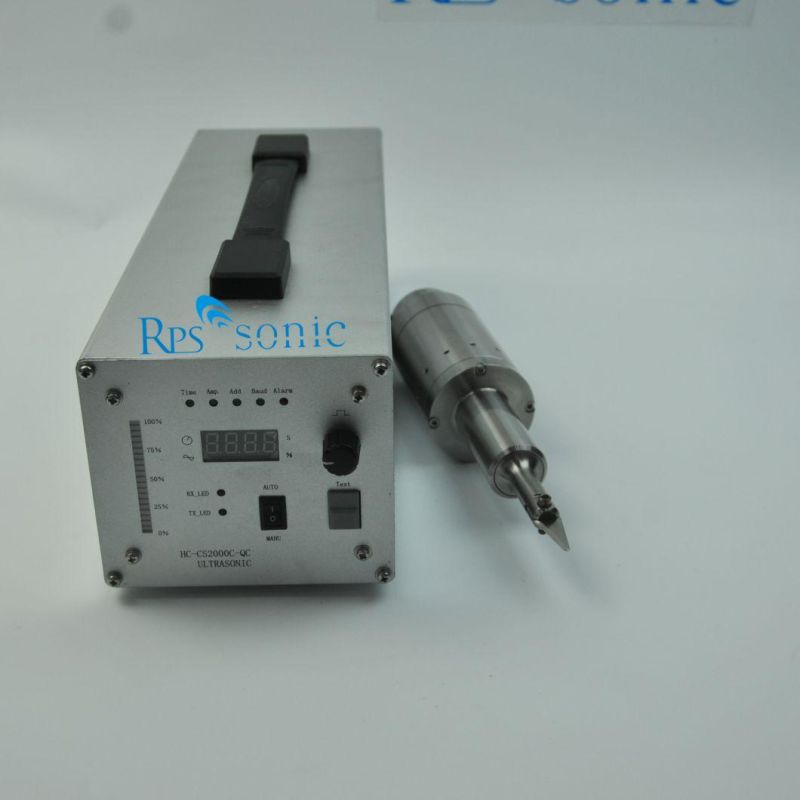

30kHz Ultrasonic Cutting Equipment Mounted on The Robot Arm for Plastic Cutting
Hangzhou Lanben Trade Co., Ltd.- After-sales Service：Online Service
- Waterproof Rating：IPX-1
- Warranty：1-year
- Certification：CE
- Condition：New
- Control：Automatic
Base Info
- Model NO.：RPS-C30
- Application：Paper, Plastic, Leather, Fabric
- Power Source：Electric
- Frequency：30kHz
- Power：500W
- Horn Material：Rapid Steel
- Weight：7kg
- Generator：Digital
- Blade Thickness：1mm
- Power Supply：AC220V 50,60Hz
- Outer Skin：Alumium
- Transport Package：Carton
- Specification：45*27*25mm
- Trademark：Rps-sonic
- Origin：China
- HS Code：8515900090
- Production Capacity：200PCS,Month
Description

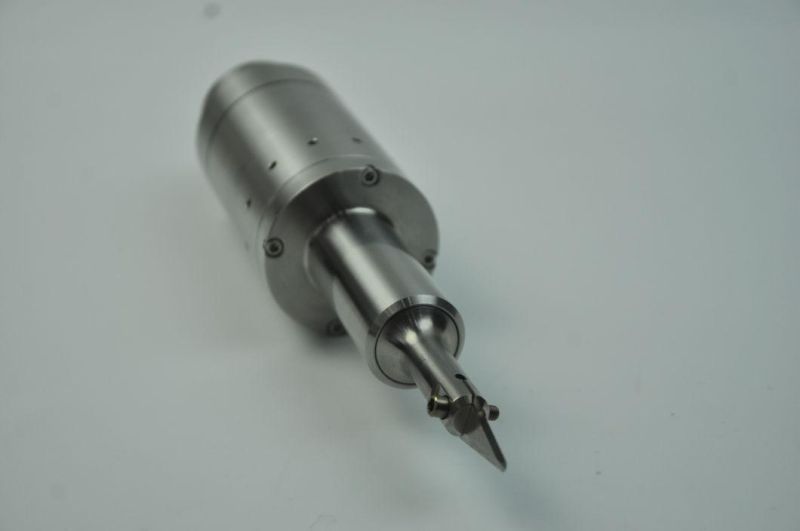

Ultrasonic cutting knife is a kind of ultrasonic equipment specially used for cutting. Ultrasonic cutting method: Knife type: Load the ultrasonic wave on the cutting tool, so that the tool generates ultrasonic vibration, so as to achieve the cutting effect. Suitable for different process conditions and cutting objects. Application range: Used for cutting rubber, synthetic fabrics, cloth, plastics, food, etc. Principle The principle of ultrasonic cutting is completely different from the traditional cutting. Ultrasonic cutting uses the energy of an ultrasonic transducer to heat and melt a part of the material to be cut, so as to achieve the purpose of cutting the material. Therefore, ultrasonic cutting does not require a sharp edge, nor does it require a lot of pressure, and will not cause chipping or damage to the material being cut. At the same time, because the cutting knife is vibrating ultrasonically, the frictional resistance is particularly small, and the material to be cut is not easy to stick to the blade. This is particularly effective for cutting viscous and elastic materials, frozen materials such as food, rubber, etc., or objects that are inconvenient to apply pressure. Ultrasonic cutting has another great advantage, that is, it has fusion effect on the cutting part while cutting. Play the edge banding effect and prevent the loosening of the cut material organization. Advantages of characteristic ultrasonic cutting equipment. Knife-style cutting can adopt air-cooled and air-cooled designs to adapt to various working conditions and environments. The cutting speed is greatly improved, and the efficiency of traditional cutting knives is increased by more than 10 times. The use of high-power ultrasonic transducers as vibrating elements ensures Long-term stable work, suitable for special cutting applications, can cut various products that are difficult to cut by ordinary tools, solve production and processing problems, suitable for cutting various fabrics, cloth, plates, rubber and other thin products. High hardness blades and cutter heads can be installed It can be replaced, which reduces the cost of use. The cutting surface is hardened and is extremely wear-resistant. The ultrasonic cutting effect can be achieved almost without changing the original cutting process. The process improvement is minimal and the installation is simple.Features
1. The cutting precision is high, and the material is not deformed.
2. The cutting surface has good smoothness and good bonding performance.
3. Fast speed, high efficiency and no pollution.
4. There is little friction, which improves the production efficiency of cutting operations.
5. Simple operation: you can start cutting by turning on the switch.
Ultrasonic knives have been widely used in textile and food industries in recent years. The ultrasonic cutting system can accurately cut textiles, rubber, thermoplastic films, knitted and non-knitted materials, and various foods. These include both handheld devices and various systems integrated into automated machines. The advantages of the ultrasonic vibration knife are: precise cutting, pressureless cutting (to avoid deformation of soft cut objects, such as cakes), welding of specific materials at the same time, fast cutting speed and significantly reducing cleaning costs.
