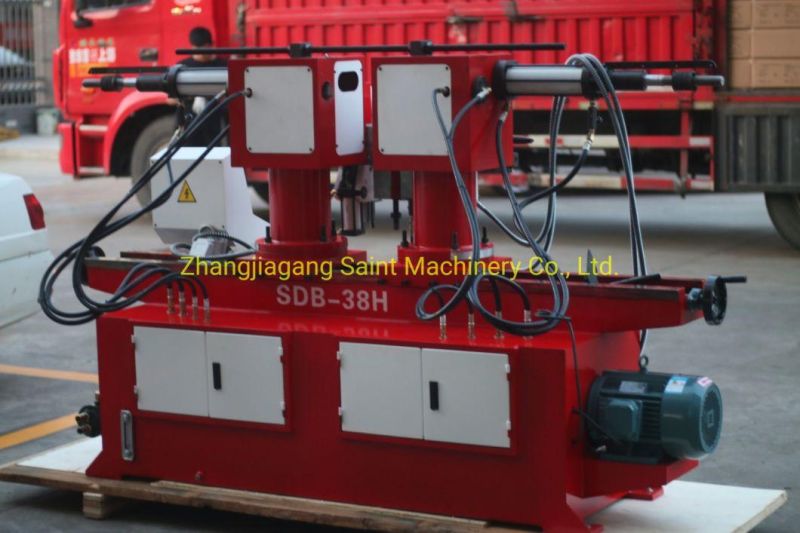

• Model NO.：SDB-38H
• Type：Pipe and Tube Bending Machine
• Bend Tube：Double Axis Bender
• Bending：Hydraulic
• Control：Nc
• Cooling System：Water Cooling
• Transport Package：Plywood Case
• Specification：LWH: 2600× 950× 1600mm, GW: 1450kg
• Trademark：STM
• Origin：China
• HS Code：8462219000
• Production Capacity：500

Basic Info.

Model NO. SDB-38H Type Pipe and Tube Bending Machine Bend Tube Double Axis Bender Bending Hydraulic Control Nc Cooling System Water Cooling Transport Package Plywood Case Specification LWH: 2600× 950× 1600mm, GW: 1450kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500

Product Description

1. Microcomputer control, convenient operation and flexible settings

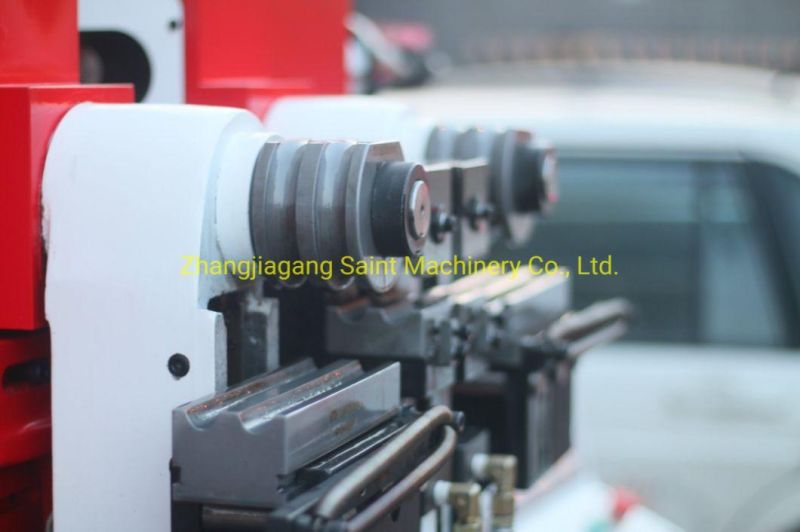

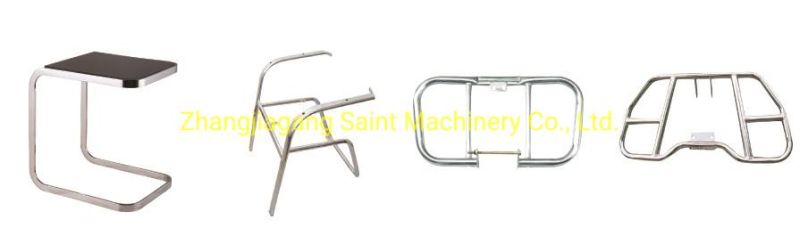

2. High efficiency: the two bending arms bend pipe at the same time, suitable for symmetric bending products
3. Can turn angle of 90-degree to bend pipes with three dimensional shape
4. Hydraulic cooling system to ensure the equipment long-time work stably under the high temperature
Technical Parameters

Technical parameters	SDB-38H
Max bending capability	φ38mm
Bending radius	35~160 mm
The centre distance of two arms	200~1600 mm
Bending angle	0~190°
Bending speed	50°/sec
Bending accuracy	±0.2°
Main motor power	5.5Kw
System hydraulic pressure	12MPa
Size	2600×950×1600mm
Weight	1450kg
