Ce Mark Tube Bending Machine CNC Tube Bender Automatic
Zhangjiagang Saint Machinery Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：1-year
- Condition：New
- Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation：Automatic
- Suitable for：Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：STB-18CNC-4A-AL
- Type：Pipe and Tube Bending Machine
- Axis：4-Axis Servo
- Tool Stack：2 Stack
- Bend Speed：2 Second,Bend
- Transport Package：Plywood Case
- Specification：LWH: 3200× 1250× 1550mm, GW: 1800kg
- Trademark：STM
- Origin：China
- HS Code：8462219000
- Production Capacity：500
Description
Basic Info.
Model NO. STB-18CNC-4A-AL Type Pipe and Tube Bending Machine Axis 4-Axis Servo Tool Stack 2 Stack Bend Speed 2 Second/Bend Transport Package Plywood Case Specification LWH: 3200× 1250× 1550mm, GW: 1800kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500Product Description

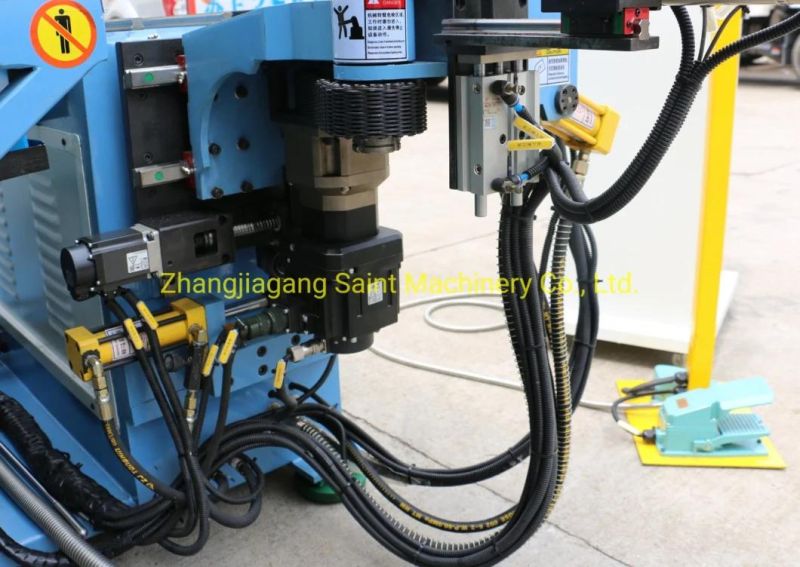

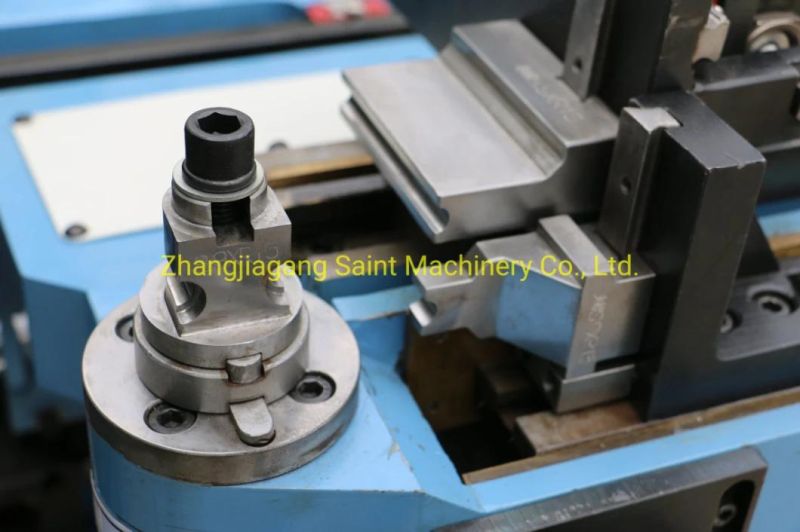

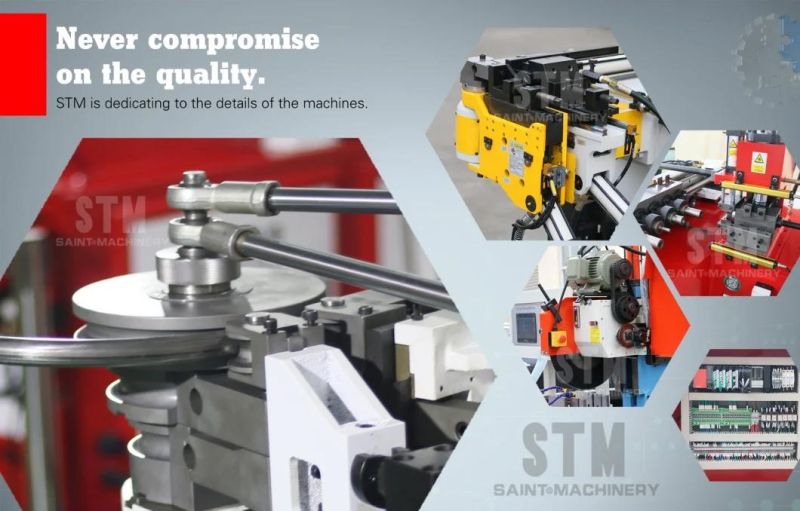

1. Bend-arm (C-axis) by AC servomotor.2. Clamp die by hydraulic; pressure die by hydraulic.
3. Carriage (Y-axis) by AC servomotor.
4. With rear booster driven by AC servomotor.

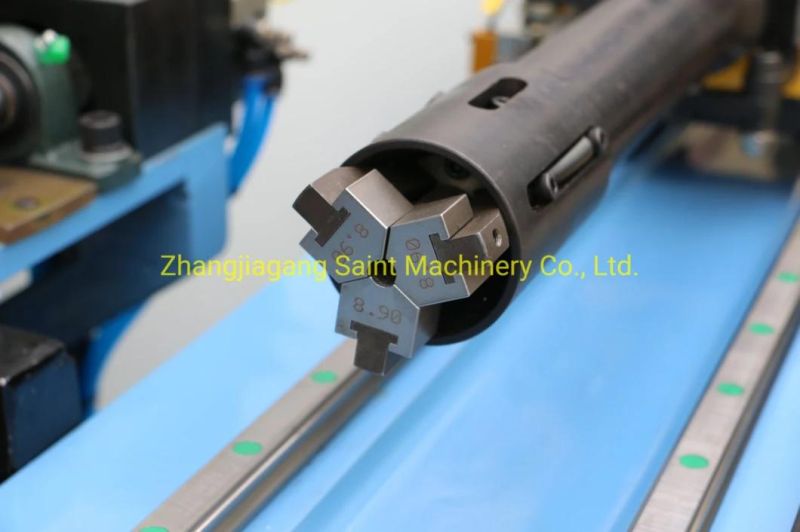

5. Collets (B-axis): rotation by AC servomotor, grip by hydraulic.
6. With roll bending function (PUSH BENDING), can make big radius by rolling.
7. Tooling shift : motion up-down by hydraulic, left-right by AC servomotor.
8. Automatic moving parts lubrication.
9. Anticipated mandrel retraction unit.
10. Standing pedestal, serves emergency stop and remote control.
11. Optional: Industrial PC (windows system) assorted with touch screen display, 3D bending simulation, 3D preview, remote control (TeamViewer)

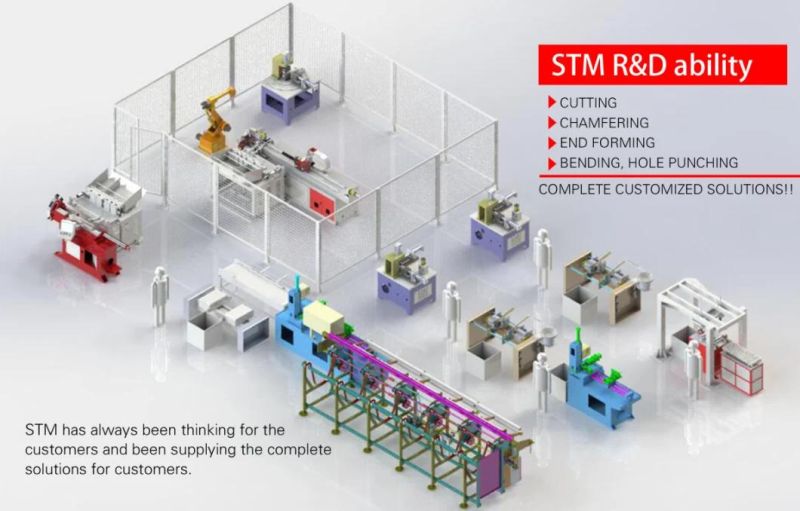

12. Optional: auto loading and unloading system.
| Model | STB-25CNC-4A-2S | STB-18CNC-4A-2S |
|---|---|---|
| Bending capability OD×WT (carbon steel) | Φ25.4× 1.6mm | Φ18× 1.2mm |
| Bending radius (by tools) | 18~160 mm | 10~120 mm |
| Bending angle | 0~195° | 0~195° |
| Max bending length with mandrel | 2000mm | 1600mm |
| Bending speed | 150°/sec | 150°/sec |
| Bending accuracy | ±0.1° | ±0.1° |
| Feeding speed | 20~900 mm/sec | 20~1000 mm/sec |
| Feeding accuracy | ±0.1 mm | ±0.1 mm |
| Rotating speed | 320°/sec | 360°/sec |
| Rotating accuracy | ±0.1° | ±0.1° |
| Tools stack | 2 | 2 |
| Bending | Electric Servomotor | Electric Servomotor |
| Feeding/Booster | Electric Servomotor | Electric Servomotor |
| Rotating | Electric Servomotor | Electric Servomotor |
| Tool shifting (left & right) | Electric Servomotor | Electric Servomotor |
| Main motor power | 4.0 KW | 4.0 KW |
| System hydraulic pressure | 12MPa | 12MPa |
| Size | 3700×1200×1500mm | 3000×1200×1500mm |
| Weight | 1400 kg | 1000 kg |
