Q43-250 Hydraulic Alligator Shearing Machine
Shaanxi HAVEN Equipment Co., Ltd.- Driver：Hydraulic
- Transport Package：Veneer Case
- Specification：CE STANDARD
- Trademark：HAVEN
- Origin：China
Base Info
- Model NO.：Q43-250
- HS Code：8462
- Production Capacity：200units,Year
Description
Basic Info.
Model NO. Q43-250 HS Code 8462 Production Capacity 200units/YearProduct Description

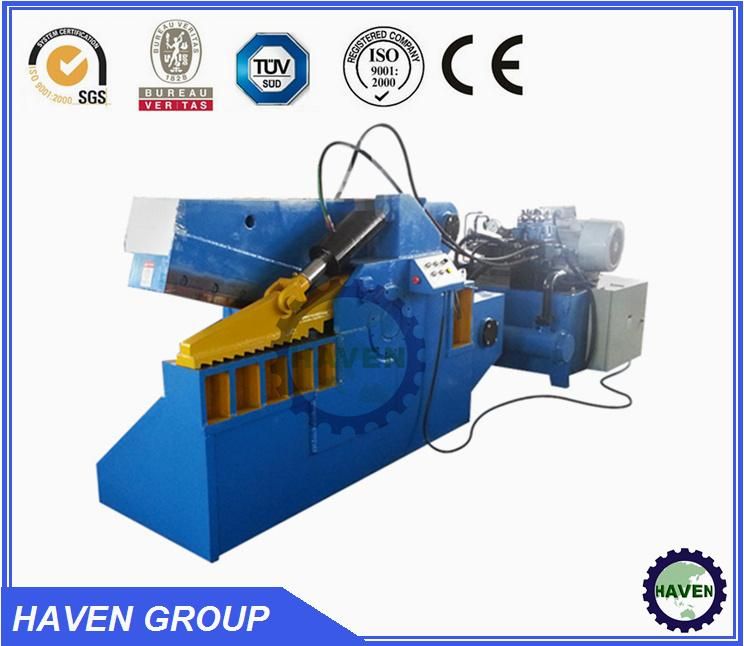

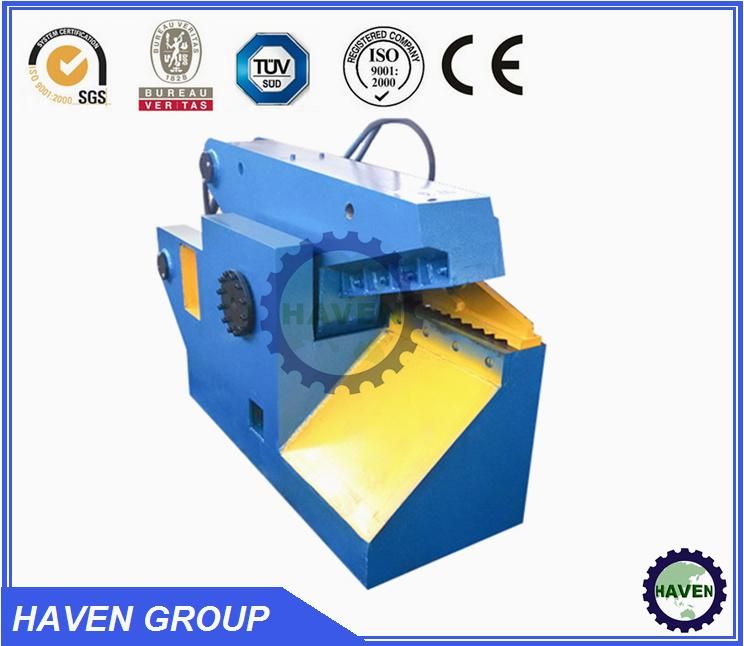

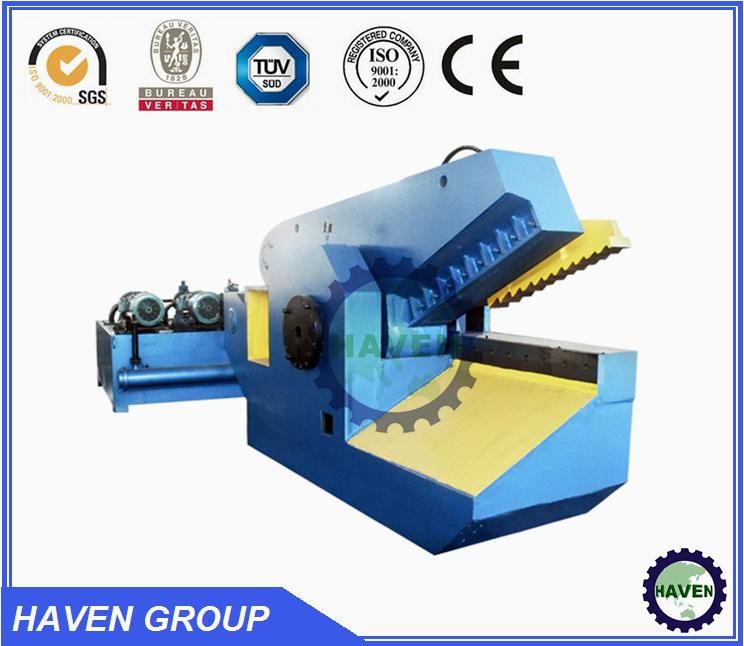

Q43-250 Hydraulic Alligator Shearing Machine
Q43 series of hydraulic alligator shears for metal recycling plant, scrap car dismantling site, smelting foundry industry, various steel and metal structure for cold cut, processed into qualified charging.
Main Features:
With hydraulic drive, convenient operation, simple maintenance.
Working blade length: 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm, shear stress from 63 to 400 tons a total of eight grades. 700mm above the shear blade, particularly suitable for cutting scrap cars
Install screws no foot, no power of place can be powered by diesel engines.
| Model | Largest shear force (ton) | Max press force (ton) | Max blade Opening (mm) | Blade Length (mm) | Shearing Frequency (time/min) | Materiai Size (mm) | Matar power |
| Q43-63 | 630 | 120 | 180 | 400 | 8~10 | 30×30 35 | 7.5 |
| Q43-100 | 1000 | 160 | 280 | 600 | 8~10 | 40×40 35 | 7.5(11) |
| Q43-120 | 1200 | 200 | 280 | 600 | 8~10 | 50×50 5 | 15 |
| Q43-130 | 1300 | 200 | 320 | 700 | 8~10 | 50×50 55 | 15 |
| Q43-160 | 1600 | 250 | 320 | 700 | 8~10 | 55×55 63 | 18.5 |
| Q43-200 | 2000 | 300 | 380 | 800 | 8~10 | 70×70 75 | 22 |
| Q43-250 | 2500 | 380 | 480 | 1000 | 8~10 | 70×80 85 | 30 |
| Q43-315 | 3150 | 380 | 650 | 1200 | 8~10 | 90×90 95 | 37 |
| Q43-400 | 4000 | 420 | 750 | 1500 | 8~10 | 100×100 110 | 44 |
| Q43-500 | 5000 | 420 | 850 | 1800 | 8~10 | 110×110 120 | 44 |
| Q43-630 | 6300 | 4200 | 250 | 1800 | 8~10 | 120×120130 | 37+15 |
