• Model NO.：BWZ-F
• Suitable for：Copper, Aluminum, Alloy, Channelume
• Type：Cnc Bending Machine
• Transport Package：PE Foam and Wooden Box
• Specification：1350*700*1300mm
• Trademark：BaoYuanTong
• Origin：Shandong
• Production Capacity：200sets,Month

Basic Info.

Model NO. BWZ-F Suitable for Copper, Aluminum, Alloy, Channelume Type Cnc Bending Machine Transport Package PE Foam and Wooden Box Specification 1350*700*1300mm Trademark BaoYuanTong Origin Shandong Production Capacity 200sets/Month

Product Description

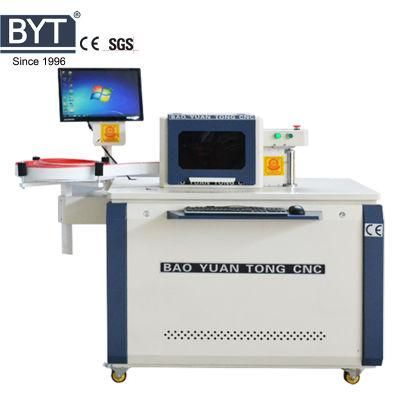

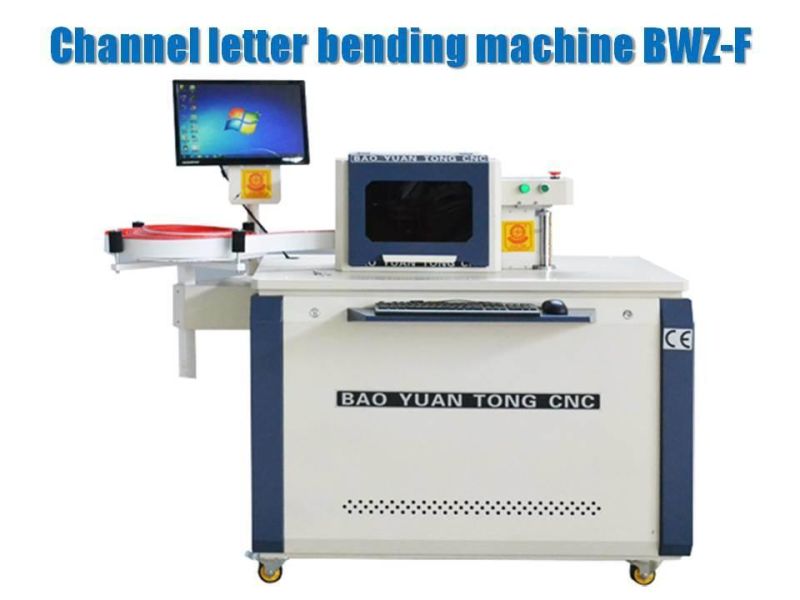

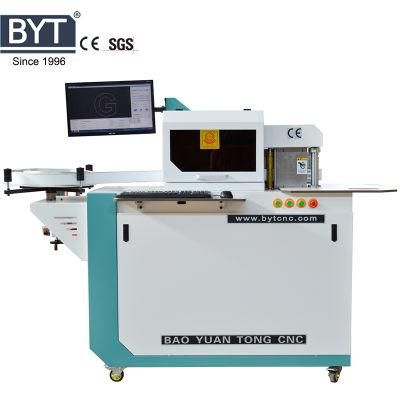

BWZ-F CNC aluminum channel letter bending machine



Applicat
The application range of the Channel Letter Bending Machine is generally in the advertising industry. When the advertising company needs to do the luminous characters for the shops,it needs to use the channel letter bending machine to make the production. The channel letter bending machine can process many materials aluminum profiles, aluminum strip ) and does not damage the material. The processing precision is high and the speed is fast. The material thickness and tool adjustments are all adjusted by software, more convenient and faste

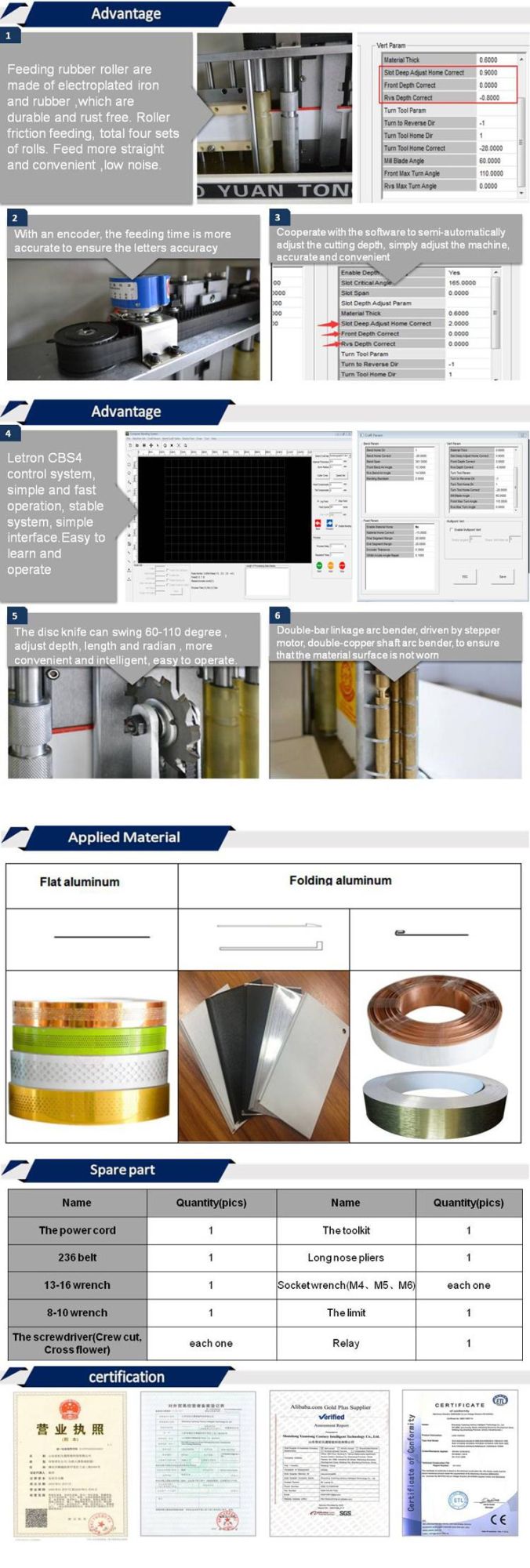

Feature:
1.Feeding rubber roller are made of electroplated iron and rubber ,which are durable and rust free. Roller friction feeding, total four sets of rolls. Feed more straight and convenient ,low noise.
2. With an encoder, the feeding time is more accurate to ensure the letters accuracy;
3.Cooperate with the software to semi-automatically adjust the cutting depth, simply adjust the machine, accurate and convenient;
4.The disc knife can swing 60-110 degree , adjust depth, length and radian , more convenient and intelligent, easy to operate.
5.Double-bar linkage arc bender, driven by stepper motor, double-copper shaft arc bender, to ensure that the material surface is not worn.
6.Letron CBS4 control system, simple and fast operation, stable system, simple interface.Easy to learn and operate;
Technical data:

Model	BWZ-F
Function	Automatic feeding,slotting and bending
Applicable Material Alu=Aluminum	Flat Alu,Folding Alu
Material Width	Flat Alu:≤150mm Folding Alu:≤108mm
Material Thickness	Aluminum:0.3~1.2mm
Bending Radius	12mm
Feeding	φ30mm feeding wheel +Encoder
Slotting System	Air cylinder control
Bending	Coupled extrusion-general arc bender
Control System	Leetro CBS4
Power	<1500W
Air Pressure	0.6MPa
File Format	Dxf, Ai,Plt
Working Voltage	220V/ 50-60HZ/1P
Net Weight(kgs)	240
Overall Size(mm)(L*W*H)	1350*700*1300
