• Model NO.：G1200
• Suitable for：Plastic

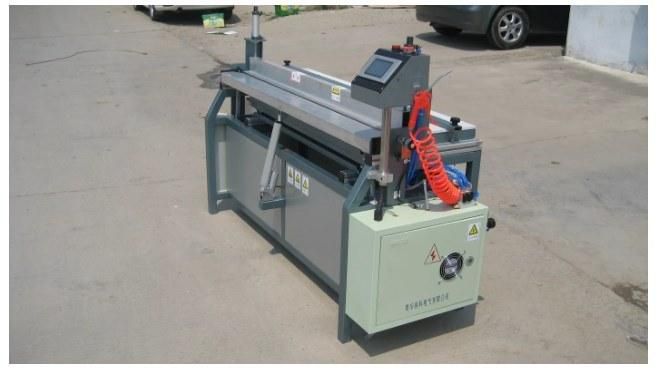

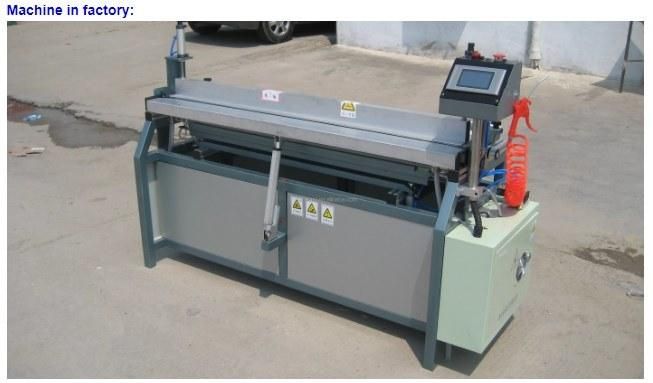

• Type：Hydraulic Bending Machine

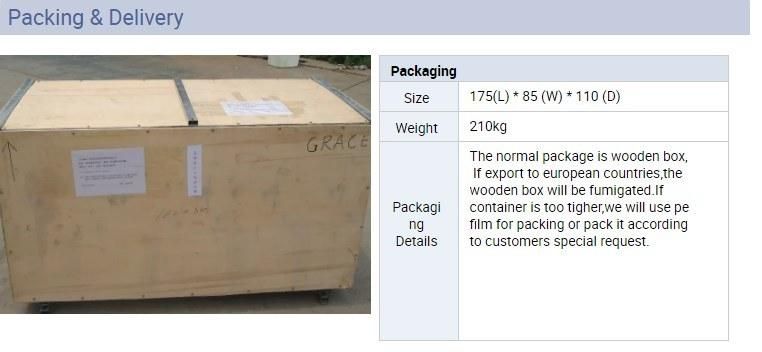

• Transport Package：Wooden Case
• Specification：1200mm width
• Trademark：GRACE
• Origin：China
• Production Capacity：50 Sets,Months

Product Application

It is easy to operate and has two functions: automatic and manual. In the automatic state, after the plate is put into operation, it will be automatically bent and formed within the preset time

The softening gap can be adjusted arbitrarily according to the thickness of the processed plate

The plate adopts fixed heating to reduce the deformation after forming

The accuracy and convenience of product batch configuration are ensured by the hand wheel

The use of infrared heating method greatly prolongs the service life compared with furnace wire heating method

The working voltage can be adjusted to avoid the paste phenomenon when folding thick plates

The water circulation system is equipped, and the water temperature overheating alarm system is installed to ensure the safe use of the equipment

The leakage protection function is equipped with grounding wire, which is safe to use

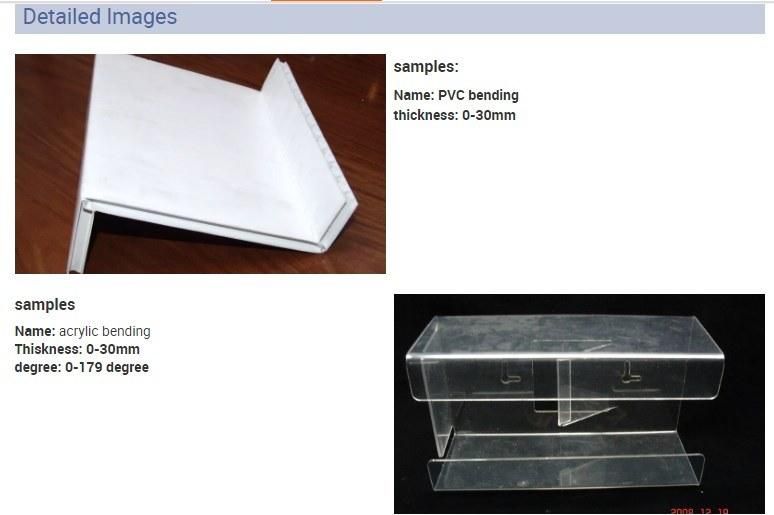

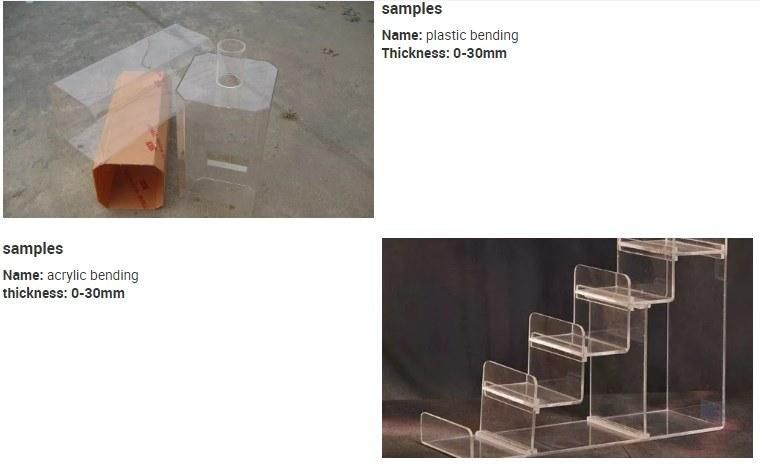

Applicable to a variety of industries, can fold acrylic, PVC and other materials.Use for acrylic, pvc, pp board, plastic materails bending, bending thickness is around 30mm.  can do 0-179 degree bending by automatically.
Up and down heating by two heating tubes.
Heating tube materials is Quartz glass
