Cutting & Fold-bend Machine

CNC Busbar Servo Bending Machine for Copper and Aluminum

Jinan Euro-Asia Int'l Co., Ltd.
  • Condition:New
  • Certification:ISO 9001:2008, CE
  • Automation:Automatic
  • Suitable for:Copper, Aluminum
  • Type:Hydraulic Bending Machine
  • Outside Dimension:4150X1590

Base Info

  • Model NO.:EMAC-BB-S12
  • Bending Accuracy:0.3
  • Total Power:7.2
  • Level Bending:200*15 mm
  • Transport Package:Export Standard Free-Fumigation Wooden Case
  • Specification:Total Weight: 2700kgs
  • Trademark:BEIENE
  • Origin:Shandong, China
  • HS Code:8462
  • Production Capacity:200 Sets Per Month

Description

Basic Info.

Model NO. EMAC-BB-S12 Bending Accuracy 0.3 Total Power 7.2 Level Bending 200*15 mm Transport Package Export Standard Free-Fumigation Wooden Case Specification Total Weight: 2700kgs Trademark BEIENE Origin Shandong, China HS Code 8462 Production Capacity 200 Sets Per Month

Product Description

Video link:
https://cncmachinegroup.en.made-in-china.com
Advantages:
1.Closed Bending Structure --Using a precision linear guide to ensure fabricating accuracy.

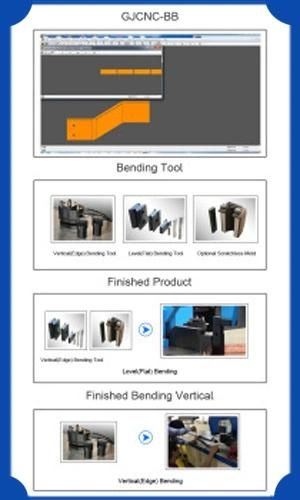

2.GJ3D Software Programming --Accurately calculating the  punching position by 3D graphics.
3.Touch Screen -- Allowing the easy setting of die parameters and the operation of equipment.
4. High-Speed-- Operation System  Guarantee high precision and fast efficiency.

Products Description:
1. This machine adopts unique large closed type bending structure.
2. It also has the convenience of the open type bending.
3. It possesses the premium property of the closed type bending.
4. The bend unit (Y-axis) has the function of angle error compensation, its bending accuracy can meet the high performance norm.
5. When it is in vertical bending, the machine has the function of auto clamping and release, the processing efficiency is greatly improved compared with manual clamping and release.


CNC Busbar Servo Bending Machine for Copper and AluminumCNC Busbar Servo Bending Machine for Copper and Aluminum
Specification:
ItemUnitParameter
Nominal ForceKN400
Bender AccuracyDegree±0.3°
Max  bending Strokemm250
Stroke of side strikermm2000
Max Moting Speed of Side striker(X Axis)m/min15
Bending  Head(Y Axis)m/minFastest 5;  low: 1.25
Min inner Width of U-shape bendmm40(Note:Please consult us for smaller dimensions)
Max bending angledegree90
Level  bending (W*H)mm200X15
Vertical Bend(W*H)mm125×15
Total powerkw7.2
Main machine dimension:L*WMM4150X1590
TOTAL Weightkg2700
