CNC or Common Type H / I Beam Arch Bending Machine for Bridge Tunnel Construction
Henan Yugong Machinery Co., Ltd.- After-sales Service:Video Guidence
- Waterproof Rating:IPX-8
- Warranty:1-year
- Condition:New
- Certification:RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation:Automatic
Base Info
- Model NO.:YG-250,CNC-250
- Suitable for:Carbon Steel
- Type:Cnc Bending Machine
- Transport Package:Wooden Box and Then in Container.
- Specification:7m³
- Trademark:YUGONG
- Origin:Henan, China
- HS Code:8462299000
- Production Capacity:30sets,Month
Description
Basic Info.
Model NO. YG-250/CNC-250 Suitable for Carbon Steel Type Cnc Bending Machine Transport Package Wooden Box and Then in Container. Specification 7m³ Trademark YUGONG Origin Henan, China HS Code 8462299000 Production Capacity 30sets/MonthProduct Description
CNC or Common Type H / I Beam Arch Bending Machine for Bridge Tunnel ConstructionCold bending machine mainly used in tunnels, subways, hydropower stations, underground caverns.
By switching mold can do arched rolling, diameter changes, fixed-angle bending of U-shaped steel,I beam,
H beam,Channel steel, Angle steel, Track steel, Square steel and Steel pipe or bar.
The Bending Machine for Steel increasing the bottom to ensure there is no distortion, two main wheels
center distance can be adjusted to 2.1m and 1.45m ,when it bend to smaller (machining 10-16) than usual ,
main wheel is on the center of 1.45m.it is easy to change parts,does not need re-calibration.the user can
make a sliding platform on both ends of the machine parts to save cost.
Main Parameters
Model | YG-250 | CNC-250 |
Material Specification | 14-25 I-beam | 14-25 I-beam |
Cylinder advance speed | 8-15 mm/s | 3-3.5 mm/s |
Roller rotation speed | - | 7 r/min |
Max pressure | 25 Mpa | 25 Mpa |
Power | 11kw | 8.4 kw |
Oil cylinder power | - | 4 kw |
Driving wheel power | - | 2.2kw*2 |
Min bending radius | 3m | 3m |
Dimensions | 1800*1500*1500mm | 2760*1639*1360mm |
Weight | 2200kg | 2200kg |

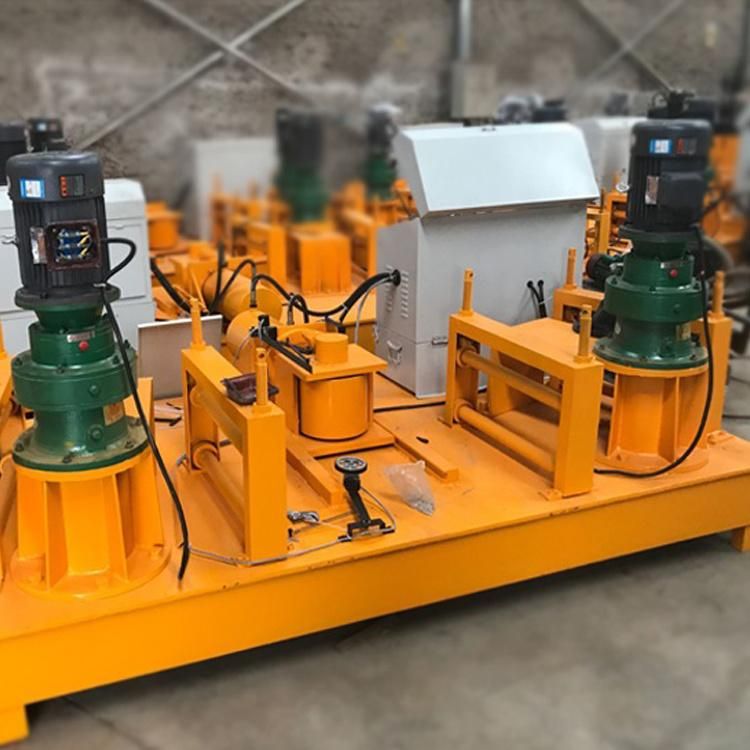

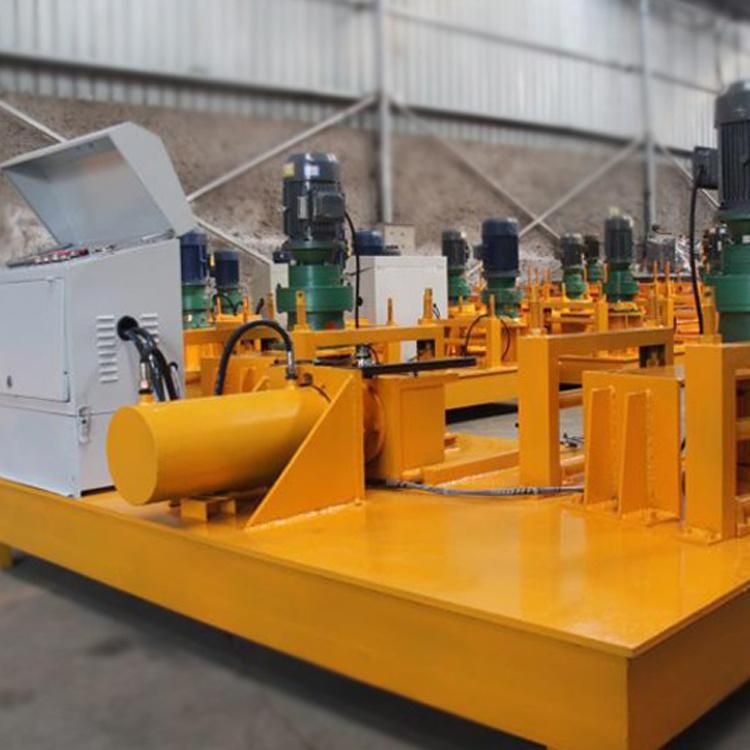

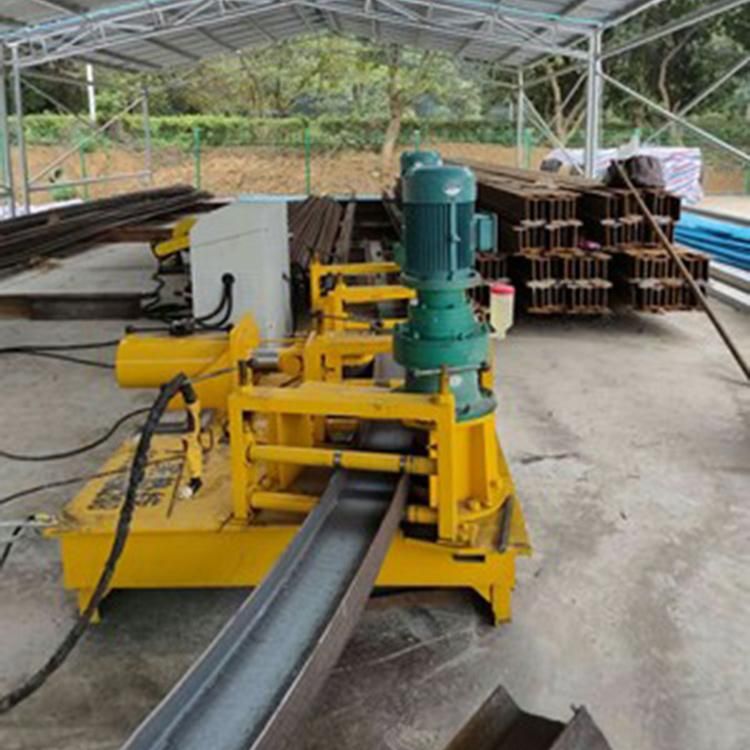

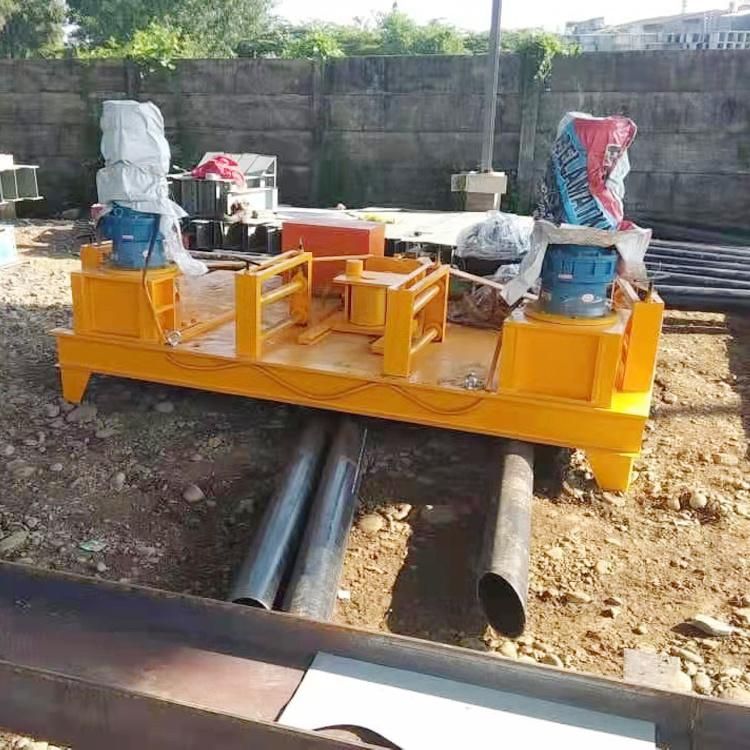

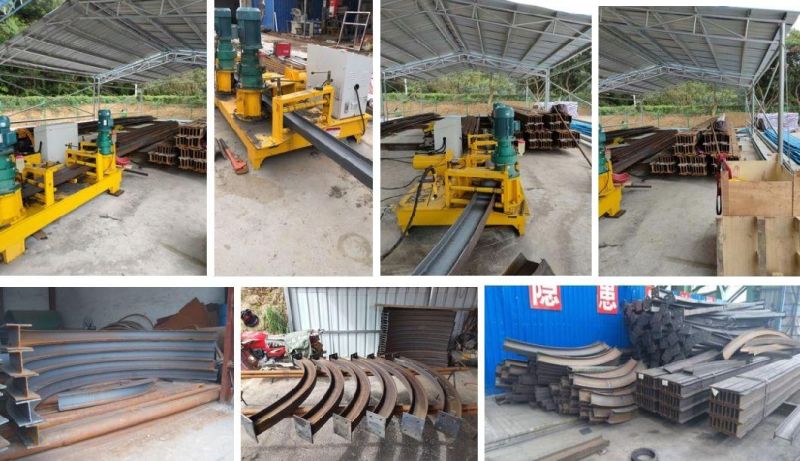

More pictues for your reference
