• Model NO.：GM-SB-50NCB
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：Gm-Sb-50NCBA
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-50NCB Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification Gm-Sb-50NCBA Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

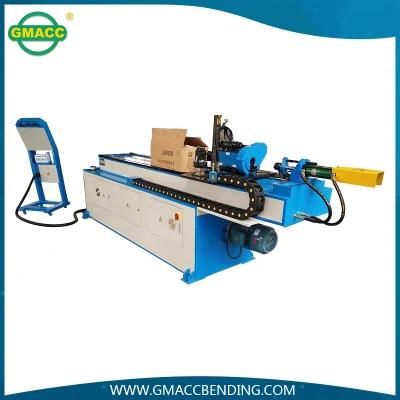

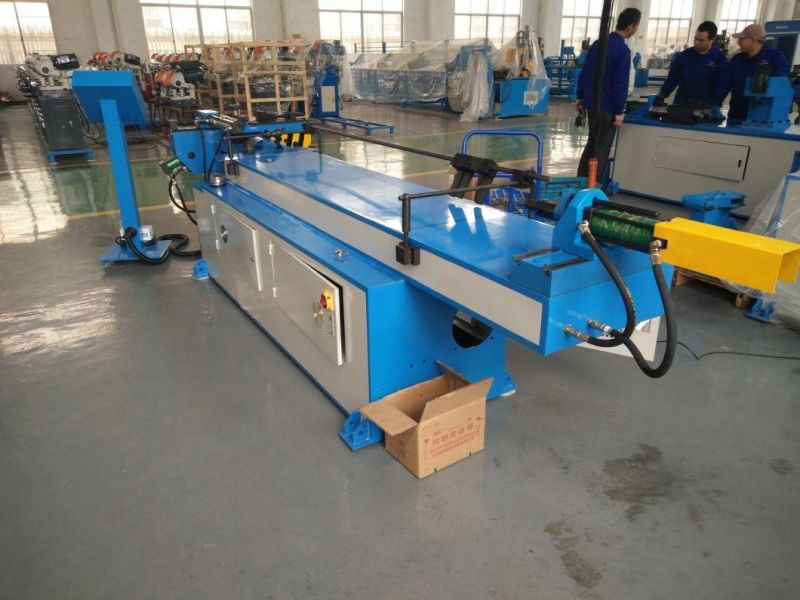

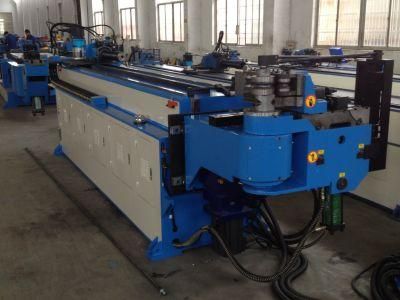

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-50NCB Machine CharacteristicFull hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.  Main Technical Parameter

Name	Unit	Parameter
Mild steel round tube	mm	50*3
Stainless Steel	mm	35*2
Light alloy annealed round tube	mm	50*3
Mild steel square tube	mm	35*35*2
Mild steel rectangular tube	mm	40*30*2
Mild steel round solid bar	mm	18
Mild steel square solid bar	mm	16*16
Min. bending radius	mm	20
Max. Bending radius(Standard)	mm	250
Max. Bending Angle	°	190°
Through Effective Distance	mm	3200
Bending Speed(Max.)	°/sec	45
Bending angle Precision	°	±0.10
System Motor Power	KW	5.5
Hydraulic Pump Volume	L	19
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	3500*800*1300
Machine Weight	T	2.0

 Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Germany Siemens(BEIDE)or Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Taiwan Shanghong (Imported)
Cylinder	Shanghai Qifan
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Taiwan Mingwei
Contactor	Schneider
Transformer	Wuxi XINYU

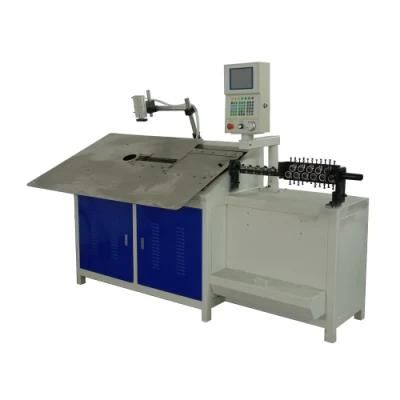

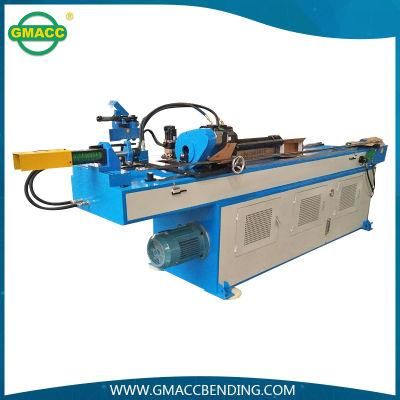

MODEL:GM-SB-50NCB(only for your reference)

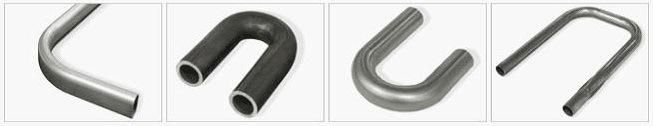

 Bending Samples

 Tooling Samples
           Bending Die                           Clamp Die                                    Pressure Di



           Mandrel                                                             Wiper Die(optional)

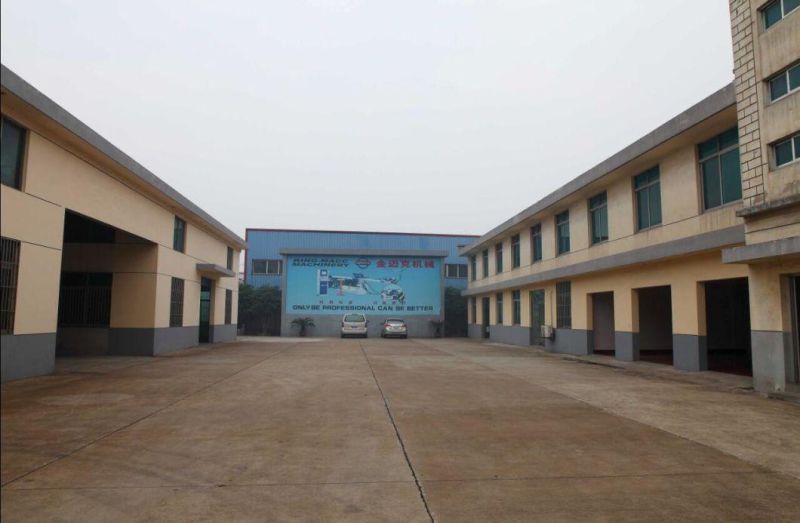

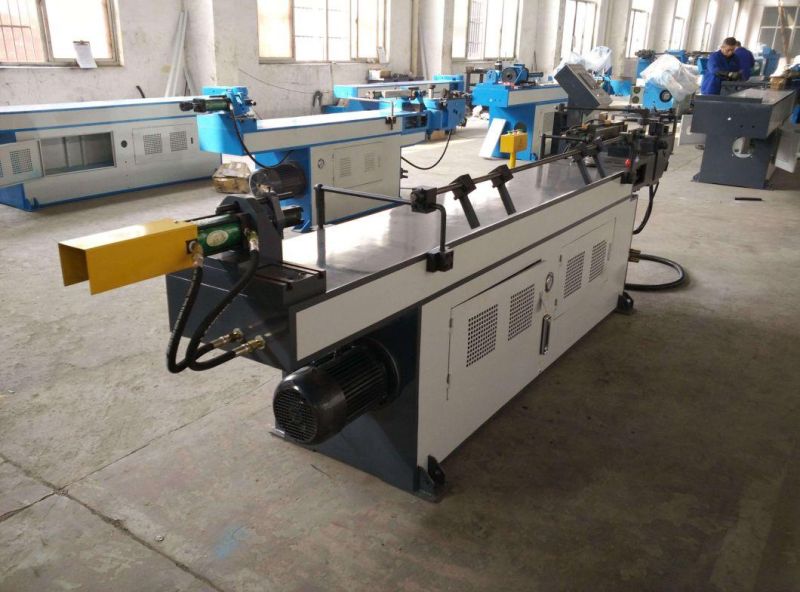

                              Company Photos
