• Model NO.：50A
• Power Source：Pneumatic
• Layout：Vertical
• Applicable Pipe Shape：Round Pipe,Solid Bar
• Applicable Material：S. S., M. S., Copper, Aluminium, Alloy, Galvanized
• Chamfering Theory：Cold Chamfering
• Technical：Dry Chamfering
• Color：Standard,Customized
• Chamfering Knife：Alloy Hard Knife
• Chaferming Face：Single,Double,Three Face
• Addtional Function：Double Head Chamfering
• Additional Function 2：Automatic Loading System
• Chamfering Angle：Standard or Customized
• Transport Package：Wooden Case
• Specification：850x750x1100
• Trademark：Beyong
• Origin：China
• HS Code：8462999000
• Production Capacity：500 Set,Year

Basic Info.

Model NO. 50A Power Source Pneumatic Layout Vertical Applicable Pipe Shape Round Pipe,Solid Bar Applicable Material S. S., M. S., Copper, Aluminium, Alloy, Galvanized Chamfering Theory Cold Chamfering Technical Dry Chamfering Color Standard/Customized Chamfering Knife Alloy Hard Knife Chaferming Face Single/Double/Three Face Addtional Function Double Head Chamfering Additional Function 2 Automatic Loading System Chamfering Angle Standard or Customized Transport Package Wooden Case Specification 850x750x1100 Trademark Beyong Origin China HS Code 8462999000 Production Capacity 500 Set/Year

Product Description

Brief Introduction on Pipe Chamfering Machine

Single Head Pipe Chamfering Machine also know as pipe beveling machine is a special kind of pipe end smooth machine. It is a kind of semi-automatic machine with manual feeding,automatic chamfering and automatic clamping driven by pneumatic.Chamfering process can be finished at one time in fast speed and accurate chamfering requirement. Clamp device and knife holder are precisely designed for ensure the center line between work-piece and knife holder at the same level. We keep many chamfering machines in stock for quick shipments.


Features on Pipe Chamfering Machine

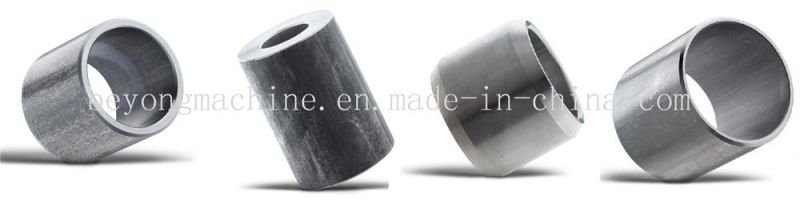

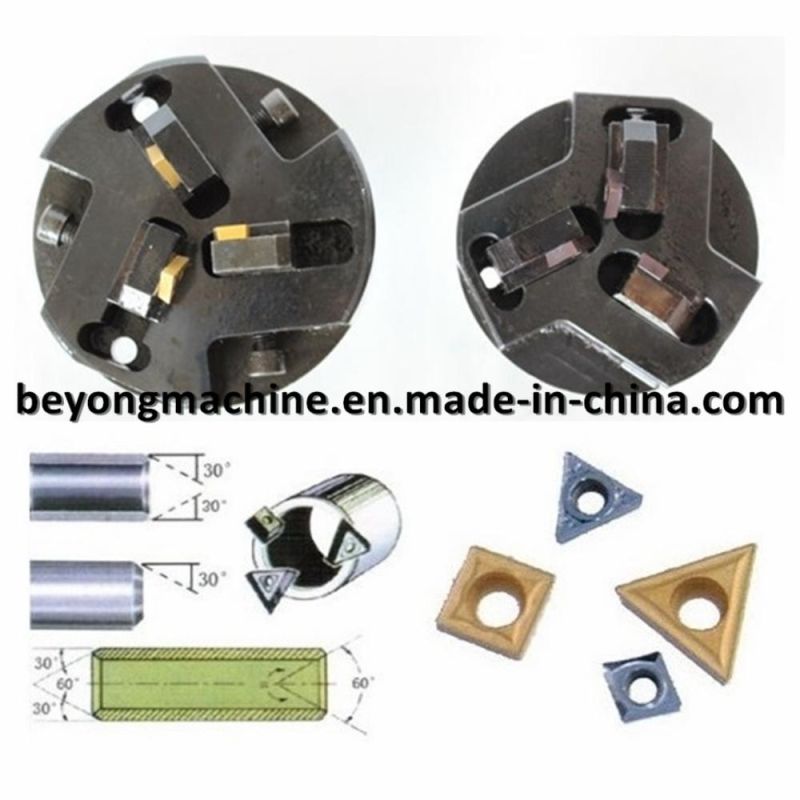

1. A circular tube modifies an interior angle,an external angle and flat plane at one time with fastness and precision.
2. Automatic and manual working mode which are convenient for adjusting the machine,mold and chamfering knife.
3. Material Available: Carbon Steel,Stainless Steel,Copper,Aluminum...
4. Each process of chamfering work is driven by pneumatic.
5. Clamp device and knife holder are precisely designed for ensure the center line between workpiece and knife holder at the same level.
6. Dual Feed Chamfer system:
7. First speed------Fast forward movement nearly to tube end to save the time.
8. Second speed---Infinitely variable forward adjustable Chamfering speed to get smooth finish.
9. Good mechanical parts ensure machine runs in high stability.

Technical Specification


Name	50A
Motor Power	1.5 KW
Chamfering Capacity	¢8-¢52mm
Air Pressure	6-8Kgf/cm2
Control Method	Pneumatic

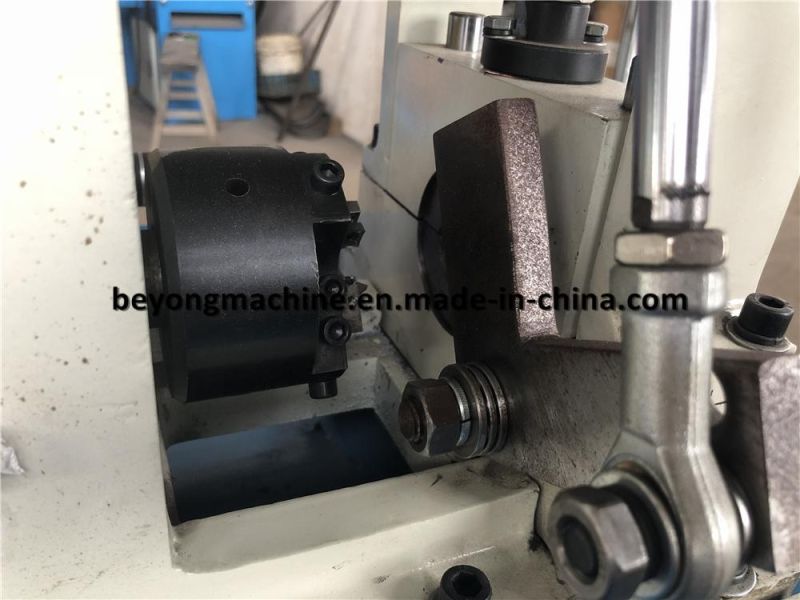

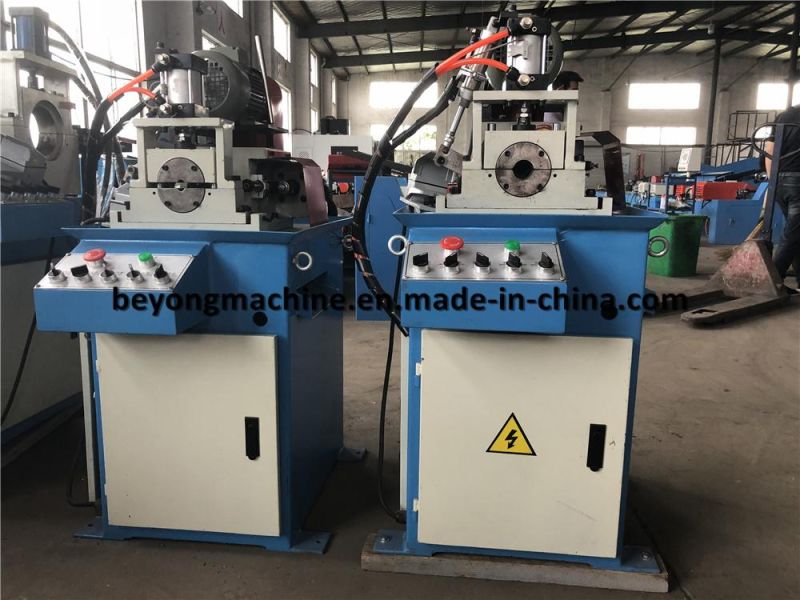

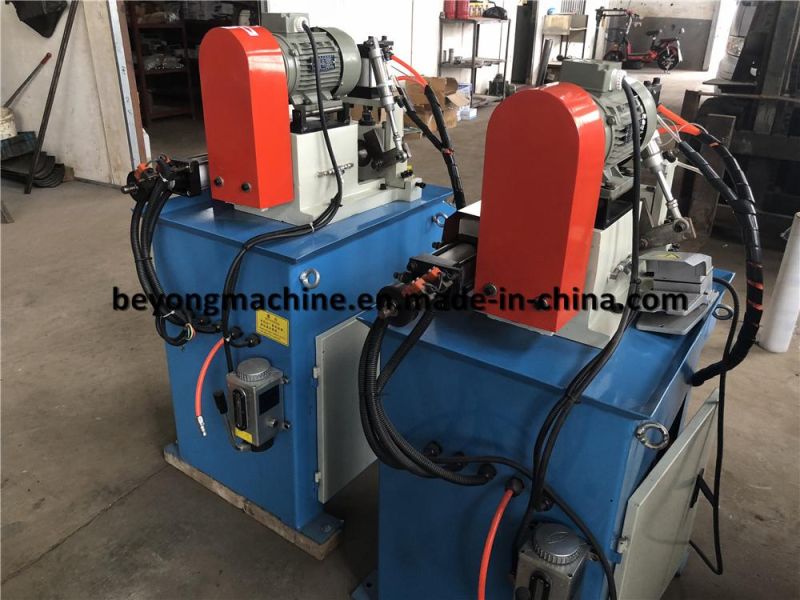

Machine Photos Reference




FAQ:

1. Q: Are you a manufacturer or trading company?
     A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.

2. Q:Where is the nearest airport to your company?
     A: Wuxi Airport or Shanghai Airport.

3. Q: How to choose the pipe/tube chamfering machines?
     A: You have to inform us following details:
         - Pipe Outdiameter Range
         - Wall thickness range
         - The pipe material
         - Production Volume
         - One End or Two Ends Chamfering

4. Q: What certificate do you have?
     A: We have both ISO and CE certificate.

5. Q:How about your service?
    A: Before Sales Serive:
         1. We will help our customer confirm the right model according to the offered pipe inforamtion.
         2. Welcome to visit our factory to see our machine and our workshop before you place an order.

         After Sales Service:
         1. We provide manual book,detailed machine installation,commissioning video for help you correctly
         operate machine.
         2. We provide free installation,commissioning and training at our factory.If you need engineer go to
             your factory for machine installation, air tickets,food,hotel,local transportation shoule be at your
             account.
         3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.

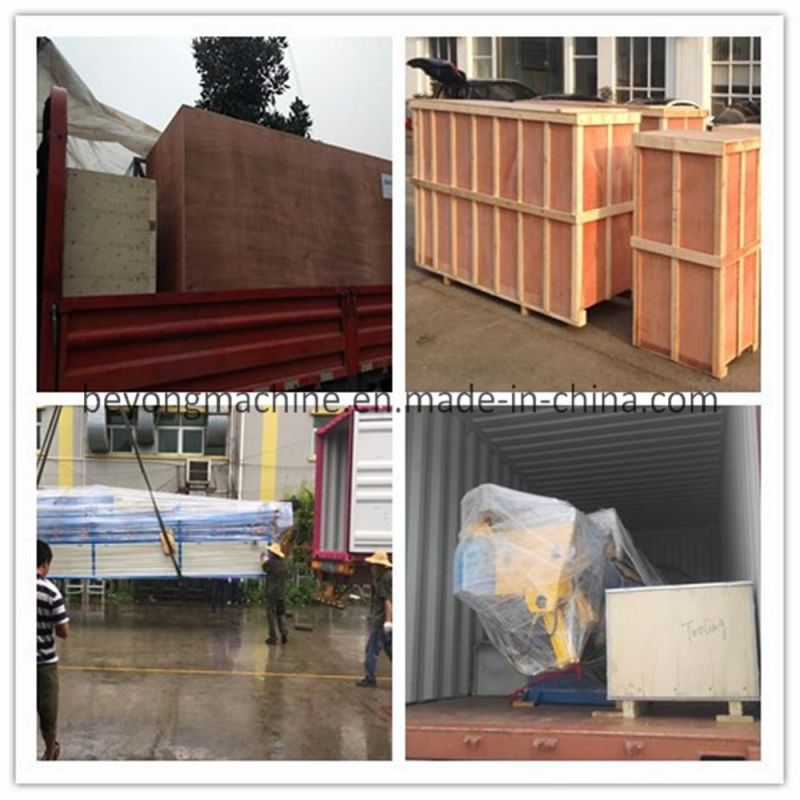

Packing&Delivery

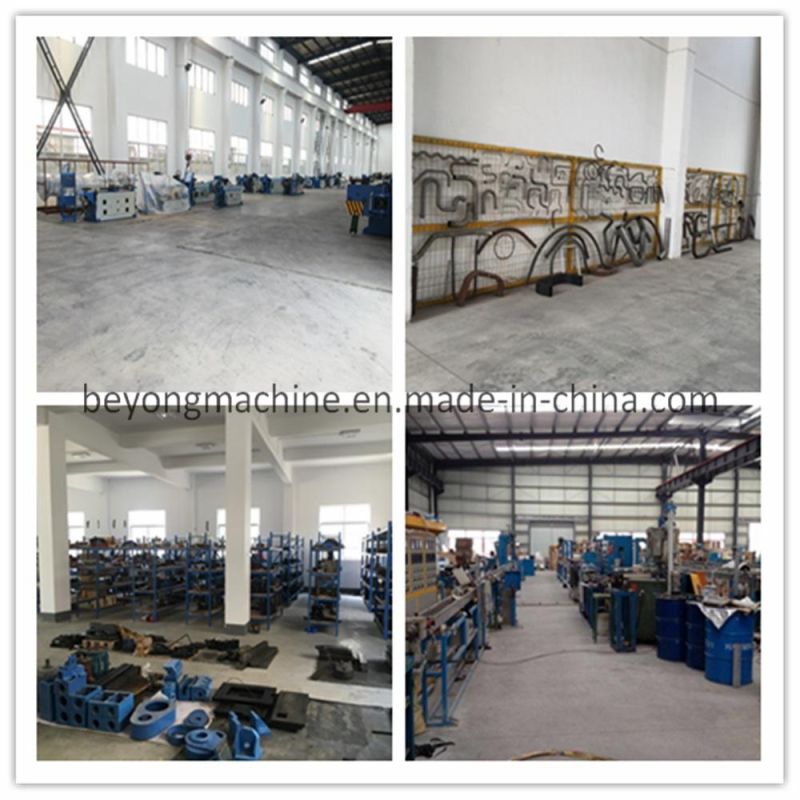

Company Introduction:

Zhangjiagang BEYONG Machinery Manufacturing Co.,Ltd has been serving on tube processing machinery industries for over 15 years. We are committed to providing our customers with quality products, solutions and services provided on schedule, at competitive prices. Standard of mechanical parts including structure,characters etc... are similar with European's.For out-sourcing parts including Electric,Hydraulic,Mechanical etc...are from well-known companies.

Our Machines with full line of metal pipe processing machines including tube bending machine, circular saw machine, end forming machine, chamfering machine, saw blade sharpener,riveting machine...etc. Further more,we can customized machines with advanced technology,such as multi-function machine with draw bending+push bending+punching,straightening+bending+cutting and so on.

Our machines export to Italy,Germany,Australia,Russia,New Zealand,Canada, Poland,Mexico, Brazil,Chile,Argentina,Saudi Arabia,South Africa, Egypt,England etc.
