• Model NO.：KJZD-1625
• Power Source：Electric
• Layout：Horizontal
• Transport Package：Wooden Box
• Specification：1600m*2500*1115
• Trademark：kangjia
• Origin：China
• HS Code：8461500090
• Production Capacity：100sets,Mounth

Basic Info.

Model NO. KJZD-1625 Power Source Electric Layout Horizontal Transport Package Wooden Box Specification 1600m*2500*1115 Trademark kangjia Origin China HS Code 8461500090 Production Capacity 100sets/Mounth

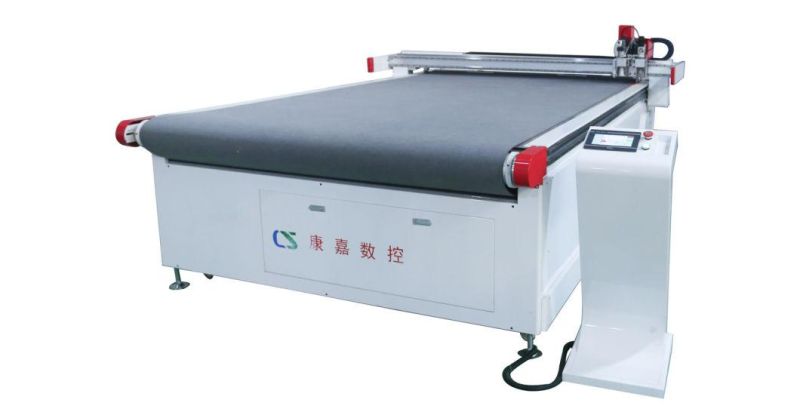

Product Description

Production

Model	KJCT-1625 (can be customized)
Fan power	9kw
Voltage	110V/220V/380V±10%,50HZ 60HZ
Working characteristic	Computer operation and cutting machine at the same time,complete data transmission quickly,can be used continuously
Cutting speed	max. 140m/min
Cutting thickness	0.1-50mm
Effective cutting area	2500mm*1600mm
Cutting accuracy	±0.1mm
Overall dimension	3260*2120*1315mm
Cutting materials	Corrugated paper,plastic corrugated sheet,grey board,ivory board,film,composite materials,leather ,fabric,slab rubber,pear wool,sponge,KT board etc.
Multifunctional head for different cutter	Half knife, full knife, punching roller, V-cutter, milling knife, pneumatic knife, electric knife, Circular knife (round knife / rotary knife); pin
Location mode	Infrared laser
Material fixed mode	absorption
Transmission interface	Network transmission
Compatible software	Kangjia intelligent software
Control system	LED touch screen
Driving mode	Racking drive
Drive motor	Delta( /Panasonic/Fuji/Yaskawa optional)
Guide rail	Brand :Yintai
Body structure	Body welding
Suction case	Aluminum case
Certification	CE/SGS,ISO9001/ISO14001/ISO18001
Safety device	Mechanical anti-collision device/infrared radiation

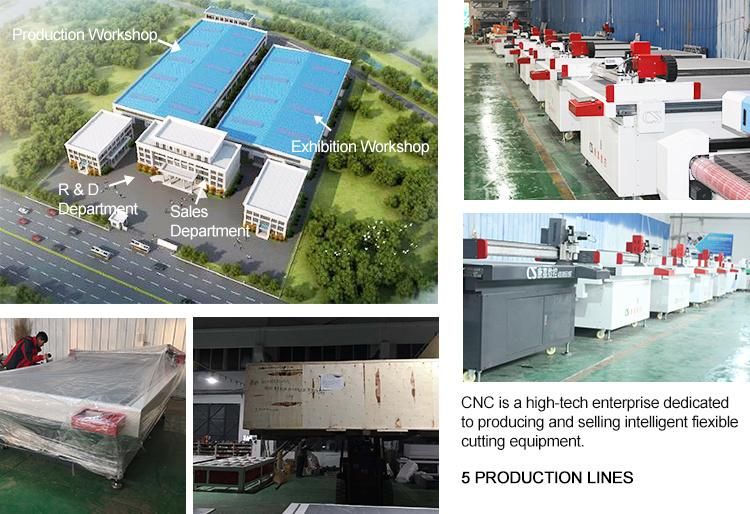

Factory information



Exhibition


Packing and delievery




FAQ
Q:I want to buy this machine,what suggestion can you give?
A:Please tell me what material do you process and what's the size of your material?

Q:What's the delivery cost & time?
A: Please tell me your sea port name,I check shipping cost,after production we will deliver ASAP.

Q:Have you exported to our country?
A:We have been in this field for 5 years,we have CE,ISO,SGS certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.

Q:This is the first time I use this this kind of machine,is it easy to operate?
A:There are English manual or guide video that show how to use the machine,if there is still have any question,please contact us by e-mail/skype /phone/trademanager online service at any time.

Q:If machine have any problem after I receive it ,how can I do ?
A:Free parts send to you in machine warranty period if machine have any problem ,if the parts less than 0.5kg,we pay the postage.
 Our serviceBefore sales:

1. Reply you within 24 hrs for your inquiry or question.
2. Learn your detail requirements and what material you will cut. Then recommend the good solution that suit for you.
3. Sign sales contract and receive the deposit.

In sales:

1. Arrange production.
2. Track the production schedule.
3. Debug machine.
4. Pack with wooden box and shipping.

After-sales service:

1. 12 months warranty for the whole machine.
   2. Technical support by phone, email or WhatsApp / Skype around the clock.
   3. Friendly English version manual and operation video CD disk.
   4. If necessary, the fields service can be provided.

Terms and conditions1. Delivery time: Within 20 days after receiving the deposit.
2.Payment terms: 50% prepaid, pay off the balance before shipment.
3. Warranty: 1 year quality warranty, except the vulnerable parts (knife, sliding block, limiting stopper, transmission box, cutter fixture.). After 12 months, the seller provide paid maintenance.
