• Model NO.：EMAC-BB-S12
• Type：Hydraulic Bending Machine
• Outside Dimension：4150X1590
• Bending Accuracy：0.3
• Total Power：7.2
• Level Bending：200*15 mm
• Nominal Force：400kn
• Transport Package：Export Standard Free-Fumigation Wooden Case
• Specification：Total Weight: 2700kgs
• Trademark：BEIENE
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. EMAC-BB-S12 Type Hydraulic Bending Machine Outside Dimension 4150X1590 Bending Accuracy 0.3 Total Power 7.2 Level Bending 200*15 mm Nominal Force 400kn Transport Package Export Standard Free-Fumigation Wooden Case Specification Total Weight: 2700kgs Trademark BEIENE Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

Advantages:
1.Closed Bending Structure --Using a precision linear guide to ensure fabricating accuracy.

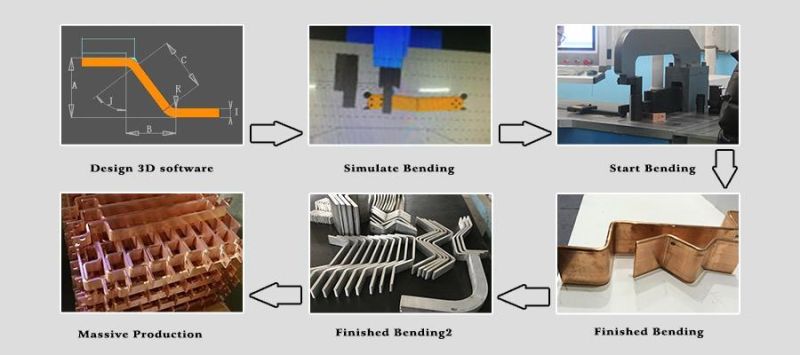

2.GJ3D Software Programming --Accurately calculating the  punching position by 3D graphics.
3.Touch Screen -- Allowing the easy setting of die parameters and the operation of equipment.
4. High-Speed-- Operation System  Guarantee high precision and fast efficiency.
Products Description:
1. This machine adopts unique large closed type bending structure.
2. It also has the convenience of the open type bending.
3. It possesses the premium property of the closed type bending.
4. The bend unit (Y-axis) has the function of angle error compensation, its bending accuracy can meet the high performance norm.
5. When it is in vertical bending, the machine has the function of auto clamping and release, the processing efficiency is greatly improved compared with manual clamping and release.





Specification:

Item	Unit	Parameter
Nominal Force	KN	400
Bender Accuracy	Degree	±0.3°
Max  bending Stroke	mm	250
Stroke of side striker	mm	2000
Max Moting Speed of Side striker(X Axis)	m/min	15
Bending  Head(Y Axis)	m/min	Fastest 5;  low: 1.25
Min inner Width of U-shape bend	mm	40(Note:Please consult us for smaller dimensions)
Max bending angle	degree	90
Level  bending (W*H)	mm	200X15
Vertical Bend(W*H)	mm	125×15
Total power	kw	7.2
Main machine dimension:L*W	MM	4150X1590
TOTAL Weight	kg	2700

Packing pictures:



Certificate:

Thumbs-up:
