• Model NO.：Levelling, slitting and Cutting machine
• Transport Package：20gp*1
• Trademark：LIMING MACHINERY
• Origin：Fujian, China (Mainland)
• Production Capacity：600sets,Year

Basic Info.

Model NO. Levelling, slitting and Cutting machine Transport Package 20gp*1 Trademark LIMING MACHINERY Origin Fujian, China (Mainland) Production Capacity 600sets/Year

Product Description

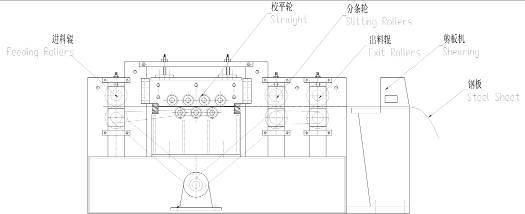

The Chart of Process Flow


Technical Parameters

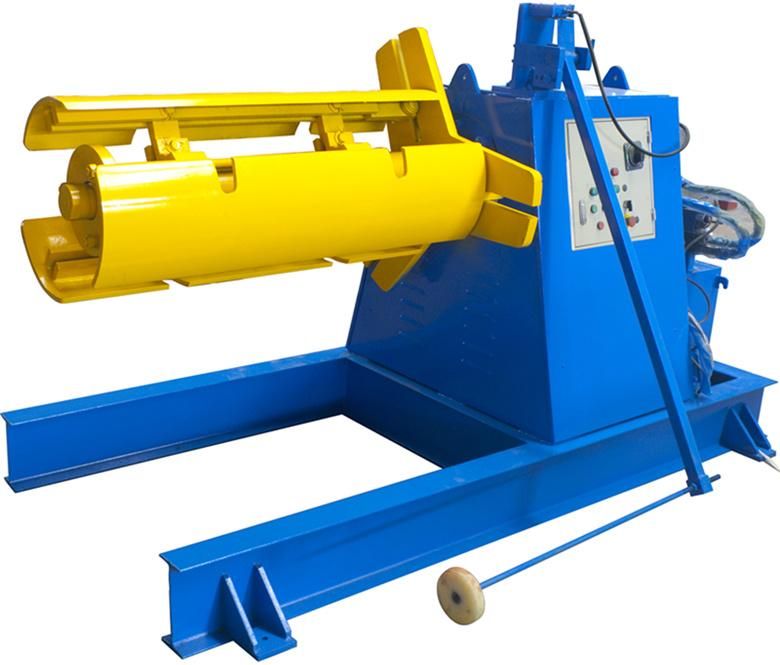

a.5 Ton X 1250 Hydraulic Un-coiler

Hydraulic system expand coil inner hole, Pump motor: 3KW
Frequency Inverter to regulate turning speed, Motor: 3KW
Link-connect expanding system
Load capacity = Max.5Tons
Coil Inner-diameter= 510±30 mm mm, Coil width = Max.1250mm
Automatic stopping device with limited switch as assistance to control stop/star rotation


b.Levelling, slitting and Cutting machine

Polythene Film-On device, un-powered
Feeding Section with guide device
Levelling Device with 5 over 4 shafts to remove the Coil-set
Levelling/Slitting motor: 15KW
One stage of slitting rollers required
Total Seven sets of slitting tools, Max .eight trips at one time
Extra one set of slitting wheels used as spare parts
The min. slitting width between two pieces of tools is 70mm
The min. slitting width at edge is 40mm
Electric guillotine, Main Motor=5.5KW
Working width: MAX.1250mm; work thickness: 0.4-3.0mm
Protection Mesh Cover Above Roll-former To Avoid Hands Go Inside


c.PLC control system

Control the quantity & cutting length automatically
Combined with: PLC, Touch Screen(Siemens), Inverter (Schneider),
Encoder (Omron), etc
Cut-to-length tolerance≤±2 mm
Control voltage 24V

d.Product Rack   un-powered, 2 meters, 2 units







After-Sale Service In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
If installation is needed, the buyer shall make the following preparation before arrival of technicians.
Terms Of Trade

Package & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.
Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory.
