• Model NO.：HJ-CFS0401
• Rolling Speed：7-12m,S
• Cutting Temperature：850*C Degrees Celsius
• Product Length：150~230mm
• Rotary Sword Diameter：800mm
• Motor Power：112kw
• Motor Speed：500 R,Min
• Transport Package：Seaworthy Packing or as Customers′request
• Specification：SGS, BV, ISO
• Trademark：Hangji
• Origin：Xi′an Shaan
• HS Code：8455213000
• Production Capacity：200 Sets, Year

Basic Info.

Model NO. HJ-CFS0401 Rolling Speed 7-12m/S Cutting Temperature 850*C Degrees Celsius Product Length 150~230mm Rotary Sword Diameter 800mm Motor Power 112kw Motor Speed 500 R/Min Transport Package Seaworthy Packing or as Customers′request Specification SGS, BV, ISO Trademark Hangji Origin Xi′an Shaan HS Code 8455213000 Production Capacity 200 Sets/ Year

Product Description

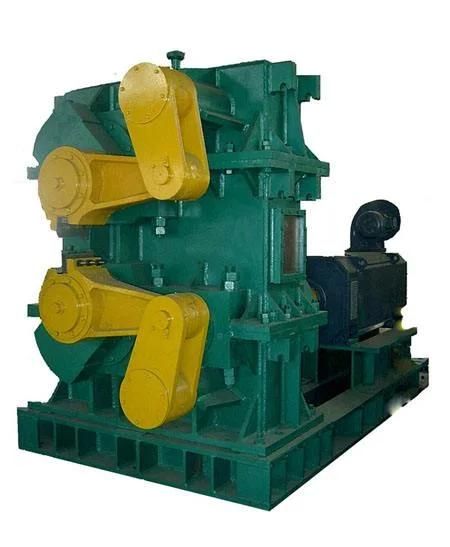

The function of the flying shear

1, As the head and rear part of the rolling parts have some defect or the temperature of steel is too low, the flying shear need to cut the head and rear to insure the quality of the rolling parts before it gets into the finishing mill.

2, The flying shear will cut the rolling parts immediately if any failure occurs to the finishing mill, then the switch will turn the parts to snap shear to snap.
Equipment composition and structural characteristics.

Flying shear is composed by transmission equipment, cutting support base and upper & lower spindle. Rotary tool rest has installed backsword, two spindles which are parallel with start-stop work system. Tool rest makes one revolution to finish one cutting period. Motor drive the spindle through reduction gears and make the upper, lower spindle rotated through the gear.

The lower spindle is connected with transmission equipments. Motor adapt separately ventilated machine and equipped speed measuring motor to measure the speed of the direct motor. Safety gear coupling is installed between the motor and reduction gears to insure the safety to use the equipment.

Cutting support base is a welded case with four-layers, it has four gear rolls inside, including upper, lower spindle and the others are transition gear rolls

Upper spindle has optical-electricityencoder to control the start-stop position of the shear blade in the processing of the cutting.

Lubrication
Recycled lubrication is adopted for internal gear and bearing of the shearing machine with dilute oil supplied by outside dilute oil station. Sump lubrication is applied for redactor.
