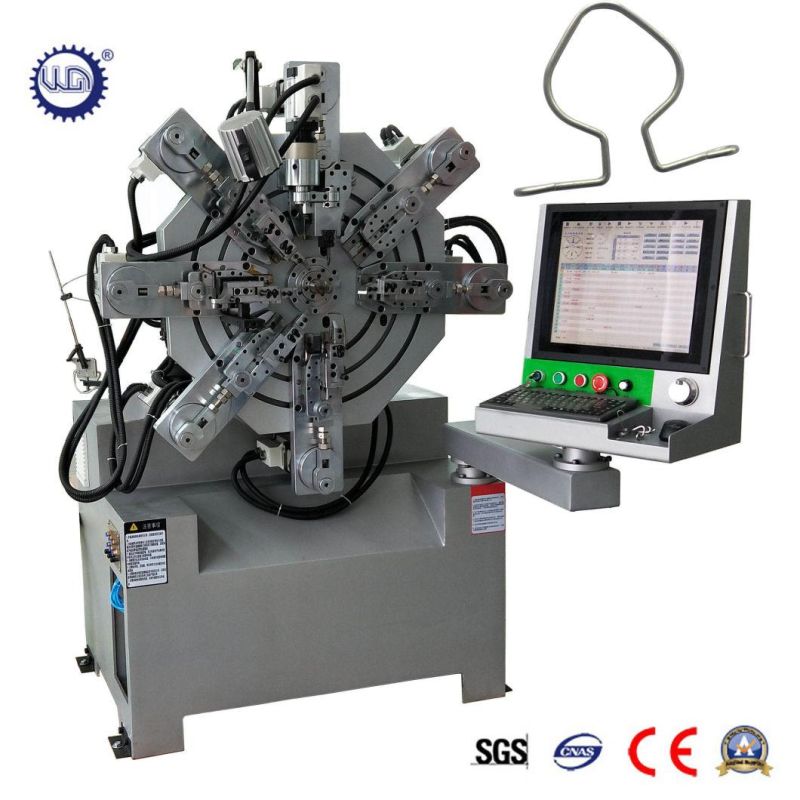

Hot Sale High Quality CNC Automatic Wire Bending Machine Manufacturer From Dongguan China
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Certification：Ce ISO
- Type：Fully Automatic
- Weight：950kg
- Power：7.5kw
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Application：Steel
Base Info
- Color：White
- Usage：Heat Steel Bar Head
- Transport Package：Standard Export Case
- Trademark：WG
- Origin：Guangdong, China (Mainland)
Description
Basic Info.
Color White Usage Heat Steel Bar Head Transport Package Standard Export Case Trademark WG Origin Guangdong, China (Mainland)Product Description
Product Description
| Model | GT25-10 |
| Wire Dia.(mm) | 0.2-2.5 |
| Min./Max.wire feeding value(mm) | 0.01/10000 |
| Max.wire feeding speed(m/min.) | 120 |
| Max.wire feeding | umlimited |
| Axis number | 10 |
| Total output power of servo motors | 7.5KW |
| Input power supply | 380v/50hz/3ph |
| Contral system | Made in Taiwan |
| Program storage | 3000 |
| Compressor air presure | 5-6 |
| Probe number | 3 |

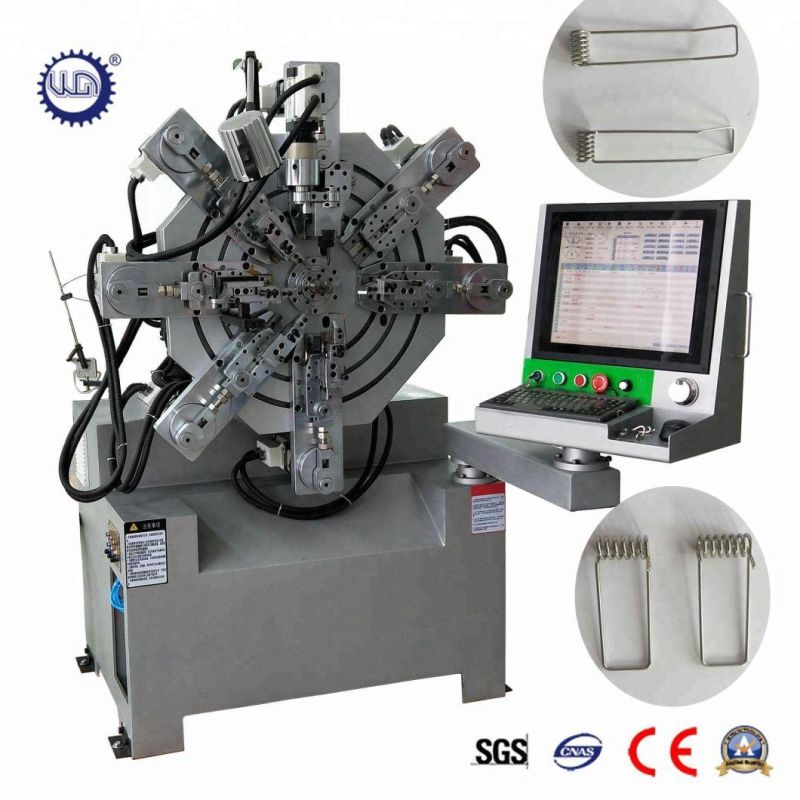

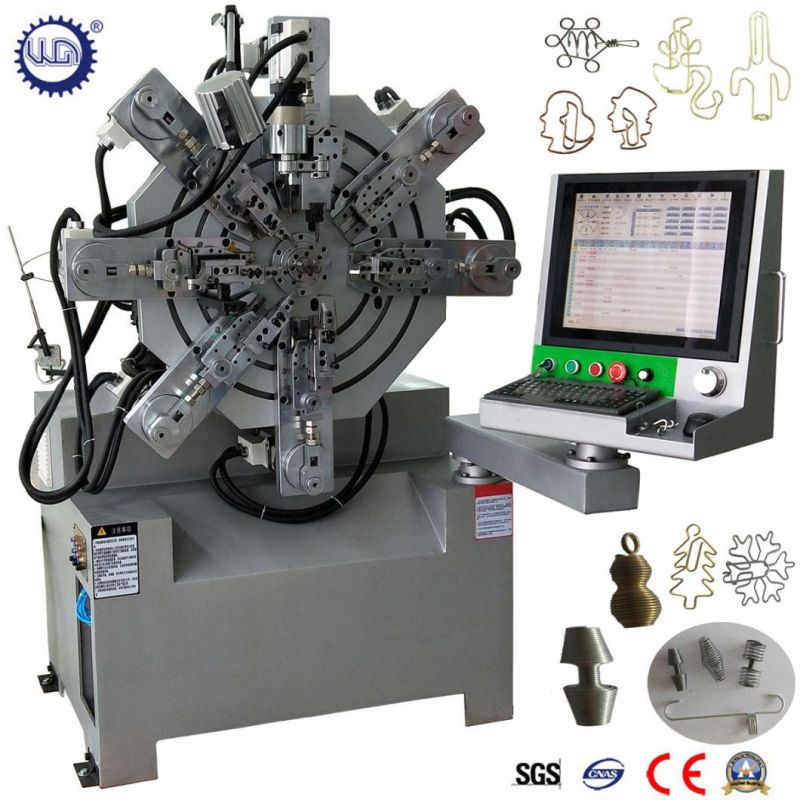

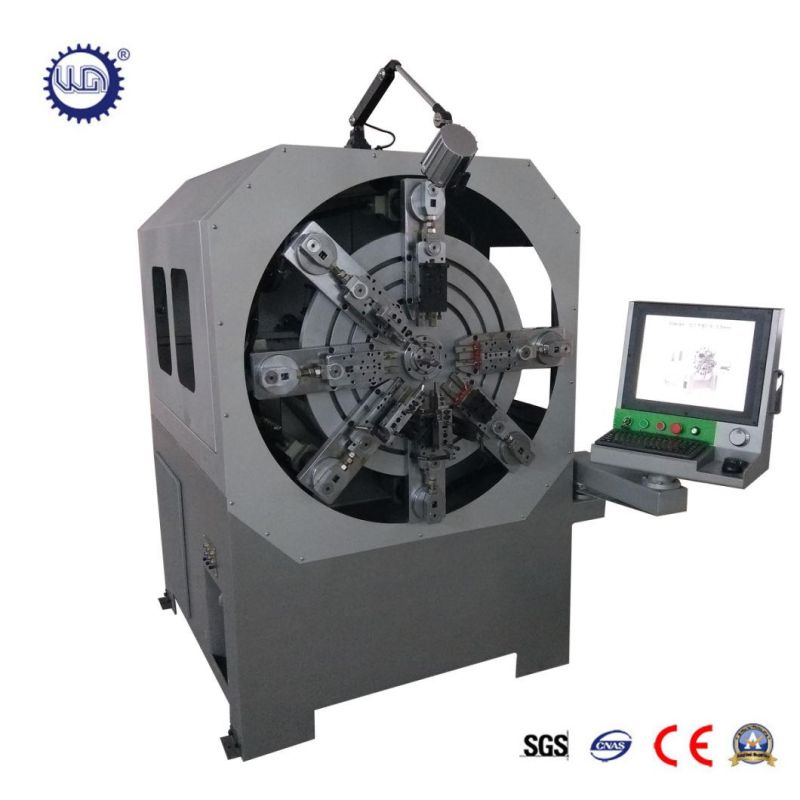

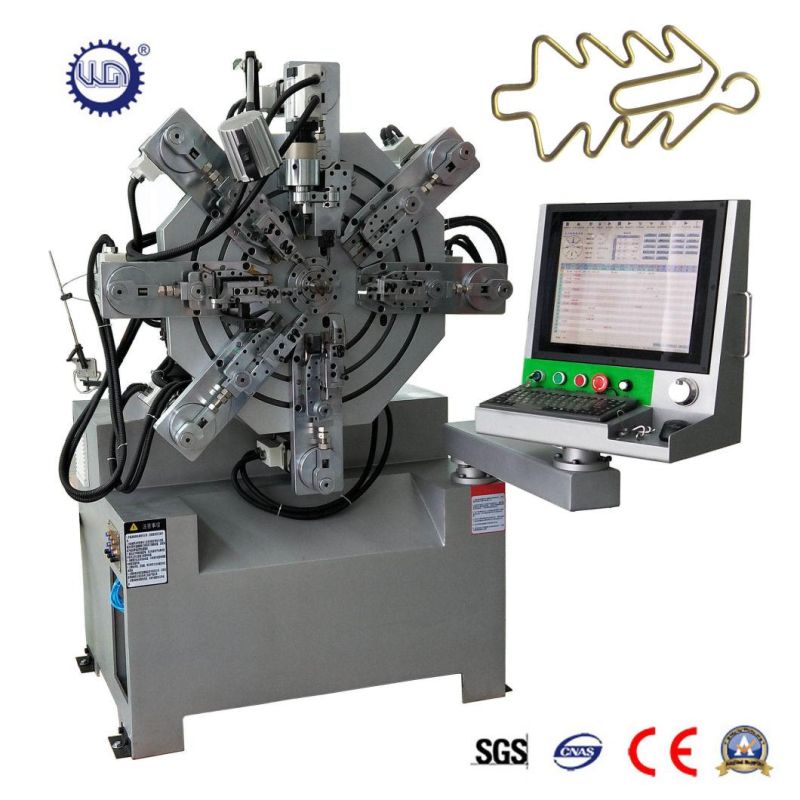

This machine is designed to have no cam and without swing arm, which shorten the installation time and labour cost. less skill will be enough for tough task. keeping the advantage of traditional forming machine. excellent servo motors and reducers ensures excellent movement and precision of forming.
| Model | GT25-10 |
| Overall length | 1100mm |
| Overall width | 800mm |
| Overall height | 1550mm |
| Net weight | 950kg |
Related Products
GT20-10
camless wire bending machine include 10 Axis
suit for 0.2-2.0mm wire diameter
GT25-10
camless CNC spring forming machine include 10 Axis
suit for 0.2-2.5mm wire diameter,
GT28-12R
camless CNC machine with change wire 12 Axis
suit for 0.4-2.8mm wire diameter
