• Model NO.：SHDC-200CNC
• Type：Hole Drilling Machine
• Axis：3-Axis
• Tool Stack：1 Stack
• Transport Package：Plywood Case
• Specification：LWH: 1700x800x1100mm, GW: 400kg
• Trademark：STM
• Origin：China
• HS Code：8462219000
• Production Capacity：500

Basic Info.

Model NO. SHDC-200CNC Type Hole Drilling Machine Axis 3-Axis Tool Stack 1 Stack Transport Package Plywood Case Specification LWH: 1700x800x1100mm, GW: 400kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500

Product Description

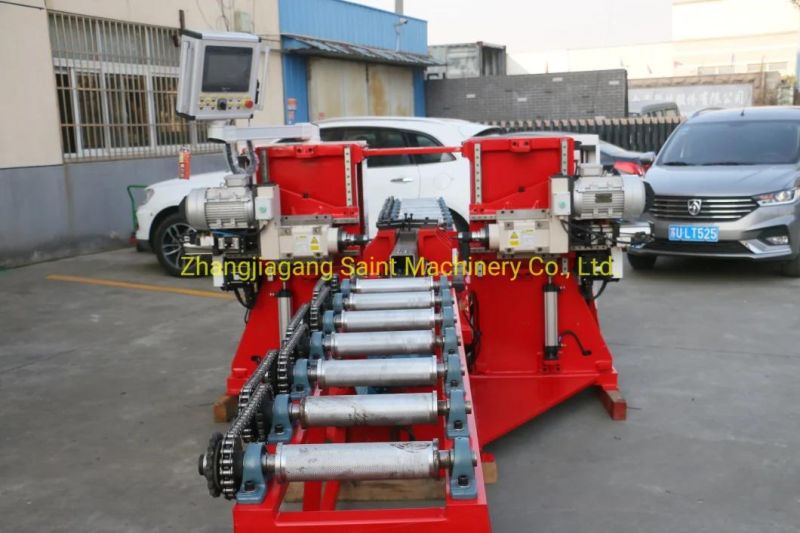

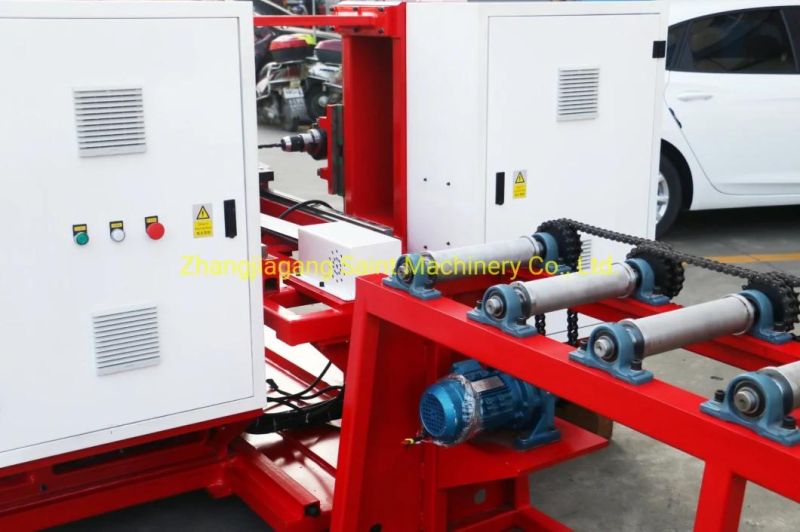

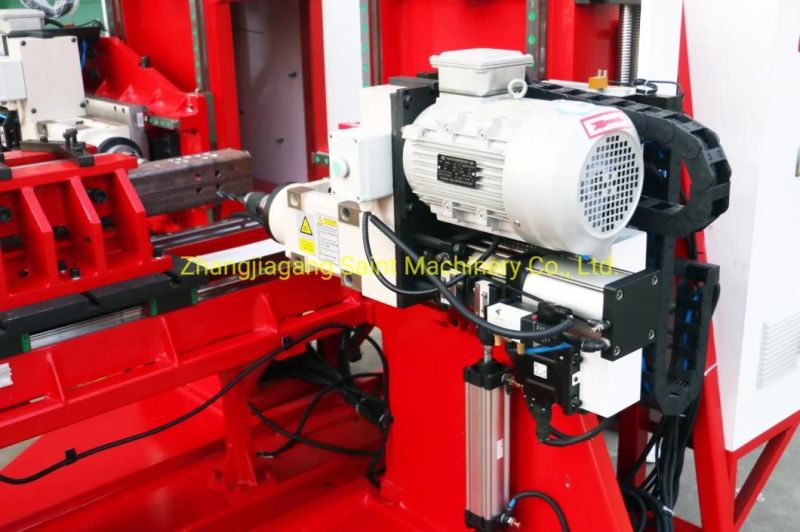

1. SHDM-200CNC-5A-L12000 is the 5-axis AC servo pipe hole drilling machine with 12.6 meters pipe drilling length. The materials loading is by hand.

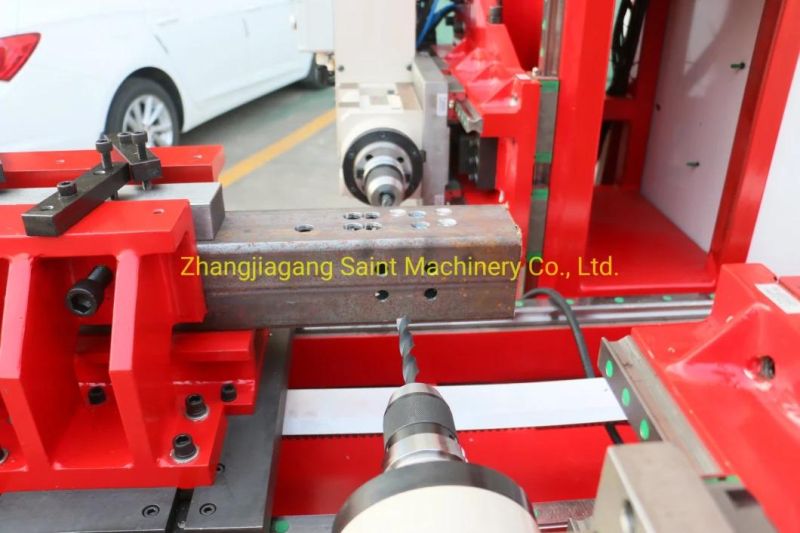

2. SHDM-200CNC-5A-L12000 can drill the square tubes, round tube and other profiles.
3. SHDM-200CNC-5A-L12000 can drill the square tubes 100x100mm with 6mm thickness, and 200x200mm with 10mm thickness.
4. SHDM-200CNC-5A-L12000 can drill the holes less than 14. If the holes are bigger than 14, it should be drilled twice. For example, if the holes are 20, the machine can drill 12 holes firstly, and then change the drilling tools to drill the holes into 20.
5. Fast tools changing.


Parameters	SHDM-200CNC-5A-L12000
Drilling capability	Max round Φ200×12 mm Max square 200x200x10mm (mild steel, stainless steel, copper, aluminum)
Drilling Length	200mm~12000 mm
Hole size	5-14mm (more than 14mm can change tools)
Material Feeding speed	Max 500 mm/sec
Material Feeding accuracy	±0.1 mm
Drill feed speed	Max 20mm/sec
Drilling accuracy	±0.05mm
Drill feed drive	AC servo motor
Material feed drive	AC servo motor
System pneumatic pressure	0.8Mpa
Main body Size	1800×2600×2000mm
Size with feeding rack	12000x2600x2000mm
Weight (main body)	1800kg
