• Model NO.：W11S-25X2500
• Type：Roller-Bending Machine
• Function：Roll Round
• Rollers：3 Rollers
• Control System：Omron PLC
• Overturned Device：Option
• Transport Package：Nude Packing, Steel Pallet
• Specification：6200x2300x2600mm
• Origin：Jiangsu China
• HS Code：8462299000
• Production Capacity：40PCS,Month

Basic Info.

Model NO. W11S-25X2500 Type Roller-Bending Machine Function Roll Round Rollers 3 Rollers Control System Omron PLC Overturned Device Option Transport Package Nude Packing, Steel Pallet Specification 6200x2300x2600mm Origin Jiangsu China HS Code 8462299000 Production Capacity 40PCS/Month

Product Description

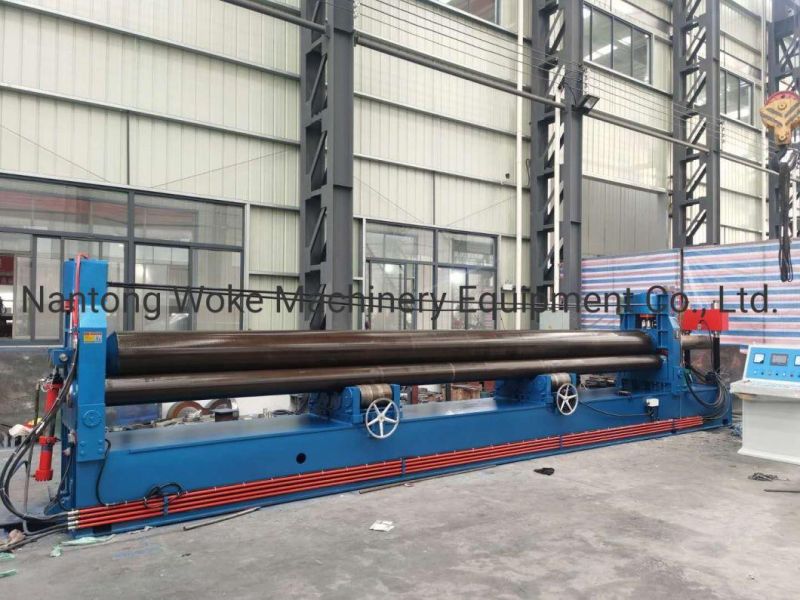

· 3 Rollers Plate Rolling Bending Machine, PLC Control


Our rolling bending machine advantages:
This model device adopts the Japanese technology. It can roll plate to cylinder, U-shape and so on. The up roller of this device can do up and down, right and left move. And all the move actions can show by figure.
Fully hydraulic drive, Siemens control system, can get perfect rolling work on big thickness with small diameter in round and tapered shape.

Rolling bending machine features:

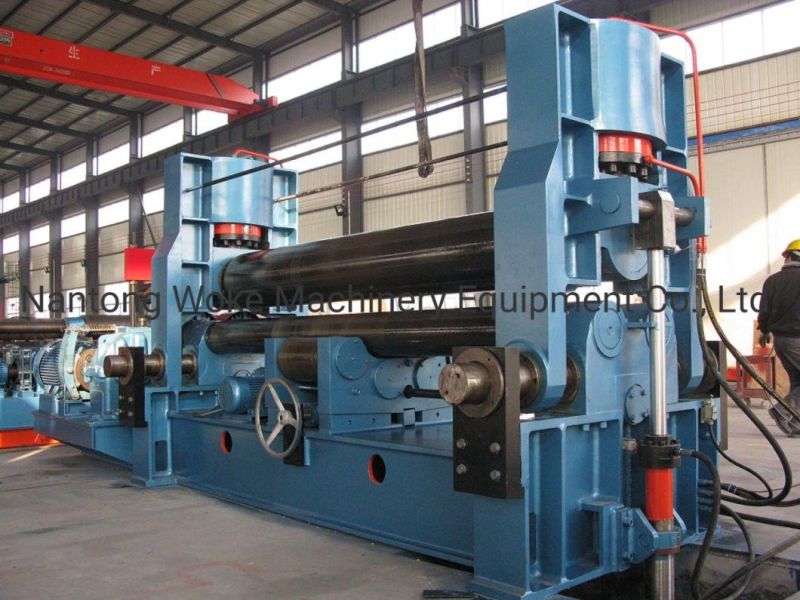

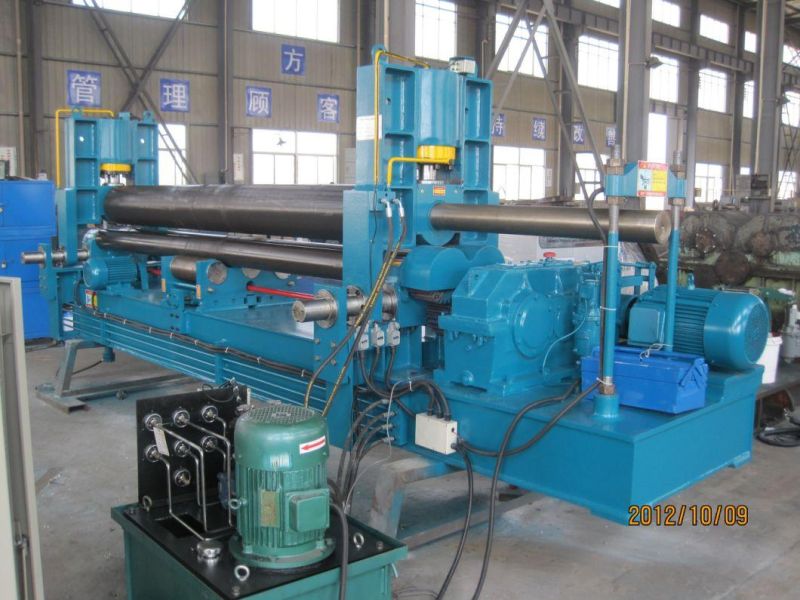

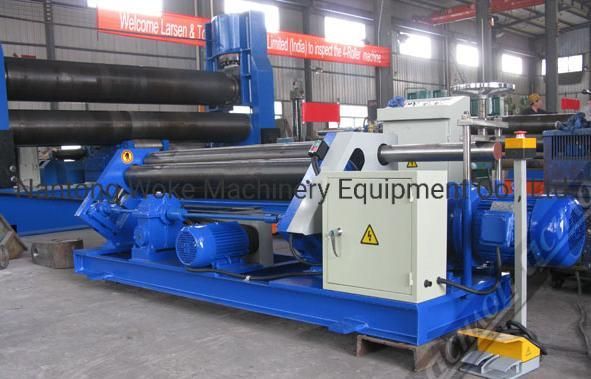

Upper roller universal 3-roller rolling machine with a universal upper roll is characterized in that it can pre-bend the plate and its upper roll can move either vertically or horizontally. When the hydraulic oil in both hydraulic cylinders arranged at both ends of upper roll is applied on pistons, the roll moves vertically to apply pressure on plate and deform it. Motor and reducer are used to drive upper roll to move horizontally in order to pre-bend the ends of plate. As main driving parts, both lower rolls rotate to provide torque for rolling plate.
The Upper roller universal 3-roller rolling machine with universal upper roll can pre-bend the ends of plate with one time loading. It can roll cylindrical, conical and arc workpieces and is controlled by PLC so as to increase the production efficiency and reduce the production cost.

Technical Parameters:

Model	Max.rolling thickness	Max.pre-rolling thickness	Plate width	Diameter of upper roller	Main motor power
	mm	mm	mm	mm	kw
W11S-12X2000	12	10	2000	250	5.5
W11S-16X2000	16	12	2000	255	7.5
W11S-16X2500	16	12	2500	300	11
W11S-18X3000	18	14	3000	350	11
W11S-20X3000	20	16	3000	375	15
W11S-25X2500	25	20	2500	380	15
W11S-30X2500	30	25	2500	410	22
W11S-30X3000	30	25	3000	450	30
W11S-32X3000	32	28	3000	480	30
W11S-35X2500	35	30	2500	460	30
W11S-35X3000	35	30	3000	510	37
W11S-40X2500	40	35	2500	500	37
W11S-40X3000	40	35	3000	540	45
W11S-40x4000	40	32	4000	610	45
W11S-45x3000	45	40	3000	590	45
W11S-45x4000	45	40	4000	660	45
W11S-50x4000	50	45	4000	700	55
W11S-55x3000	55	45	3000	620	55
W11S-55x4000	55	45	4000	750	55
W11S-60x3000	60	50	3000	650	55
W11S-60x4000	60	55	4000	780	75
W11S-65x4000	65	60	4000	810	75

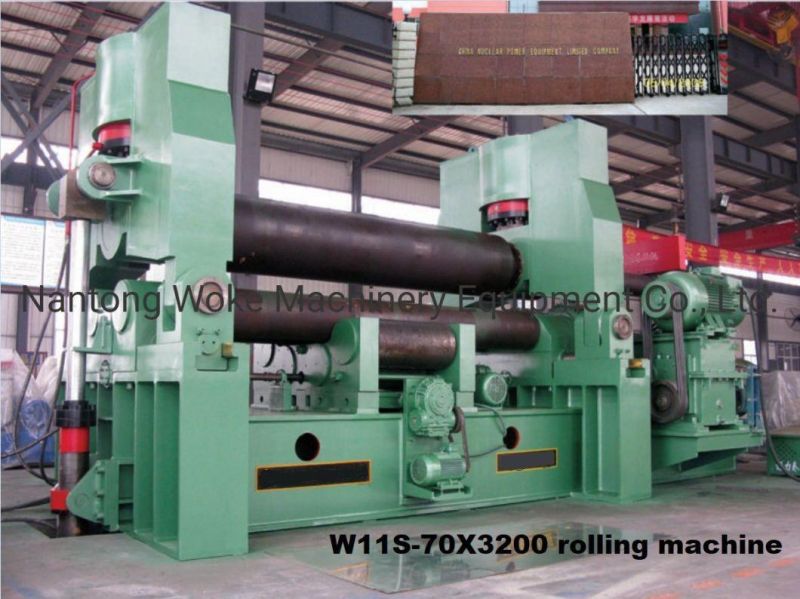

W11S-70x3000	70	60	3000	710	75
W11S-70x4000	70	65	4000	820	75
W11S-75x3000	75	65	4000	740	75
W11S-80x3000	80	70	3000	760	75
W11S-80x4000	80	75	4000	860	75
W11S-90x3000	90	80	3000	790	90
W11S-100x3000	100	90	3000	820	90
W11S-110x4000	110	90	4000	940	90
W11S-120x3000	120	100	3000	860	90
W11S-120x4000	120	100	4000	990	110
W11S-130x3000	130	110	3000	960	2x75
W11S-160x3000	160	120	3000	1080	2x75
W11S-160x4000	160	130	4000	1260	2x90

We also supply
· 2 roll rolling bending machine

· 4 rolls rolling bending machine(CNC)


· 3 rolls mechanical rolling bending machine
