Motorised Plate Curving Rolling Bending Machine (PR-1.5/1270)
ACE Machine Tools Co., Ltd.- Automation：Manual
- Capacity - Mild Steel：1.5mm
- Roll Diameter：72mm
- Useful Length：1270mm
- Application：Machinery & Hardware
- Transport Package：Sea Worthy Packing
Base Info
- Model NO.：PR-1.5,1270
- Specification：CE
- Trademark：Acemachinetools
- Origin：China
Description
Basic Info.
Model NO. PR-1.5/1270 Specification CE Trademark Acemachinetools Origin ChinaProduct Description
Motorised Plate Curving Rolling Bending Machine (PR-1.5/1270)Capacity - Mild Steel: 1.5mm
Useful Length: 1270mm
Roll Diameter: 72mm
This machine has the following features:

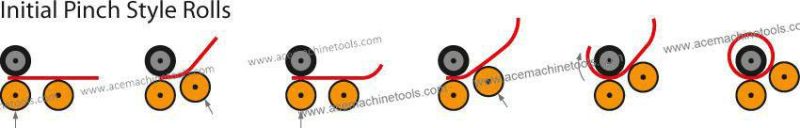

1, Initial pinch rolls with pre-bending2, Two rolls powered by gearbox drive system3, Swing out end enables complete cylinder to be removed4, Safety wire interlock system with emergency shut-off5, Precision ground rolls with wiring grooves6, Heavy duty steel welded main frames7, Mobile foot pedal control
| ORDER CODE | |
| Rolls Type | Initial Pinch |
| Capacity - Mild Steel | 1.5mm |
| Useful Length | 1270mm |
| Roll Diameter | 72mm |
| Motor Power | 1.5kW / 2hp |
| Motor Voltage | 415V |
| Dimensions (LxWxH) | 1800 x 550 x 1170mm |
| Weight (nett) | 280kg |
