• Model NO.：Yg-51
• Type：Pipe and Tube Bending Machine
• Application Pipe Diameter：13-51mm
• Motor Power：3kw
• Voltage：380V50Hz
• Bending Angle Number：10
• Application Pipe Wall Thickness：Less Than 3mm
• Weight：300kg
• Transport Package：Wooden Cases
• Specification：900*800*1000mm
• Trademark：Yugong
• Origin：China
• HS Code：8429401900
• Production Capacity：1000

Model

YG-26

YG-38

YG-51

Application pipe diameter

10-26mm

16-38mm

16-51mm

Motor Power

2.2kw

3kw

3kw

Spindle speed

20/min

16/min

8/min

Voltage

380V50Hz

380V50Hz

380V50Hz

Bending angle number

10

10

10

Application pipe wall thickness

≤2mm

≤3mm

≤3mm

Dimension

800*650*900mm

900*800*1000mm

900*800*1000mm

Weight

180kg

260kg

300kg

1. Smart chip control

2. Configurable intelligent control system with fast response

3. Can be molded at one time, suitable for mass production

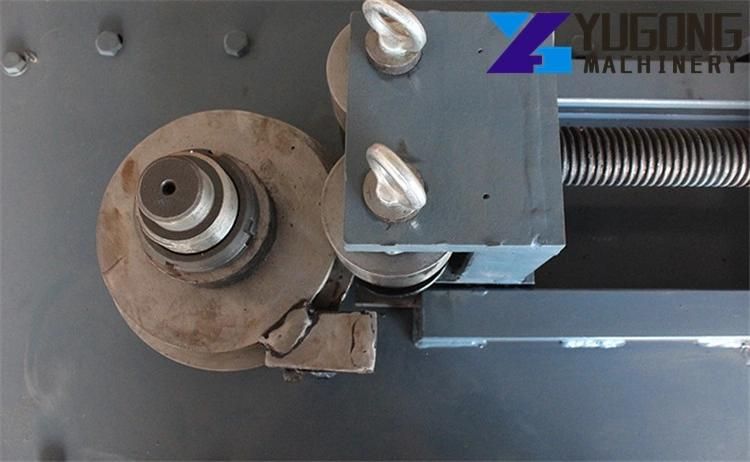

4. During the process of tube bending , the wheel mold rotates, and the hydraulic cylinder supports the roller to advance and retreat.

5. For pipes of different outer diameters, only need to change different abrasive tools.

6. It can bend the angle of 0-180 °, the angle can be controlled.

Product  details:

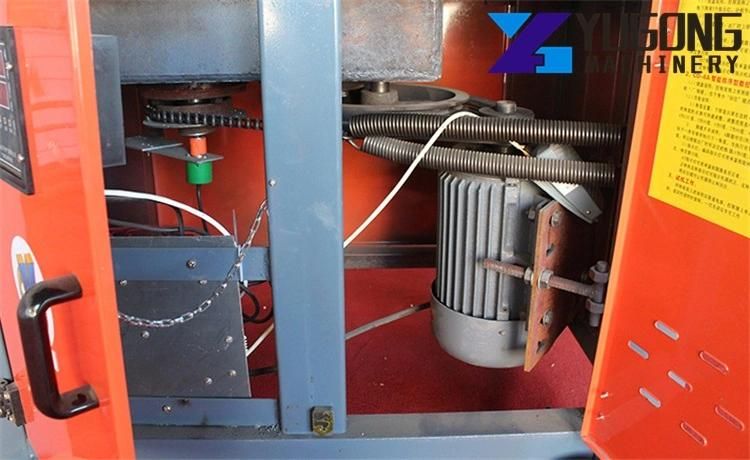

1. Gear transmission , wear resistance


2. Pure copper motor, durable and powerful

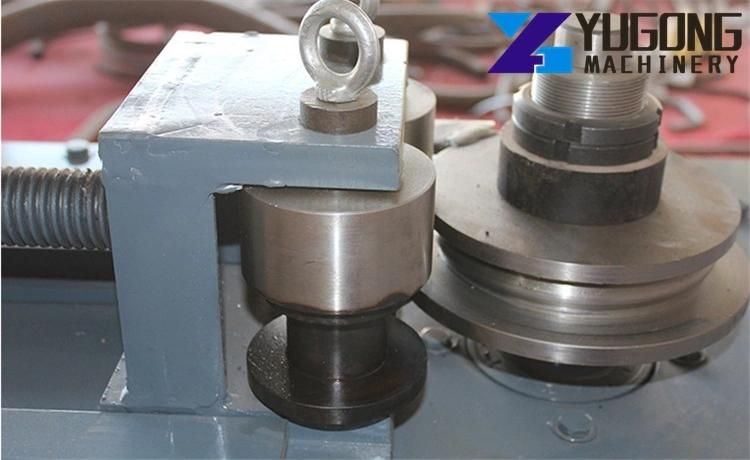

3. Abrasives are made of steel for durability

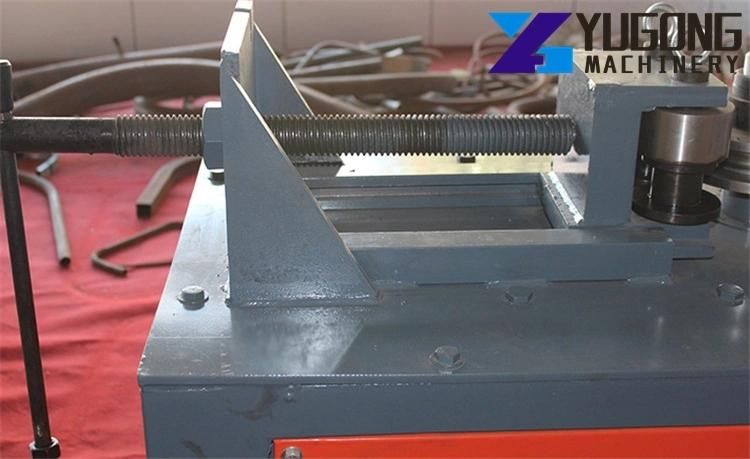

4. The pressing device can be operated by one person, and the tube is pressed tightly, which is not easy to be deformed.

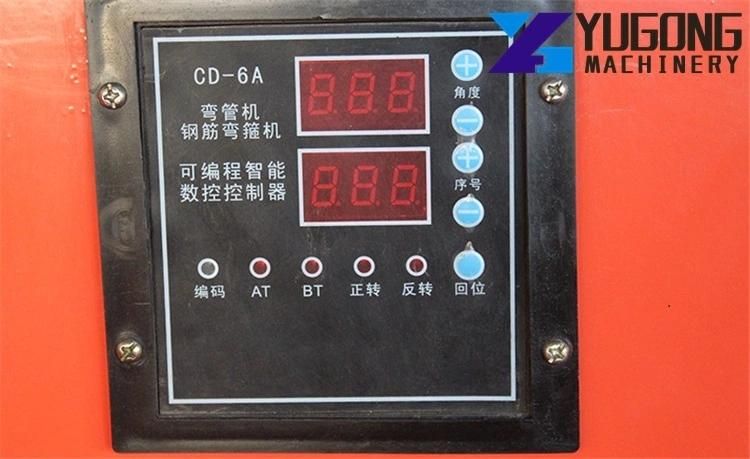

5. Intelligent numerical control chip, the angle input is digitized, and 9 sets of bending angles can be saved at the same time.
