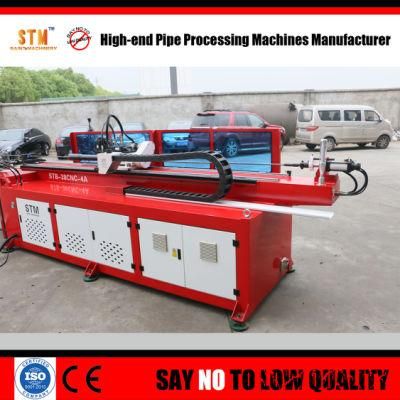

Pipe Bender with Servo Motor Driven (25CNC)
Zhangjiagang Saint Machinery Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：1-year
- Condition：New
- Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation：Automatic
- Suitable for：Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：STB-25CNC-5A-3S
- Type：Pipe and Tube Bending Machine
- Electric Axis：4 Axis
- CNC System：Mitsubishi
- Tools Stack：2 Stacks
- Transport Package：Polywood Case
- Specification：LWH: 2000x800x1400mm, GW: 800kg
- Trademark：STM
- Origin：China
- HS Code：8462219000
- Production Capacity：500
Description
Basic Info.
Model NO. STB-25CNC-5A-3S Type Pipe and Tube Bending Machine Electric Axis 4 Axis CNC System Mitsubishi Tools Stack 2 Stacks Transport Package Polywood Case Specification LWH: 2000x800x1400mm, GW: 800kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500Product Description

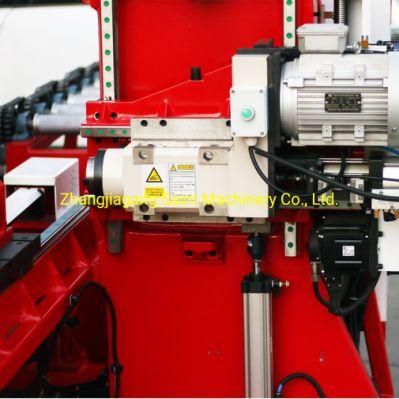

1. Bend-arm (C-axis) by AC servomotor.2. Clamp die by hydraulic; pressure die by hydraulic.
3. Carriage (Y-axis) by AC servomotor.
4. With rear booster driven by AC servomotor.

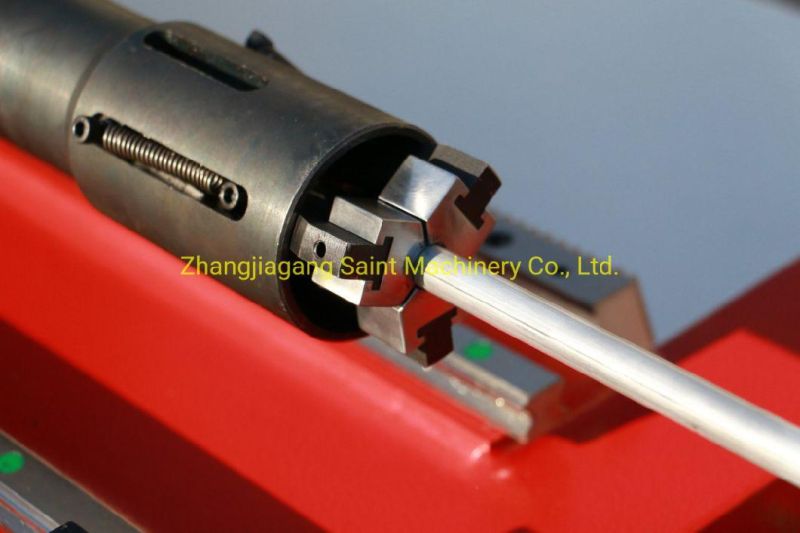

5. Collets (B-axis): rotation by AC servomotor, grip by hydraulic.
6. With roll bending function (PUSH BENDING), can make big radius by rolling.
7. Tooling shift : motion up-down by hydraulic, left-right by AC servomotor.
8. Automatic moving parts lubrication.
9. Anticipated mandrel retraction unit.

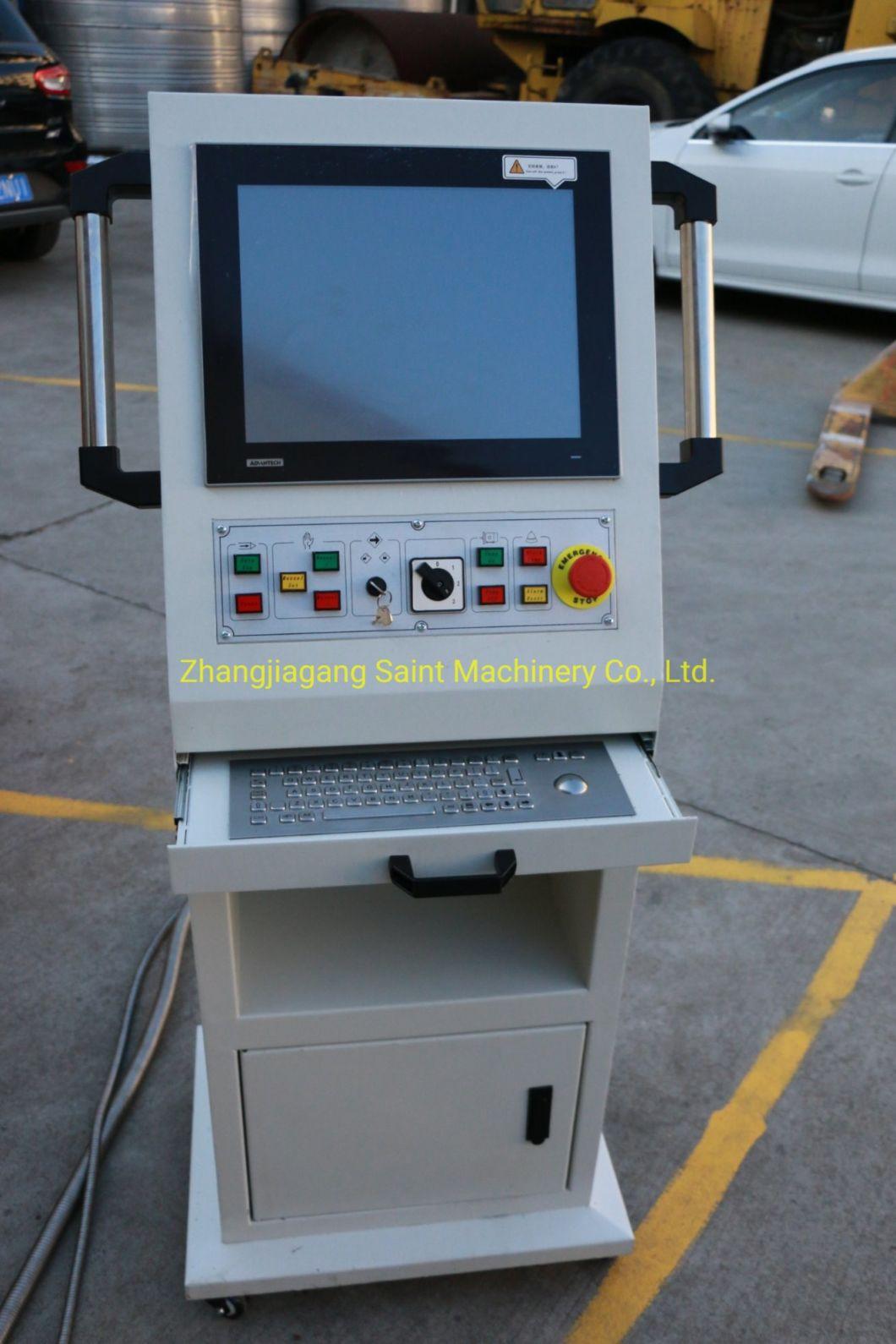

10. Standing pedestal, serves emergency stop and remote control.
11. Industrial PC (windows system) assorted with touch screen display, 3D preview, remote control (TeamViewer)
12. Optional: 3D bending simulation and collision prevention
13. Optional: auto loading and unloading system.
